This situation can be avoided if the loop is blocked with respect to the
cache size. In Figure 3-3, a
block_size is selected as the loop blocking
factor. Suppose that
block_size is 8, then the blocked chunk of each
array will be eight cache lines (32 bytes each). In the first iteration of the
inner loop,
A[0, 0:7] and B[0, 0:7] will be brought into the cache.
B[0, 0:7] will be completely consumed by the first iteration of the
outer loop. Consequently,
B[0, 0:7] will only experience one cache
miss after applying loop blocking optimization in lieu of eight misses
for the original algorithm. As illustrated in Figure 3-3, arrays
A and B are
blocked into smaller rectangular chunks so that the total size of two
blocked
A and B chunks is smaller than the cache size. This allows
maximum data reuse.

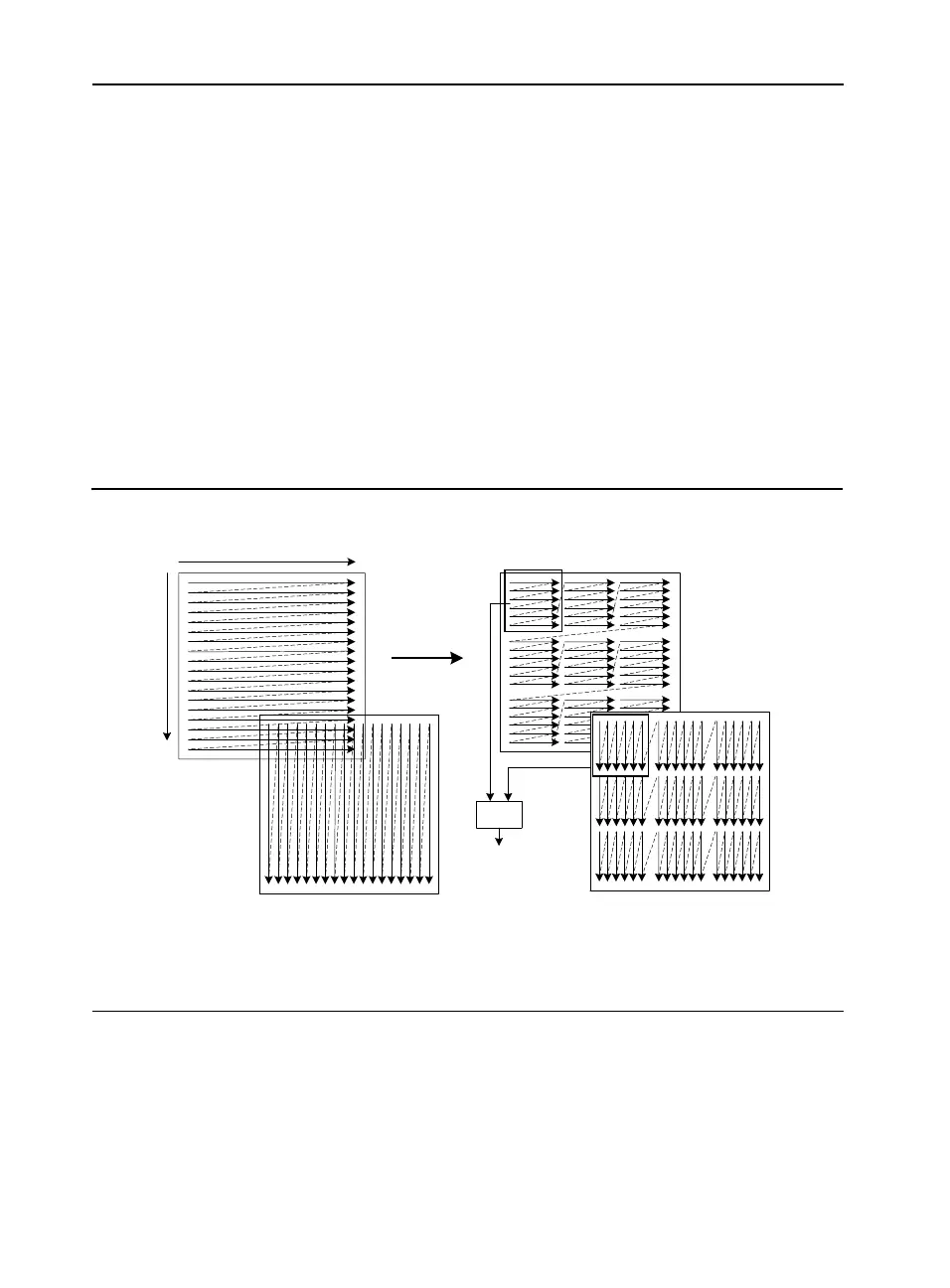

Figure 3-3 Loop Blocking Access Pattern
OM15158
A (i, j) access pattern
j
i
A(i, j) access pattern
after blocking
B(i, j) access pattern
after blocking
+
< cache size
Blocking

Intel ARCHITECTURE IA-32 Specifications

General

Instruction Set	x86
Instruction Set Type	CISC
Memory Segmentation	Supported
Operating Modes	Real mode, Protected mode, Virtual 8086 mode
Max Physical Address Size	36 bits (with PAE)
Max Virtual Address Size	32 bits
Architecture	IA-32 (Intel Architecture 32-bit)
Addressable Memory	4 GB (with Physical Address Extension up to 64 GB)
Floating Point Registers	8 x 80-bit
MMX Registers	8 x 64-bit
SSE Registers	8 x 128-bit
Registers	General-purpose registers (EAX, EBX, ECX, EDX, ESI, EDI, ESP, EBP), Segment registers (CS, DS, SS, ES, FS, GS), Instruction pointer (EIP), Flags register (EFLAGS)
Floating Point Unit	Yes (x87)
