each corresponding pair of data elements (X1 and Y1, X2 and Y2, X3
and Y3, and X4 and Y4). The results of the four parallel computations
are sorted as a set of four packed data elements.
The Pentium 4 processor further extended the SIMD computation model
with the introduction of Streaming SIMD Extensions 2 (SSE2) and
Streaming SIMD Extensions 3 (SSE3)
SSE2 works with operands in either memory or in the XMM registers.
The technology extends SIMD computations to process packed
double-precision floating-point data elements and 128-bit packed
integers. There are 144 instructions in SSE2 that operate on two packed
double-precision floating-point data elements or on 16 packed byte, 8
packed word, 4 doubleword, and 2 quadword integers.
SSE3 enhances x87, SSE and SSE2 by providing 13 instructions that
can accelerate application performance in specific areas. These include
video processing, complex arithmetics, and thread synchronization.
SSE3 complements SSE and SSE2 with instructions that process SIMD
data asymmetrically, facilitate horizontal computation, and help avoid
loading cache line splits.

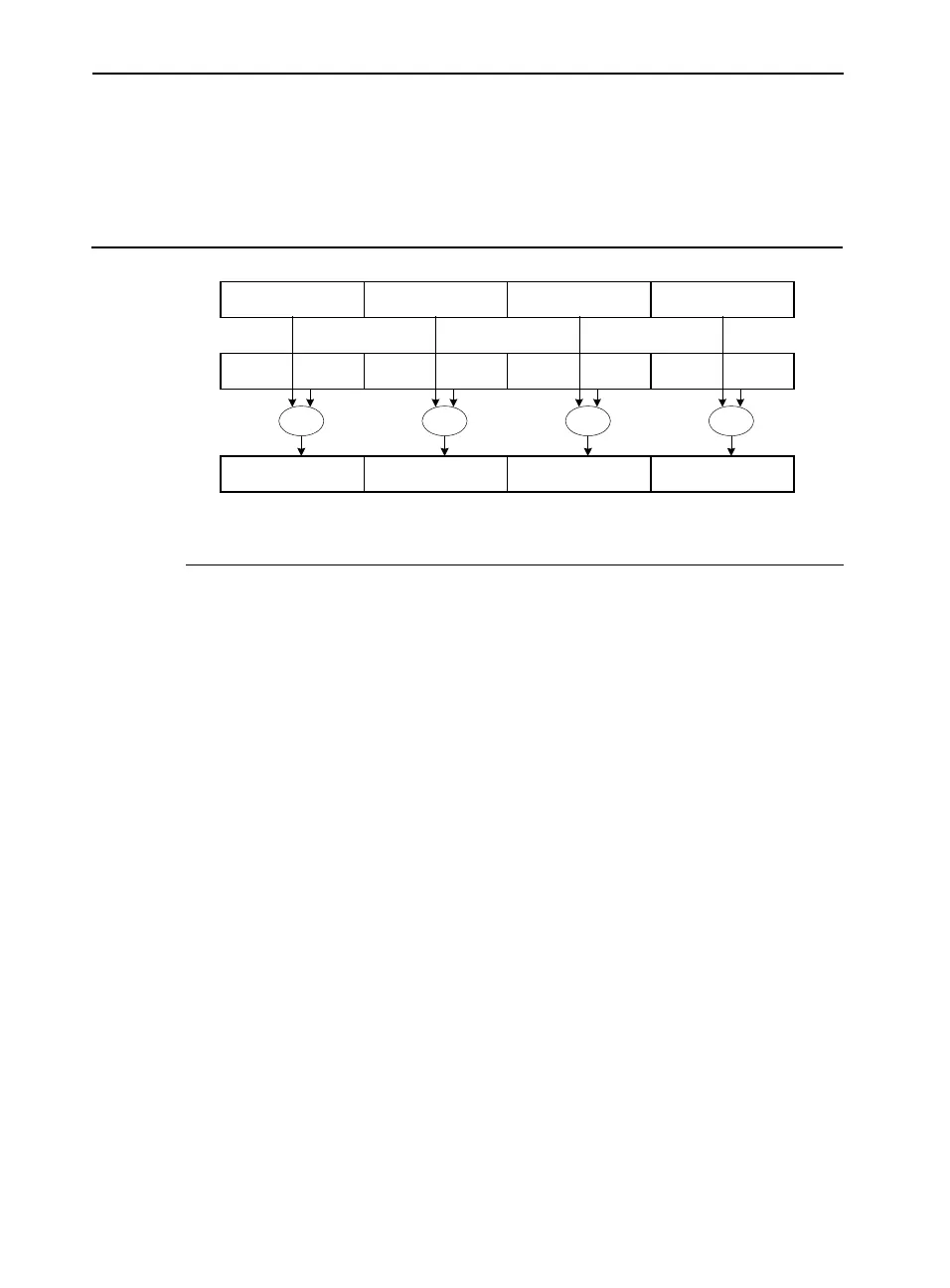

Figure 1-1 Typical SIMD Operations
X4 X3 X2 X1
Y4 Y3 Y2 Y1
X4 op Y4 X3 op Y3 X2 op Y2 X1 op Y1
OP OP OP OP
OM15148

Intel ARCHITECTURE IA-32 Specifications

General

Instruction Set	x86
Instruction Set Type	CISC
Memory Segmentation	Supported
Operating Modes	Real mode, Protected mode, Virtual 8086 mode
Max Physical Address Size	36 bits (with PAE)
Max Virtual Address Size	32 bits
Architecture	IA-32 (Intel Architecture 32-bit)
Addressable Memory	4 GB (with Physical Address Extension up to 64 GB)
Floating Point Registers	8 x 80-bit
MMX Registers	8 x 64-bit
SSE Registers	8 x 128-bit
Registers	General-purpose registers (EAX, EBX, ECX, EDX, ESI, EDI, ESP, EBP), Segment registers (CS, DS, SS, ES, FS, GS), Instruction pointer (EIP), Flags register (EFLAGS)
Floating Point Unit	Yes (x87)
