Mixer : Mix !
10 - 204

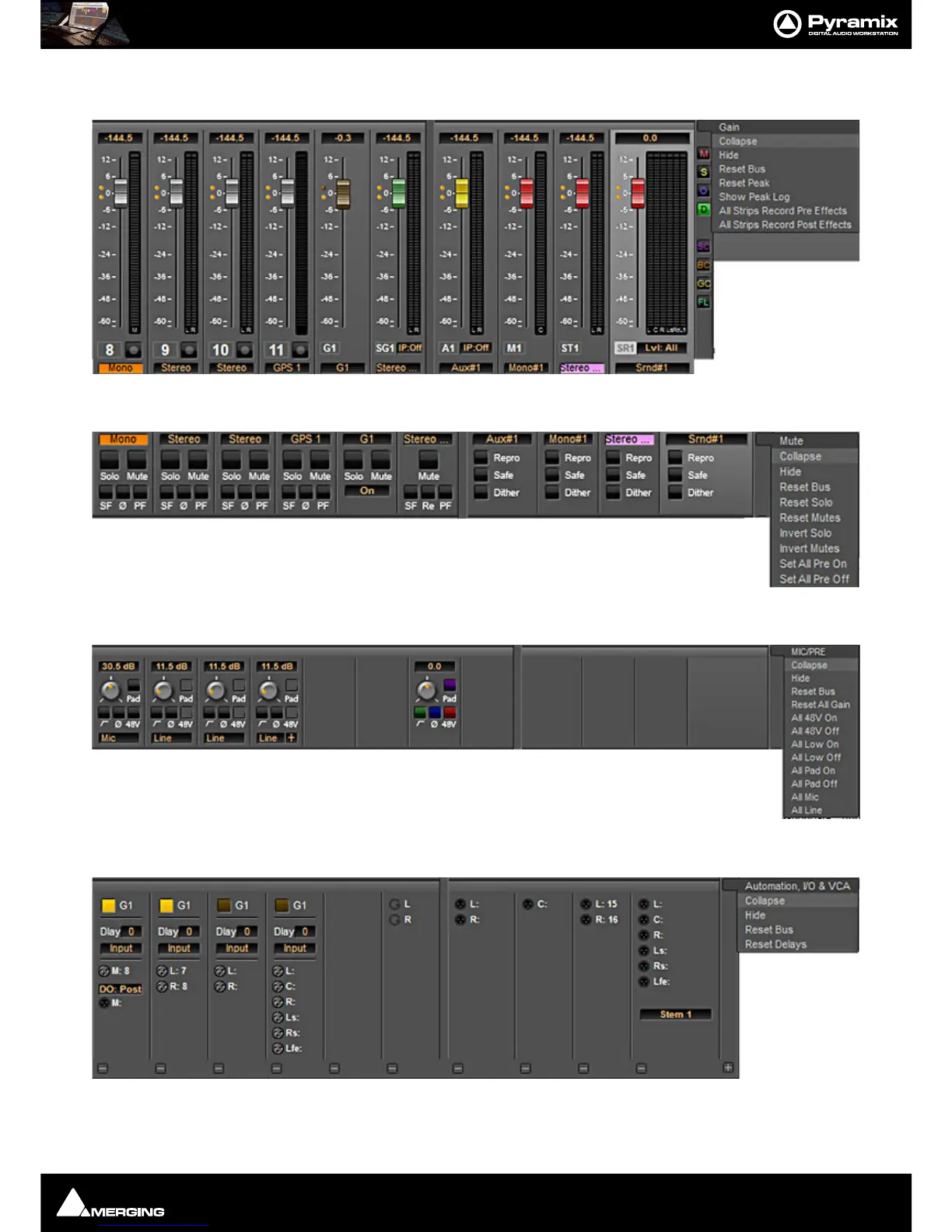

Gain
The Gain section includes the Fader and Record Arm button/indicator (on applica-
ble strips).
Mute The Mute row includes the Mute and Solo buttons along with Solo Safe, Phase
revers and Pre-fade.
Mic Pre Only present in a system including a HORUS or Hapi with an A to D card installed.
Includes all the controls necessary to set source type, gain, phantom powering etc.
Automation, I/O & VCA This row is modal. When collapsed it shows two Automation buttons per strip.
When expanded it shows the I/O and VCA Group assignments.
