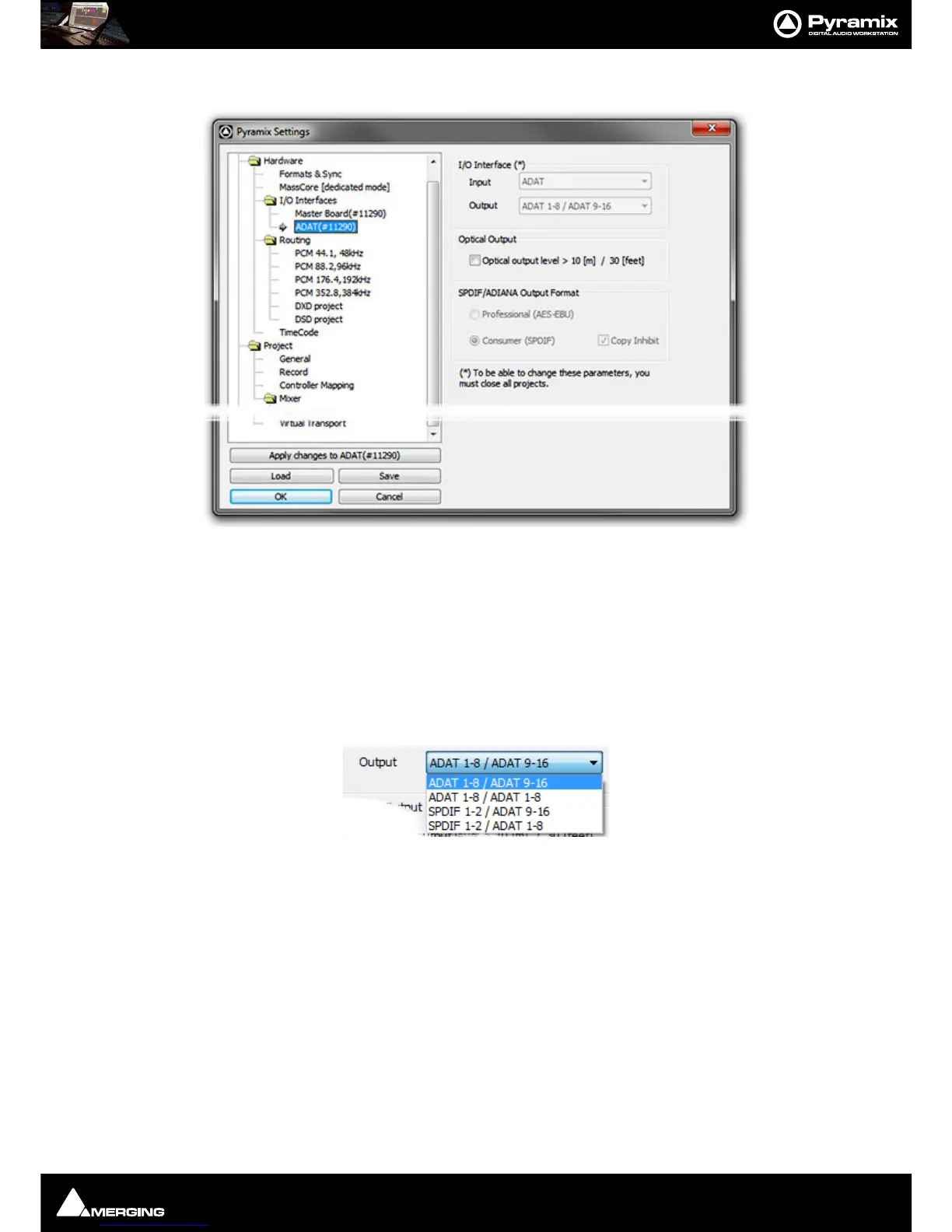

ADAT Board Settings
Note: These settings can only be changed when all projects are closed. The page will warn of this
if any projects are open.
I/O Interface
Input
Offers the choice between ADAT and SPDIF
Output
Offers choices of output format:
ADAT 1-8 / ADAT 9/16: Channels 1-8 on optical A and channels 9-16 on optical B.
ADAT 1-8 / ADAT 1-8: Channels 1-8 on both optical A and B.
SPDIF 1-2 / ADAT 1-8: (Standalone mode only) Channels 1-2 on optical A, in SPDIF format and channels 1-8 on opti-
cal B.
SPDIF 1-2 / ADAT 9-16: (Standalone mode only) Channels 1-2 on optical A, in SPDIF format and channels 9-16 on
optical B
Optical Output
Check the Optical output level box if the fibre-optic cables are in excess of 10[m] / 30 [feet] in length.
SPDIF/ADIANA Output Format
The radio buttons set the Professional / Consumer flag and the check-box sets the Copy Inhibit flag when SPDIF
is the selected output format.
