Effects and Plug-Ins : External Effects
14 - 362
External Effects
Any Pyramix Bus except sub-groups can be routed to any physical output. Thus, an Aux can be routed via a physi-
cal output to an external effect. The output of the external effect is simply brought back into Pyramix via one of
the physical inputs. However, a delay will be introduced by the external processor and the converters. If the return
needs to be time-aligned with other signals please see:
Mixer Delay Compensation on page 241
External Insert
To add an External Insert simply right-click over the strip where the plug-in is to be added and choose: VS3 Effects
> Add > Other > External Insert

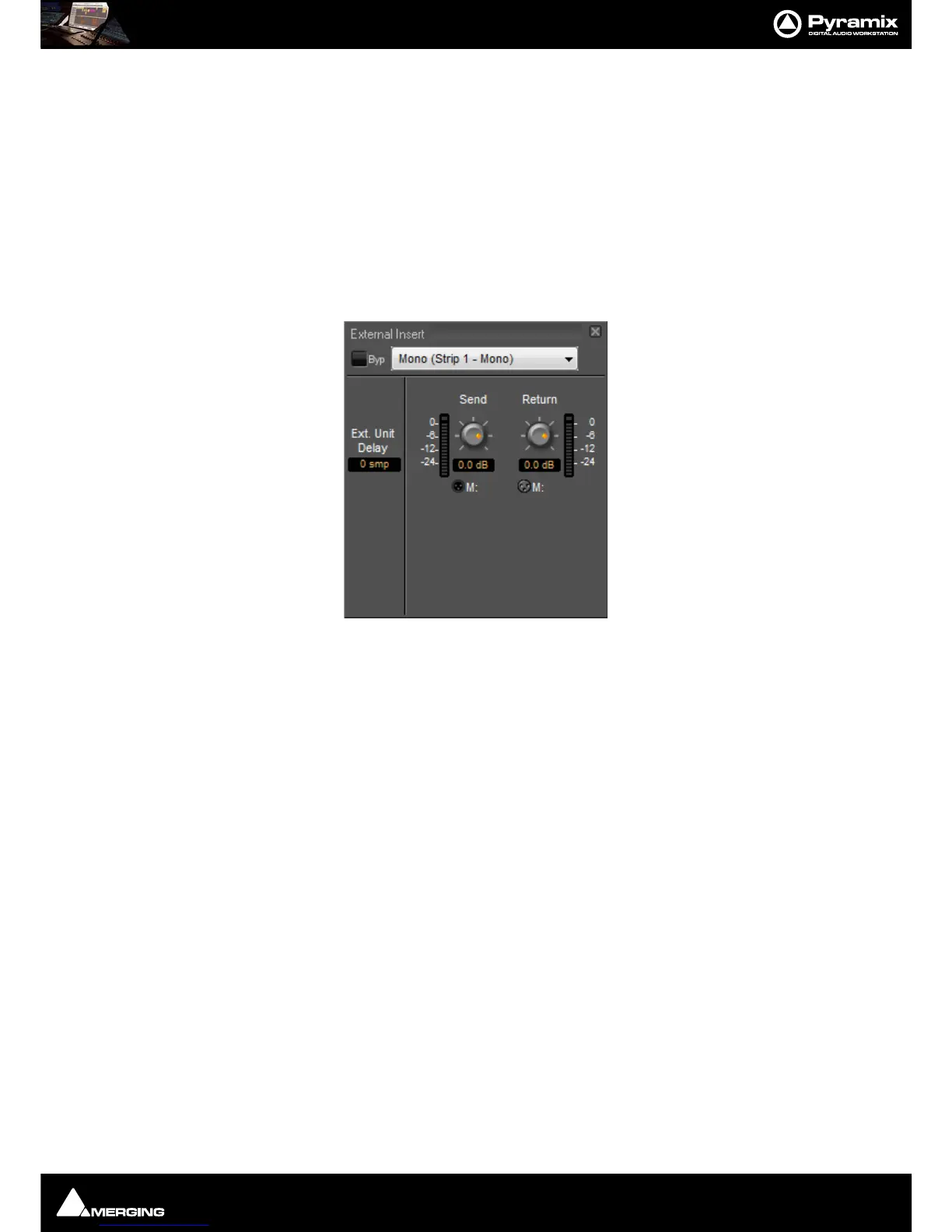

Clicking on the External Input name in the strip opens the External Insert Control Window.
Send and Return Connections can be made by clicking on the XLR icons and levels set with the knobs. When you
have determined the delay introduced by the I/O loop including the external effect the value in samples should be
entered in the
Ext. Unit Delay field.
