Settings : I/O Interfaces
28 - 650
Mic/Line
On inputs 1 and 2 you can also enable the Mic preamp by ticking the box. When selected the buttons
below allow
48V phantom power to be enabled and additional gain added for 0dB, +20dB or +40dB
Output gain (dB)
A gain setting of from -24dB to 0dB can be selected for each of the four analog outputs. Each channel is also
equipped with a
Mute check box.

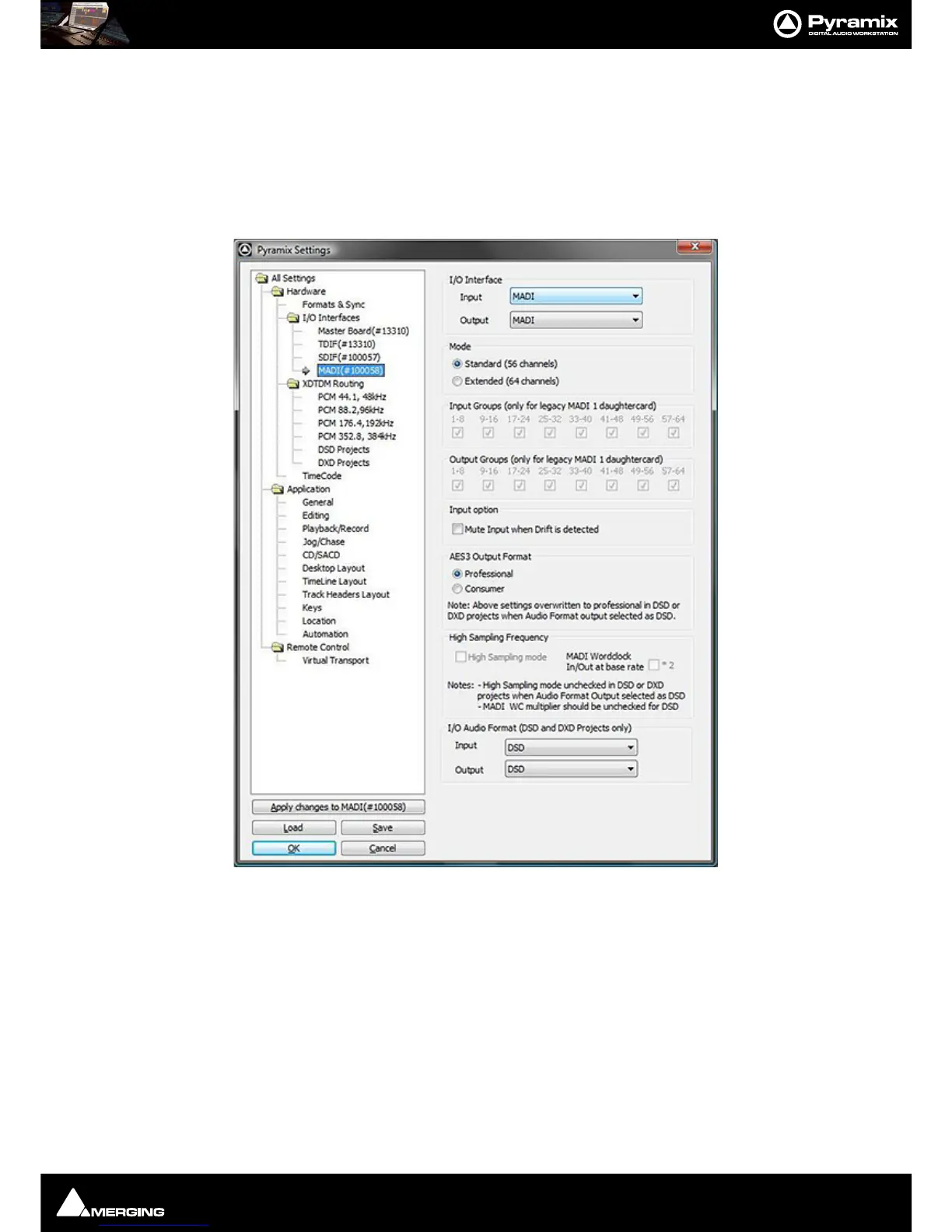

MADI Board Settings
I/O Interface
Input
Output
Select MADI from the drop-down lists (if not already selected)
Mode
Standard (56 channels)
Extended (64 channels)
Choose the mode appropriate for the external device you are connecting.
Note: To change this setting all Projects must be closed
To Next Page
