Settings : I/O Interfaces
28 - 655
Routing
Note: For systems using HORUS or HAPI please see the respective User Guides.
Where the routing is user selectable, independent routing assignments can be made for 1fs, 2fs, 4fs and 8fs sam-
ple rates.
Routing Physical I/O to Logical I/O
Routing can only be undertaken when there are no projects open.
Reset removes all patching
Autoroute connects all available inputs and outputs in ascending order.
Note: MassCore routing is currently automatic only and there is no need (and no means) to set
the required number of Internal Buses
AES/EBU
When an AES/EBU daughter-card is present, this routing page takes account of the HighSamplingRate setting
(from the
AES/EBU (# ’card number’) page) to enable you to route 12 AES channels or 24 for the corresponding
daughtercard.

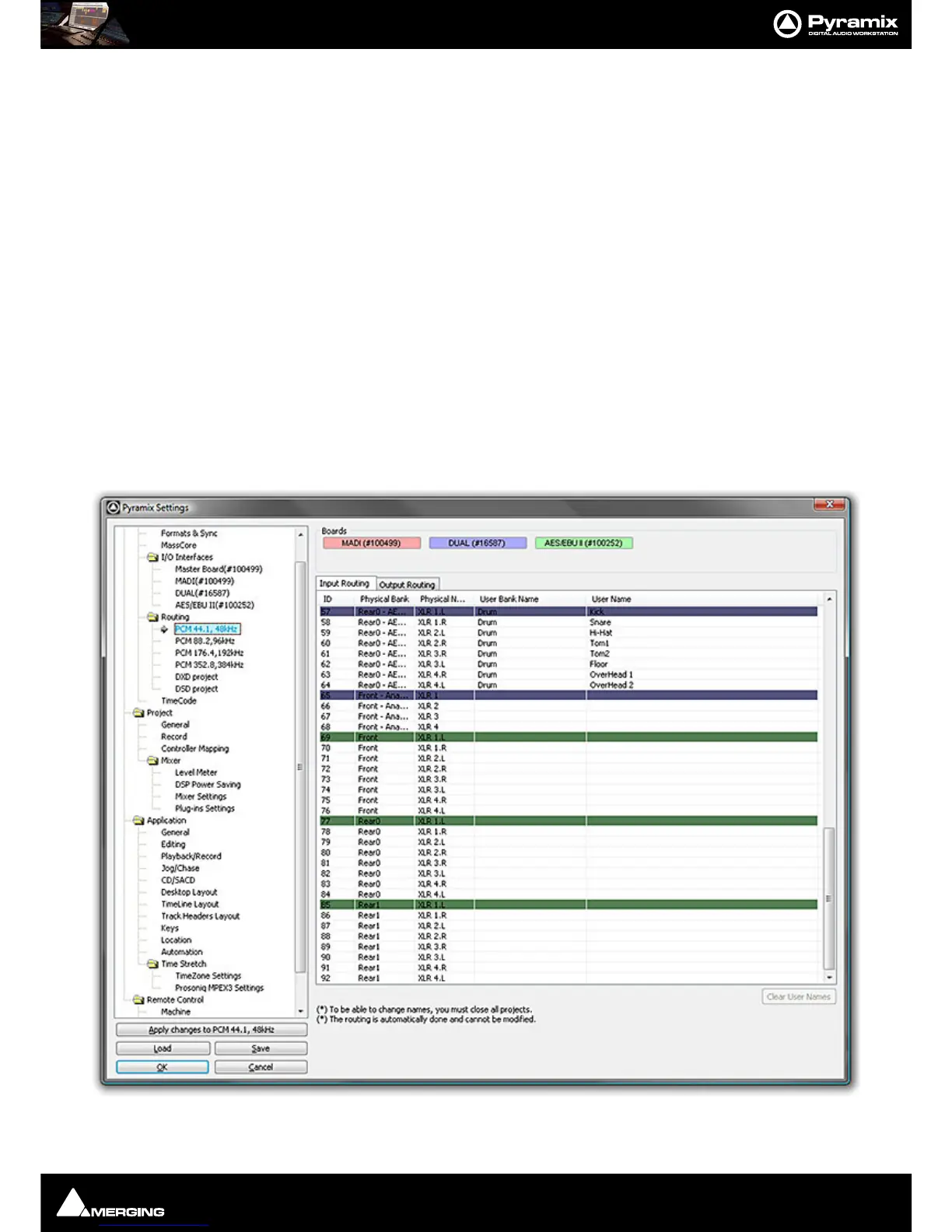

Routing Page
