Settings : I/O Interfaces
28 - 645
I/O Interfaces
Note: For HORUS and HAPI please see their respective User Guides.
Mykerinos
Master Board(#Serial No.)

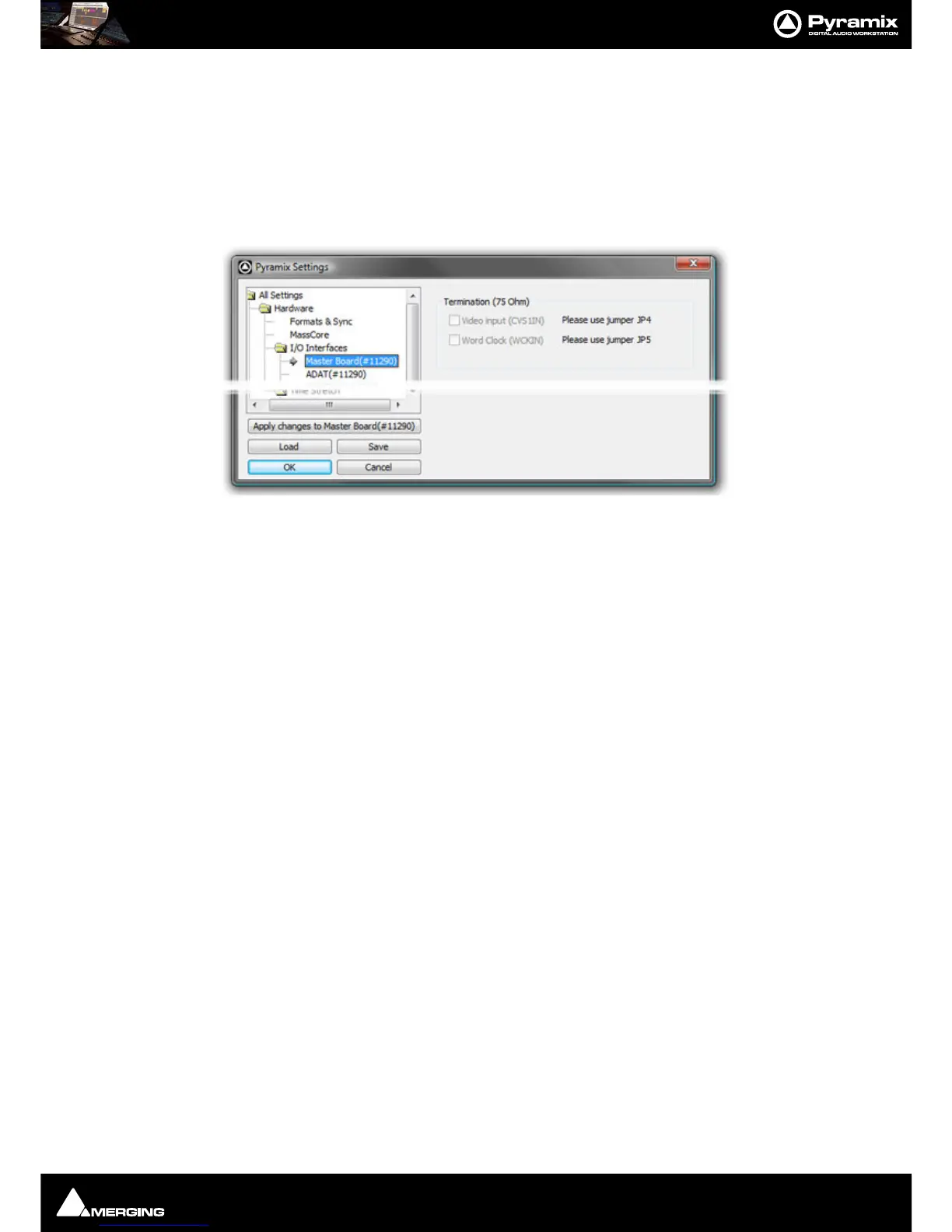

Termination
Video Input (CVS1IN)Please use jumper JP4
Word Clock (WCKIN)Please use jumper JP5
Applicable only to Mykerinos X boards otherwise grayed out. Offers a choice between Video and Word Clock sync
input in conjunction with the board jumpers
JP4 and JP5 (Please see Mykerinos X manual for full details)
Board(#Serial No.)
(Mykerinos Daughter Card Settings)
These settings provide hardware specific configuration for the currently installed Mykerinos daughter card(s).
Please see also the documentation supplied with the card.
Note: There will be separate entries under I/O Interfaces for each board installed and On-Line
(As selected in the VS-3 Control Panel)
