Machine Control : Transport Control Panel
22 - 506
Internal / External Machine panels - Features

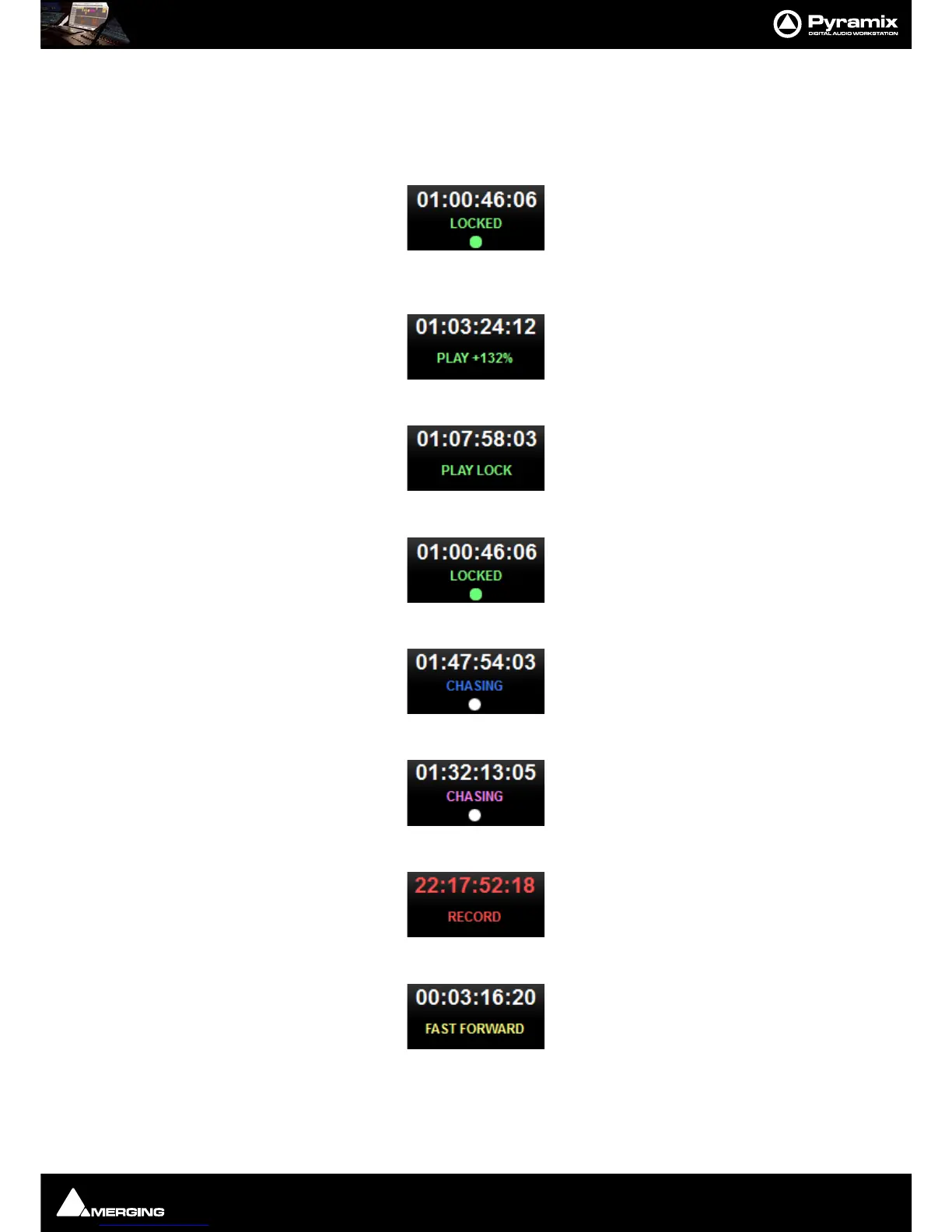

Main Counter
In each machine panel the main counter shows the machine’s current position and status of Transport and Record.
The
Master machine shows Play in green when running at sync speed:
The Master machine in jog or shuttle shows
Play and the + or - percentage off sync speed or Play Still when sta-
tionary. If the speed exceeds 200% then
Rewind or Fast Forward is shown in yellow :
An External Machine shows
Play Lock in green when it is master and at sync speed:
An External Machine shows
Locked in green when it is locked at sync speed:
A machine chasing shows
Chase in blue:
If an offset is applied the status display and TimeCode registers are purple:
A machine in record shows
Record in red and the main counter also turns red:
A machine in
Fast Forward or Rewind shows this in yellow:
