Appendices : Appendix II Legacy Mykerinos I/O Daughter-card Options
30 - 728
At 8FS (DXD/DSD), the AES II daughter card has a special mode that is enabled by selecting 8FS to nFS in the
Speed on physical wire field of the I/O interface page. This mode provides a fixed set of 2 input and 2 output
paths and enables a real-time conversion from 384kHz/352.8kHz down to 192kHz/44.1kHz and vice-versa. Only
XLRs 1/2 and 3/4 are used in this mode. For the outputs, the reference input for the sampling frequency is select-
able in the "Sampling Rate Converters" array.

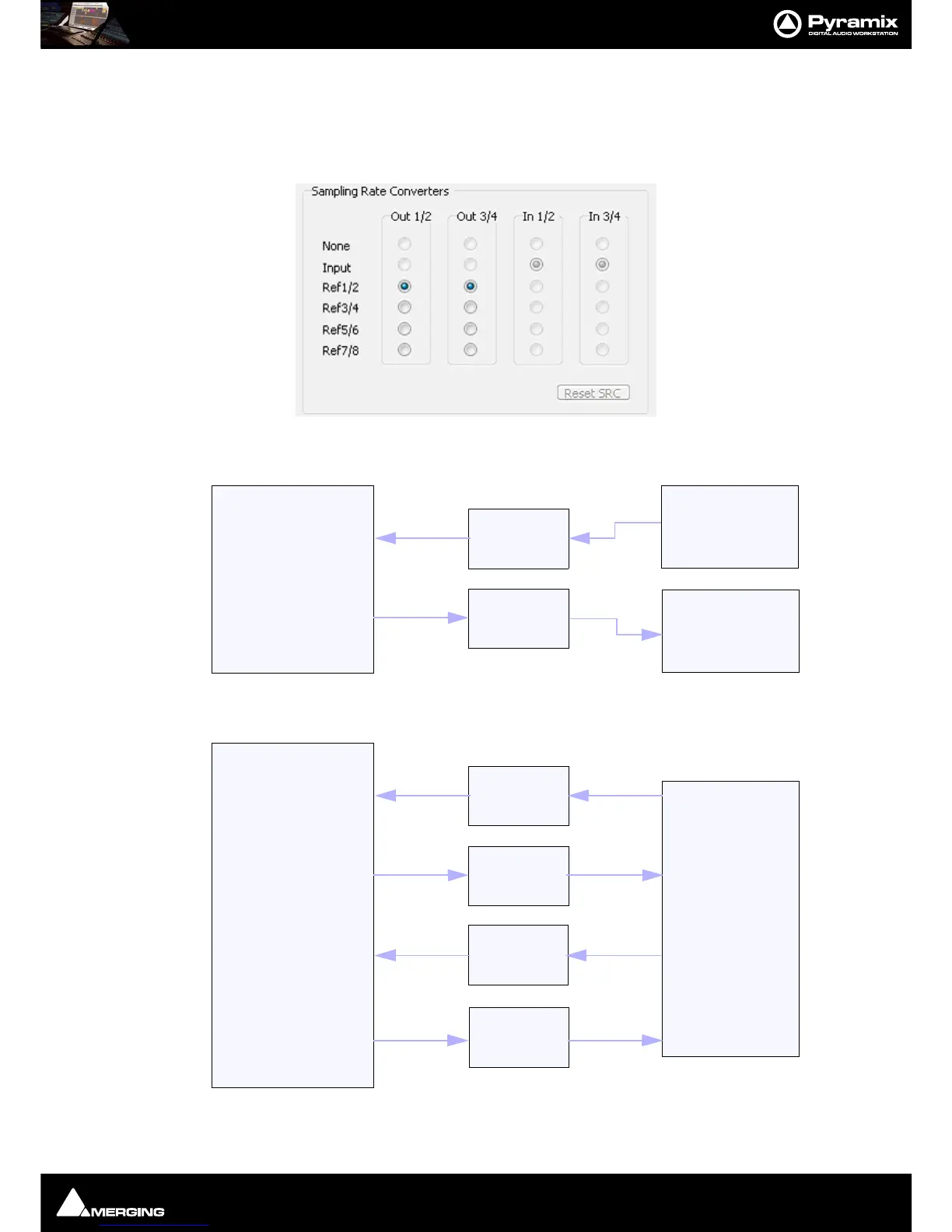

Examples
Example 1: 2 channels up sampling from 48 kHz to 192 kHz and down sampling from 192 kHz to 48 kHz.
Example 2: 4 channels 96 kHz effect insert in a DXD project.
AES II Settings
Project @ 192kHz
AES II SRC
Sync: Internal
Speed on physical wire:
192kHz
SRC 1/2
Setting: Input
SRC 3/4
Setting: Ref 1/2
ADC
48kHz
Sync: Internal
DAC
48kHz
Sync: Audio
input
XLR 3/4
XLR 1/2
DXD Project
AES II SRC
Sync: Internal
Speed on physical wire:
8FS to nFS
SRC In 1
Setting: Input
SRC Out 1
Setting: Ref 1/2
Effect Box
96kHz
Sync: Internal
XLR 3/4
XLR 1/2
SRC In 2
Setting: Input
SRC Out 2
Setting: Input
XLR 3/4
XLR 1/2
