Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-105
Service Parts Disassembly

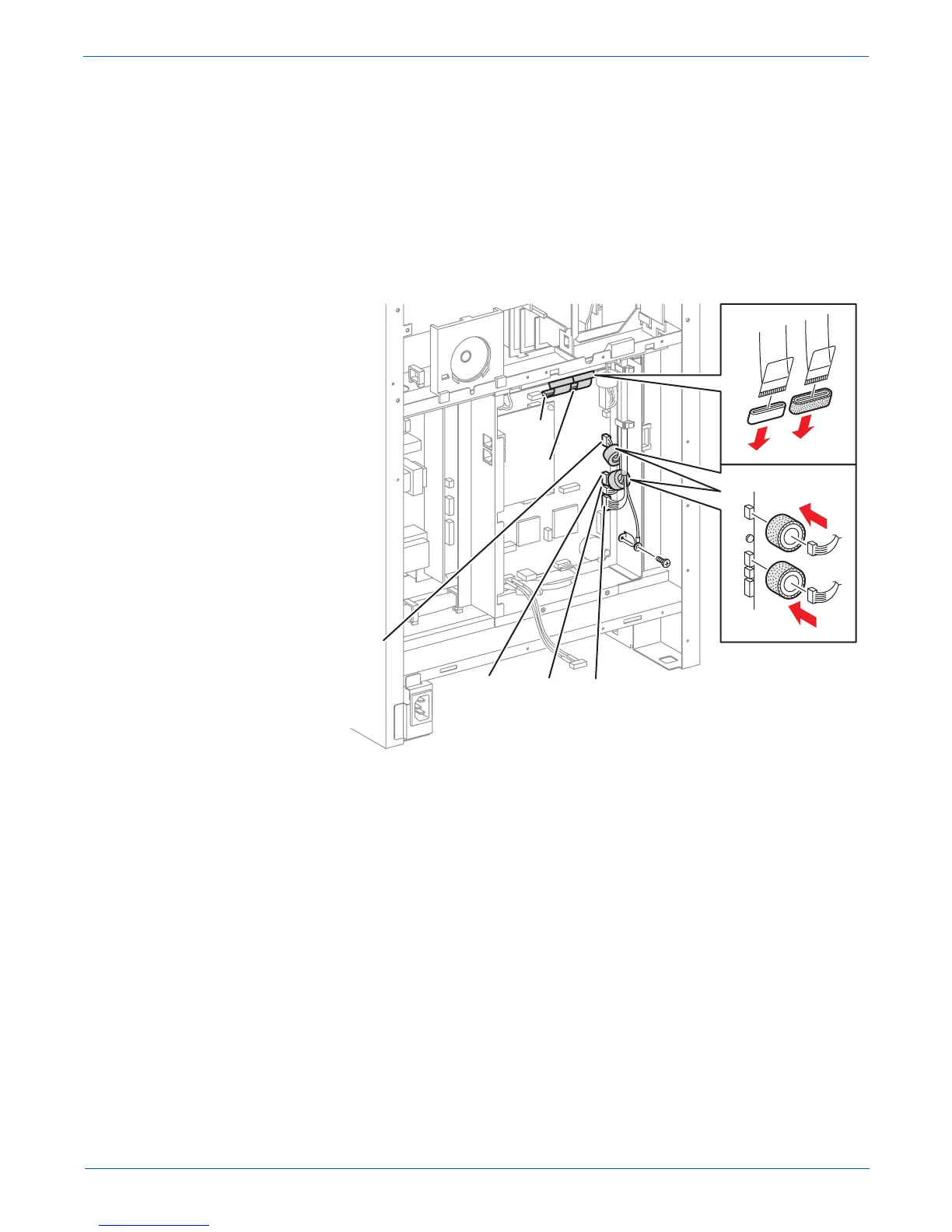

14. Disconnect the ADF Scanner Assembly connectors and cables from the
Scanner Controller Board (PL9.1.1).
■ 6 connectors: P/J50, P/J52, P/J60, P/J61, P/J62, P/J63
■ 2 flat cables: P/J64, P/J65
15. Remove 1 screw (6 mm) securing the ADF Scanner Assembly ground
wire to the Fax Shield Box Assembly (PL9.1.4).
16. Remove the FCR27-12-1.3 Core (PL11.1.14) and the FCR27 Core
(PL11.1.13) from the 2 flat cables.
17. Remove the two SC-18 Core Assemblies (PL11.1.15) on the connectors
J62 and J63.
s6180mfp-356
P/J64
P/J65
P/J61 P/J60
P/J63
P/J62
Core Assemblies
Cores
