8-106 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

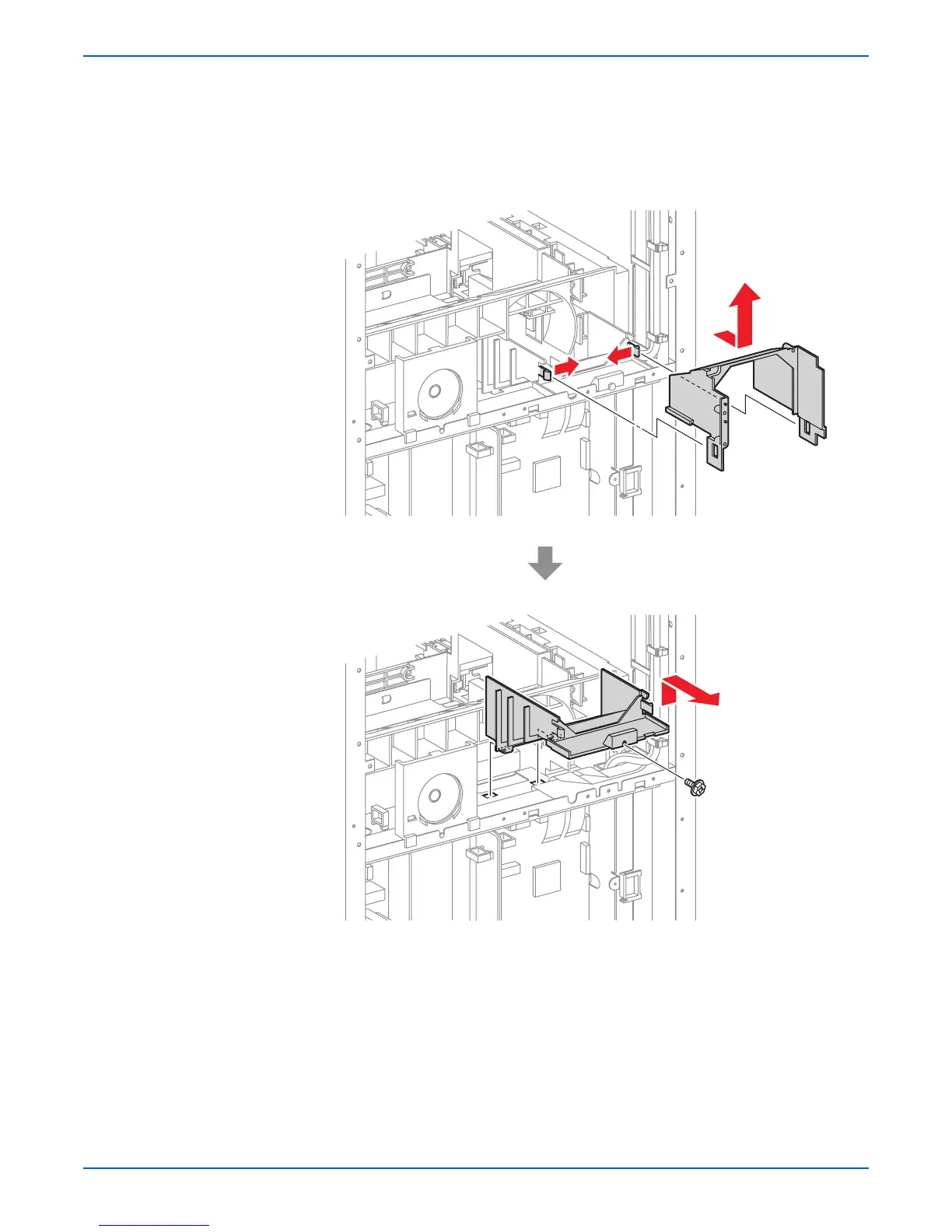

18. Use a flat tip screwdriver to release the 2 hooks from the inside of the
Lower Duct (PL9.2.8) and slide the Upper Duct back and upward to
remove it.
19. Remove 1 screw (6 mm) securing the Lower Duct to the printer.
20. Release the 2 hooks on the bottom of the Lower Duct from the holes of
the printer and remove the Lower Duct.
s6180mfp-295
