Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-107
Service Parts Disassembly

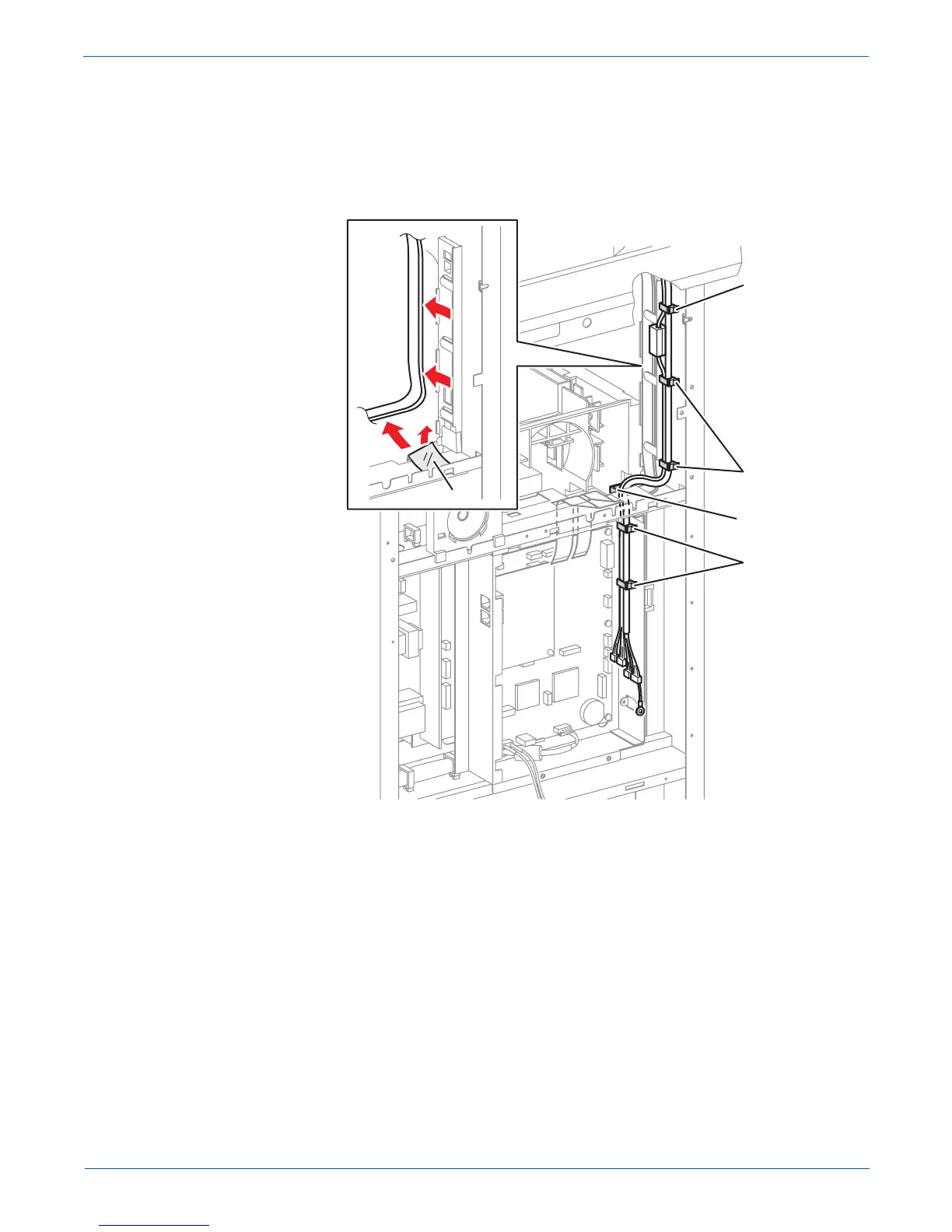

21. Release the ADF Scanner Assembly wiring harness from the 6 Clamps
and pull it out of the slot on the Fax Plate Assembly (PL9.1.5).
22. Release the 2 hooks on the SFT-25SN Core (PL11.1.12) and remove the
Core from the wiring harness.
23. Release the 2 flat cables from underneath the Film.
24. Release the 2 flat cables from the FFC Spacer Assembly (PL5.1.14).
Clamp
Clamp
Clamps
Clamps
s6180mfp-357
Film

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
