Xerox Phaser 6180MFP Service Manual

8-108 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

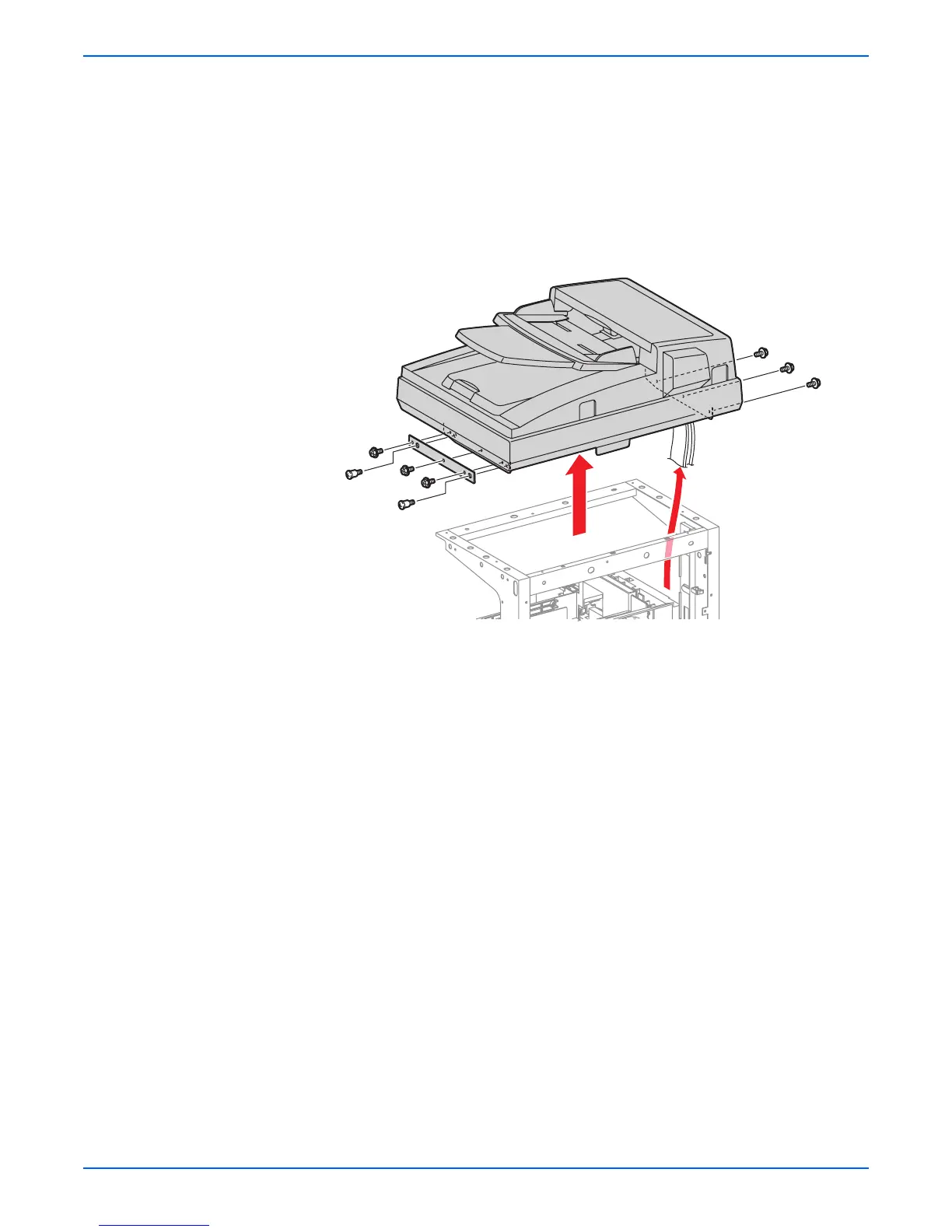

25. Remove 6 screws (6 mm, flanged) securing the ADF Scanner Assembly
to the printer.
26. Remove 2 screws securing the Sub Plate (PL11.1.8) to the ADF Scanner
Assembly.
Caution
When performing the following step, be sure that wiring harness of the
ADF Scanner Assembly is not caught inside the printer.
27. Slowly lift the ADF Scanner Assembly to remove it.
s6180mfp-358

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
