DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS

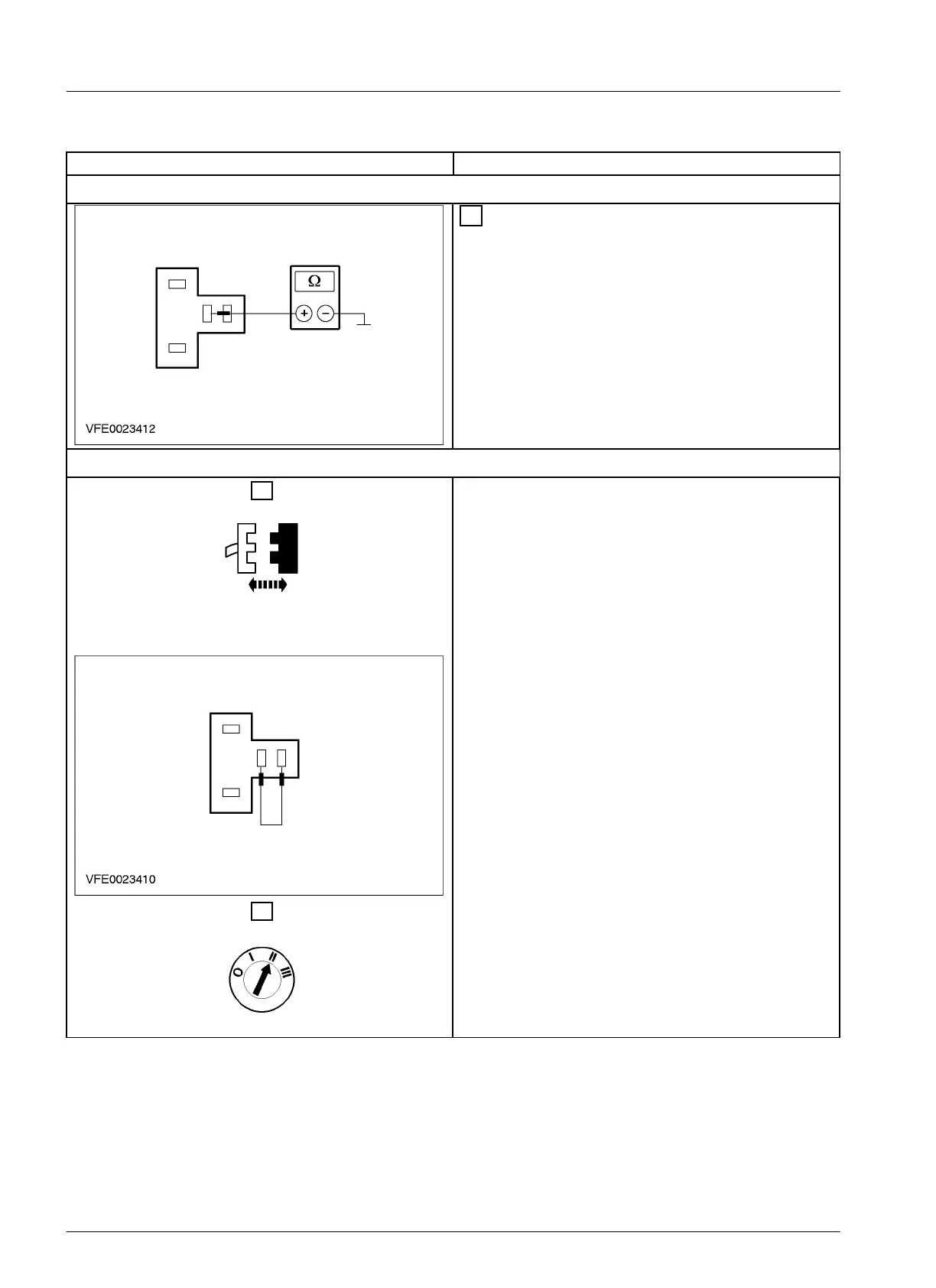

B15: CHECK THE GROUND SUPPLY OF THE RELAY – A/C SWITCH
1 Measure the resistance between relay socket –
A/C switch, connector C19, pin 3, circuit 31-
CA66B (BK) and ground.
• Is the resistance less than 2 ohms?
Yes
GO TO B16
No
REPAIR the open circuit(s) between relay –
A/C switch and ground G6 by using the wir-
ing diagrams. TEST the system for normal
operation.
B16: CHECK THE RELA – A/C SWITCH Y
1.
Relay – A/C
W.O.T C18
3.
E9425 EN 07/2001 2002 Bantam
