303
-
08B
-
218
Engine Emission Control
—
Diesel Engine
303
-
08B
-
218
REMOVAL AND INSTALLATION
E6363 EN
09/2001 2002 Bantam
Exhaust Gas Re
-
circulation (EGR) Valve (23
312
0)

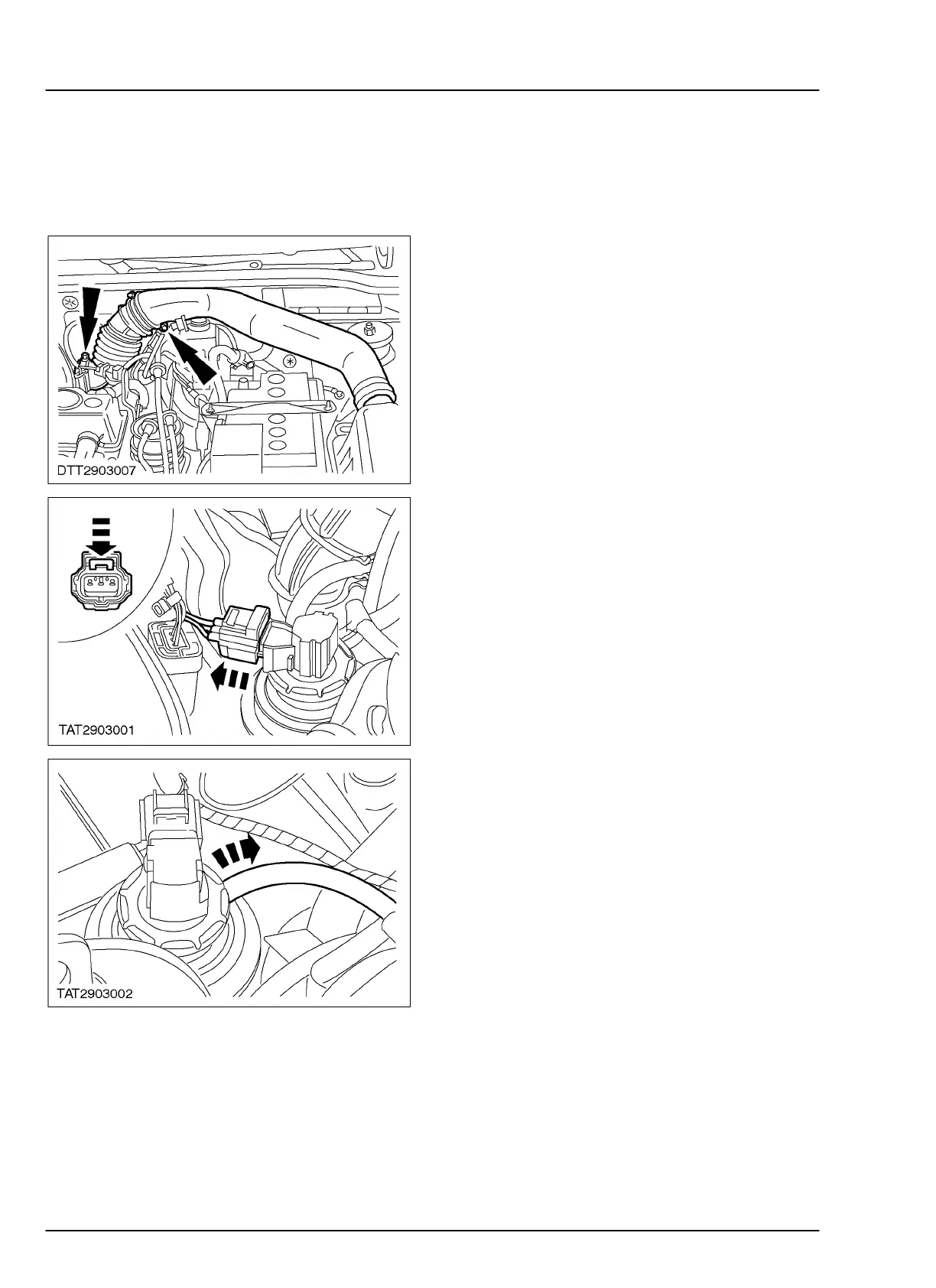

Removal
1.
Remove the air intake pipe (two clips).
2.
Disconnect the exhaust gas re
-
circulation
valve lift sensor multiplug.
3.
Disconnect the vacuum pipe from the
exhaust gas re
-
cir
culation valve.
721
723
