501-11-31 Glass, Frames and Mechanisms 501-11-31
GENERAL PROCEDURES
Door Window Glass Adjustment (42 001 0)
Adjustment

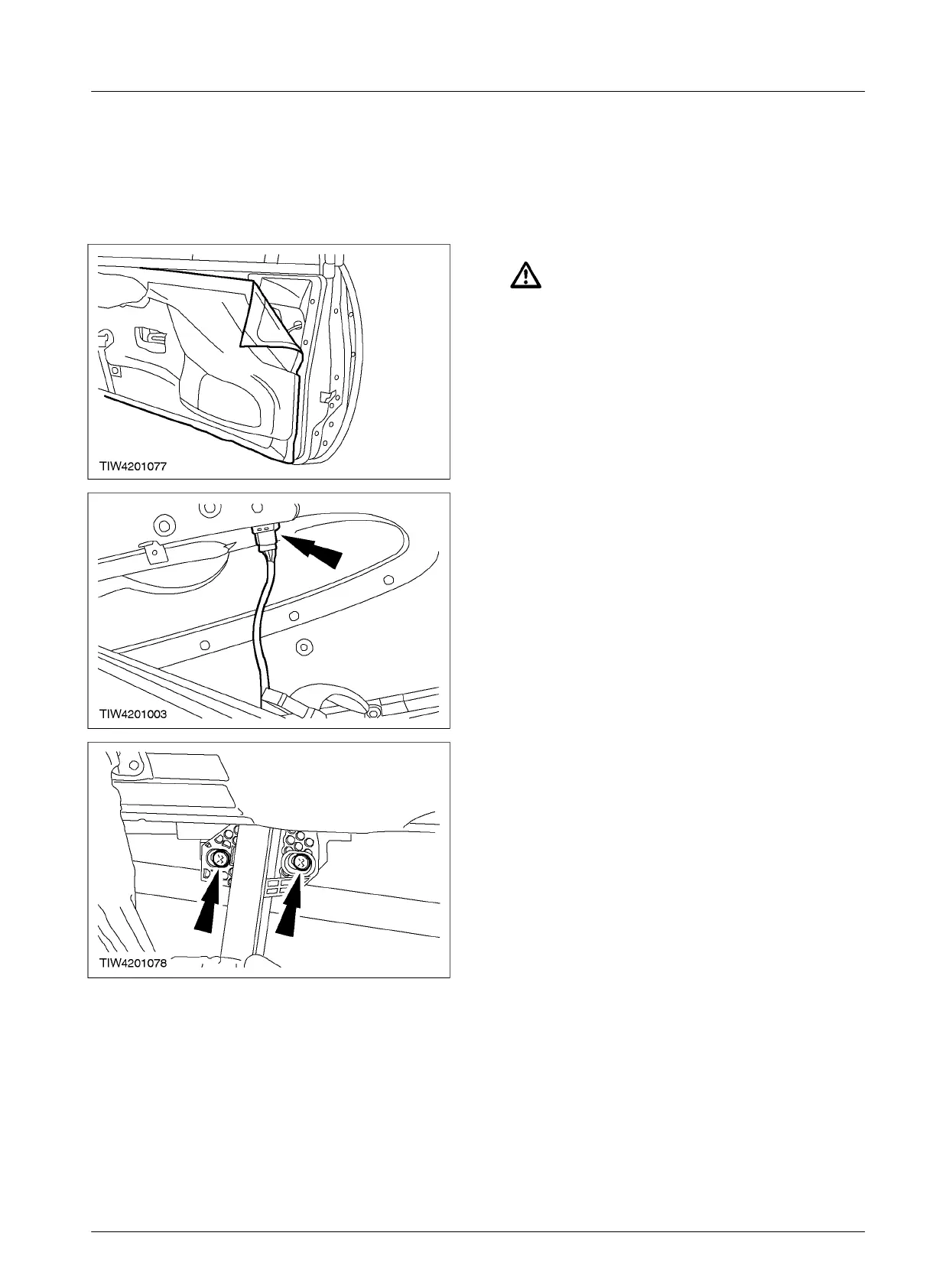

1. Remove the door trim panel. For additional
information, refer to Section 501-05.
2.
CAUTION: Do not touch the adhesive
surface, as re-bonding will be
impaired.
Detach the door panel watershield.
• Using a plastic knife (disposable cutlery),
cut through the Butyl strip to enable the
watershield to be peeled back.
3. Connect the window operating switch
electrical connector.
4. Loosen the window glass clamp retaining
screws.
• Align the retaining screws with the
access hole.
E899 EN 08/2001 2002 Bantam
