501-11-30
Glass, Frames and Mechanisms
501-11-30

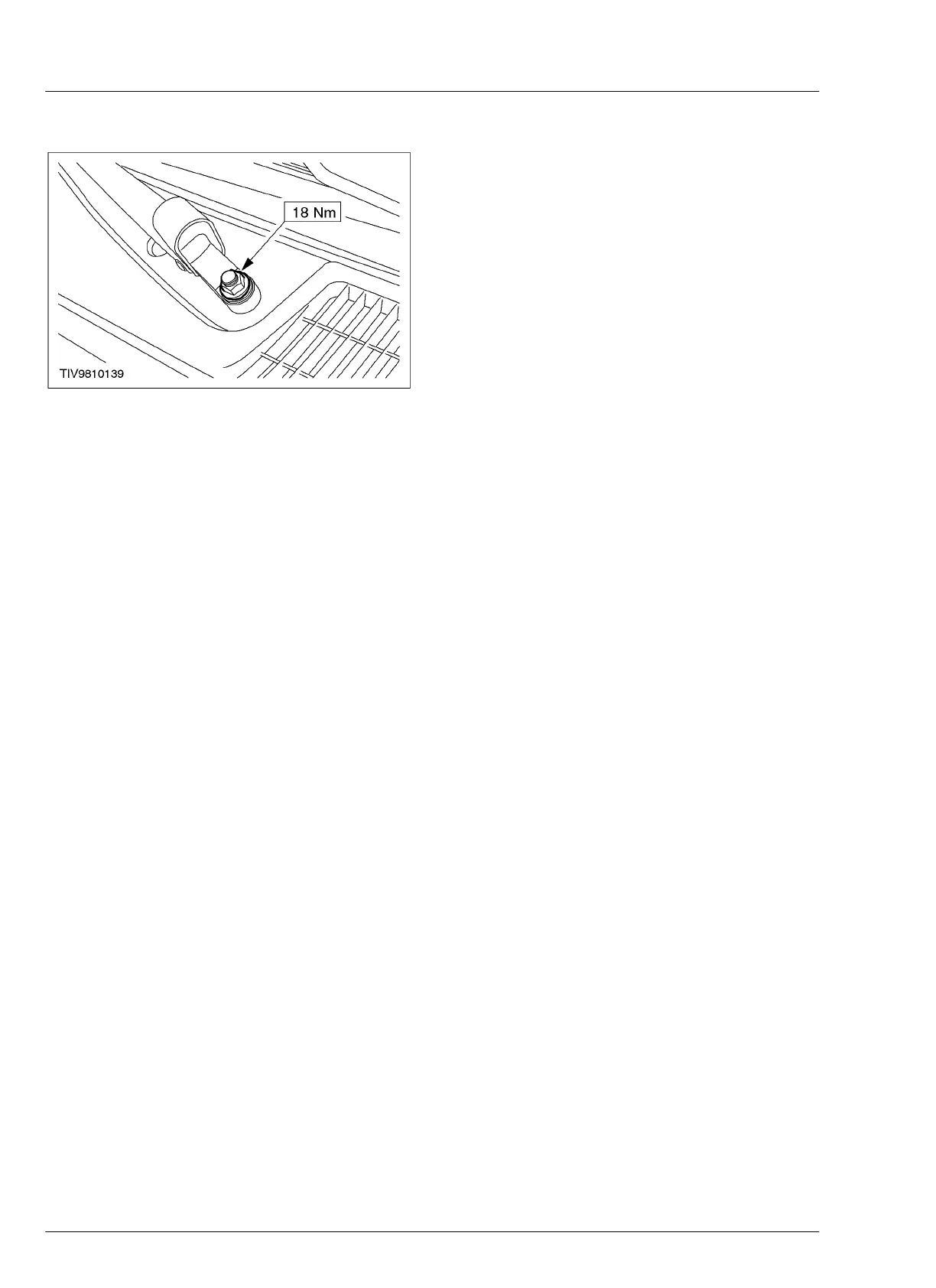

REMOVAL AND INSTALLATION (
CONTINUED
)
18.
Install the windshield wipers.
19.
Lower the hood.
20.
Connect the battery ground cable. For
additional i
n
formation,
refer to Section 414-
01.
E6783 EN
08/2001 2002 Bantam
