308-03-46 Manual Transaxle 308-03-46
DESCRIPTION AND OPERATION (CONTINUED)
E4460 EN 07/2001
The transmission and differential are located
inside an aluminum two part housing, which is
connected to the engine by a flange.
The input shafts are splined.
Driving torque is transferred to the differential
cage by the crown wheel, which is bolted to it.
Inside the differential housing are the differential
pinions, which are located on a spindle, and the
drive halfshaft pinions, which are connected to
the front, drive halfshafts by splines.
When there is a speed difference between the
two front wheels (for instance when driving
through a curve), the front drive halfshaft pinions
are able to turn on the differential pinions.

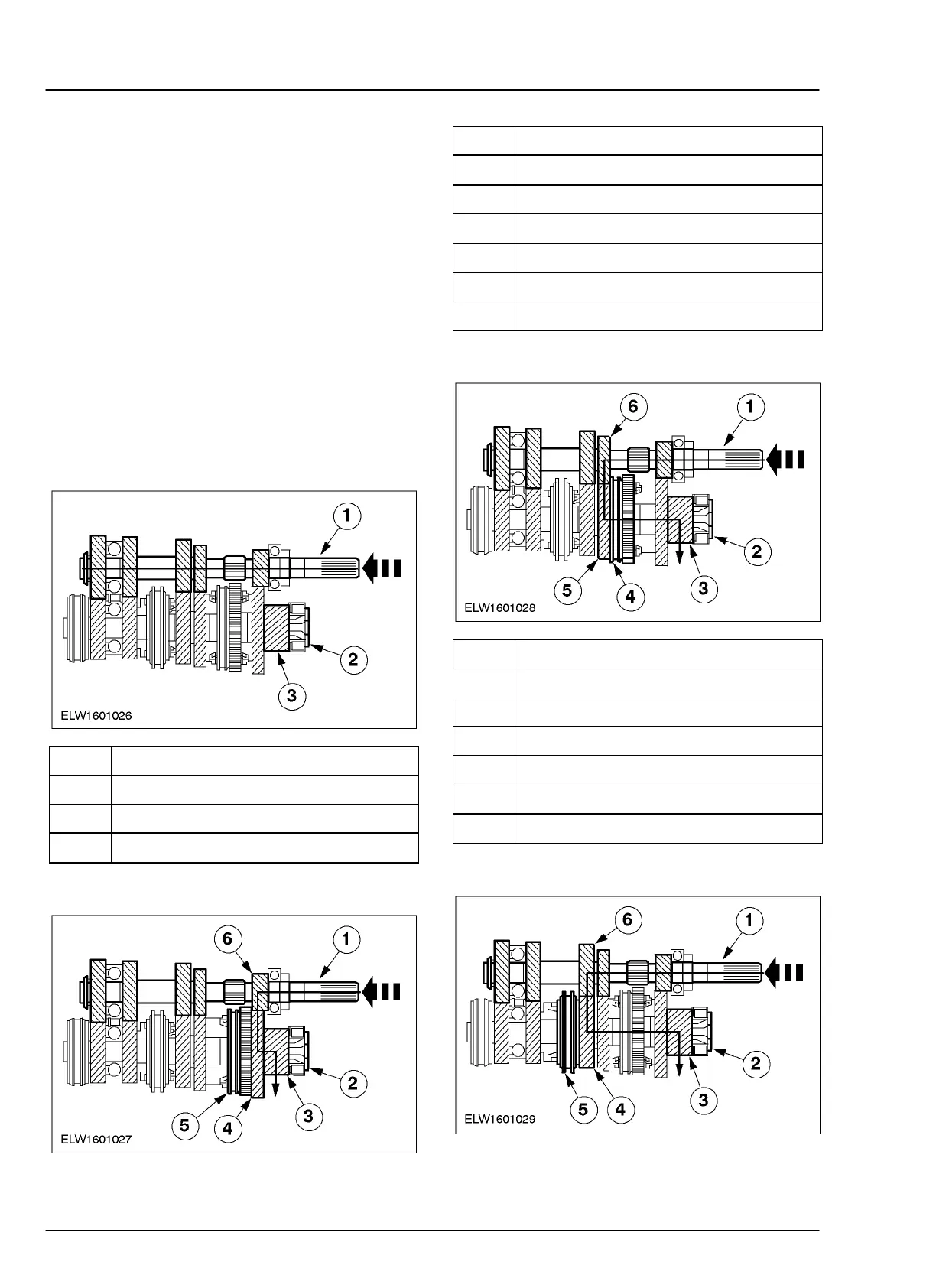

Power Flow
Neutral
Item
Description
1 Input shaft
2 Output shaft
3 Output pinion
First gear
Item
Description
1 Input shaft
2 Output shaft
3 Output pinion
4 1st gearwheel
5 1st/2nd gear synchronizer clutch
6 1st gear teeth
Second gear
Item
Description
1 Input shaft
2 Output shaft
3 Output pinion
4 1st/2nd gear synchronizer clutch
5 2nd gearwheel
6 2nd gear teeth
Third gear
