Ford 2002 Bantam - The High Beams Are Inoperative

417-01-12 Exterior Lighting 417-01-12
DIAGNOSIS AND TESTING (CONTINUED)
PINPOINT TEST C: THE HIGH BEAMS ARE INOPERATIVE
CONDITIONS DETAILS/RESULTS/ACTIONS

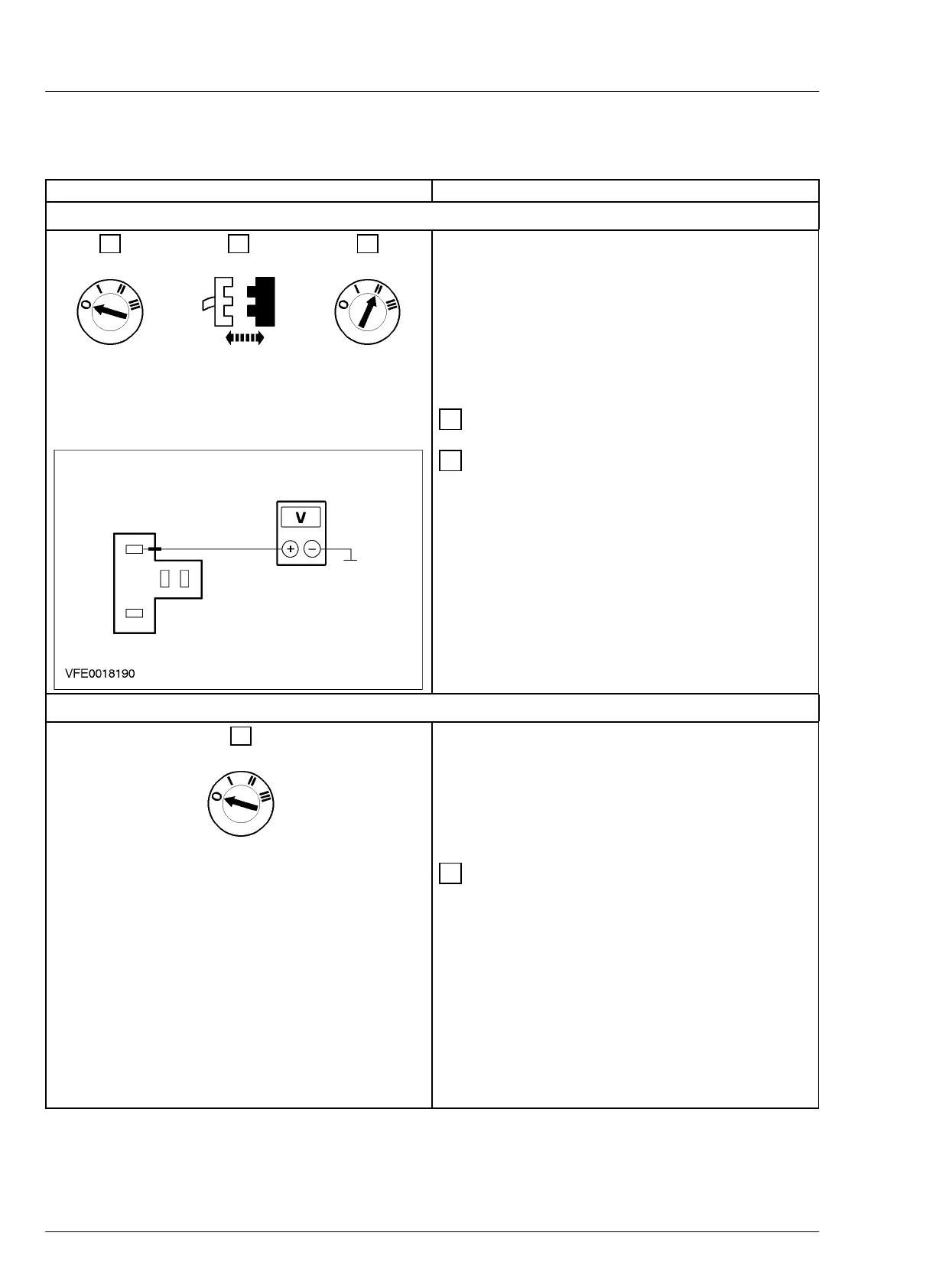

C1: CHECK THE CONTROL VOLTAGE OF RELAY – HIGH BEAM
1. 2.
Relay – high beam
C5
3.
4 Turn the multifunction switch to the LOW
BEAM and HIGH BEAM position.
5 Measure the voltage between relay socket –
high beam, connector C5, pin 2, circuit 14S-
LE12 (VT/YE) and ground.
• Is battery voltage indicated?
 Yes
GO TO C3
 No
GO TO C2
C2: CHECK THE MULTIFUNCTION SWITCH FOR PROPER FUNCTION
1.
2 Check the multifunction switch, according to
Component Testing attached to the wiring
diagrams.
• Is the multifunction switch OK?
 Yes
REPAIR the open circuit(s) between
multifunction switch and relay – high beam,
by using the wiring diagrams. TEST the
system for normal operation.
 No
INSTALL a new multifunction switch. TEST
the system for normal operation.
E9418 EN 07/2001 2002 Bantam
