412-00-29 Climate Control System — General Information 412-00-29
DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS

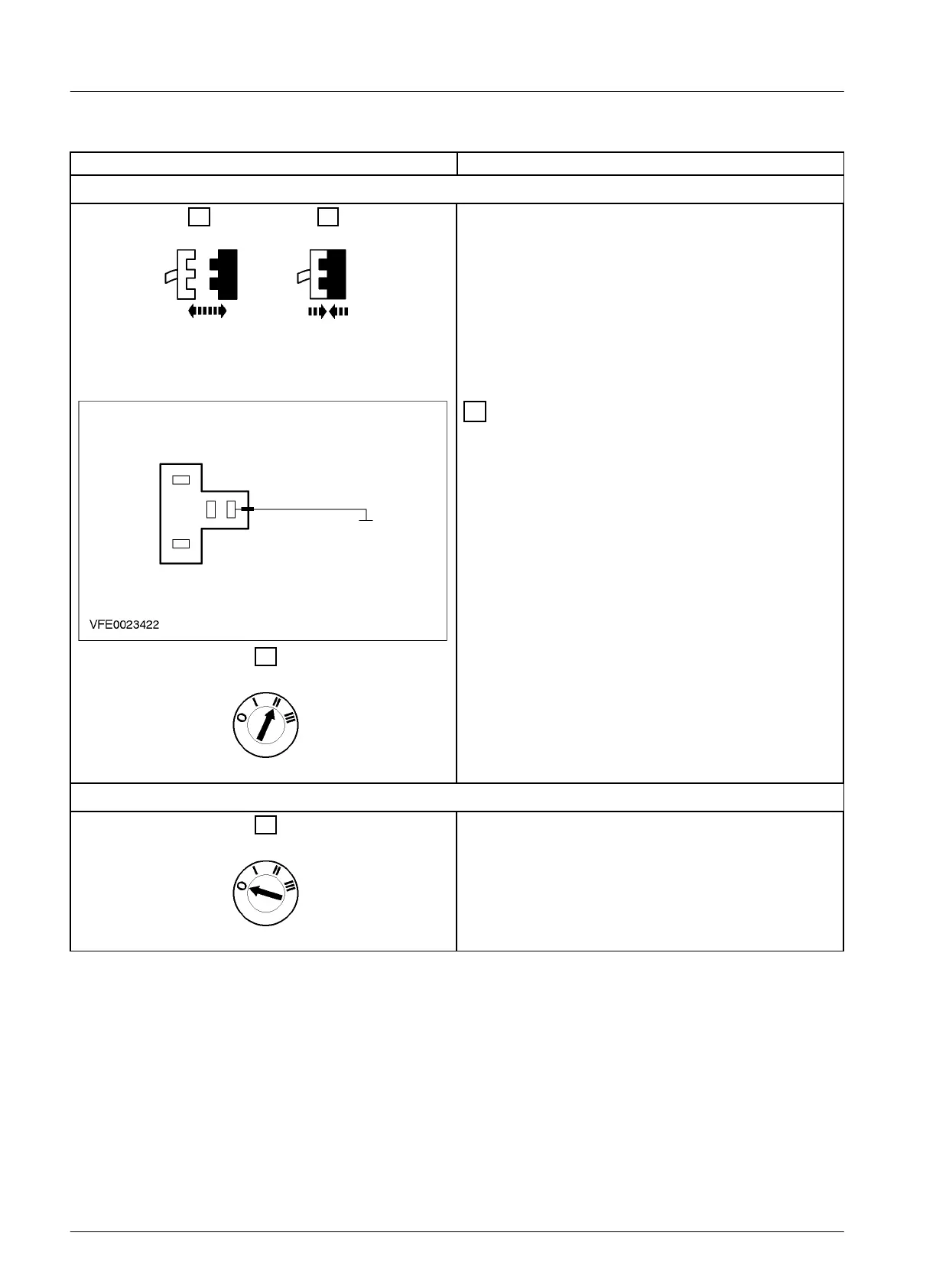

D7: CHECK THE CONTROL CIRCUIT OF THE RE-CIRCULATION AIR ACTUATOR
1.
Relay – A/C re-
circulation flap
C342
2.
Re-circulation air
actuator C54
3 Connect a jumper wire between relay socket –
A/C re-circulation flap, connector C342, pin 5,
circuit 31S-CA76 (BK/OG) and ground.
4.
• Is the re-circulation air actuator activated?
Yes
GO TO D9
No
GO TO D8
D8: CHECK THE RE-CIRCULATION AIR ACTUATOR
1.
E9425 EN 07/2001 2002 Bantam
