501-16-34 Wipers and Washers 501-16-34
REMOVAL AND INSTALLATION (CONTINUED)

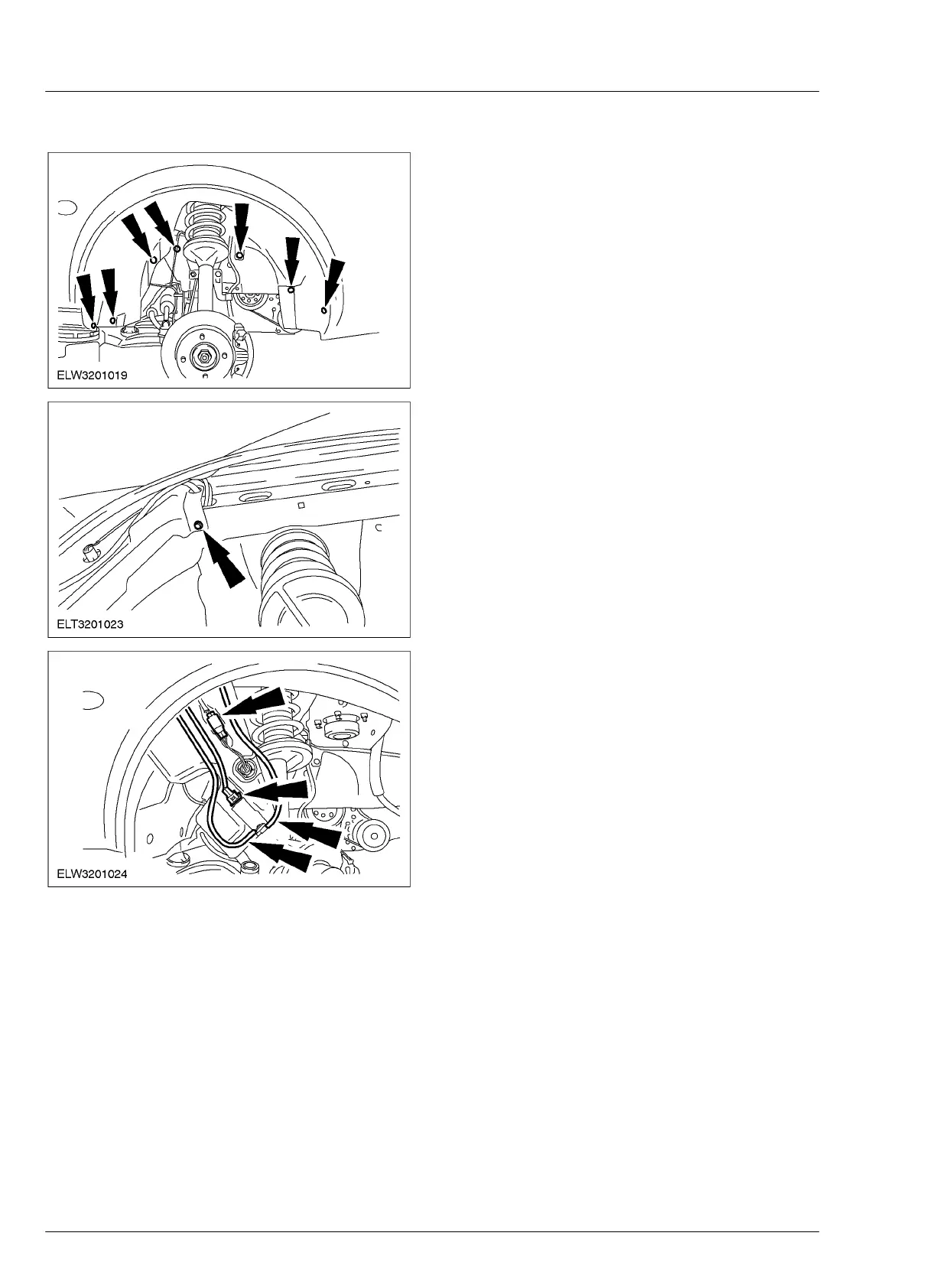

5. Remove the wheelhouse cover (shown
without wheel).
6. Remove the washer reservoir.
• Drain the reservoir by pulling off the
hoses at the pump.
• Remove the single screw.
7. Remove the washer reservoir (continued).
• Disconnect the plug.
• Take out the washer reservoir.
Installation
1. NOTE: When inserting the reservoir check
that the filler neck is correctly seated.
Refit the components in reverse order.
2. Lower the vehicle.
3. Fill up the washer reservoir.
4. Check the operation of the windscreen
washer system
E925 EN 07/2001 2002 Bantam
