205-04-28 Front Drive Halfshafts 205-04-28
DISASSEMBLY AND ASSEMBLY (CONTINUED)
E1088 EN 07/2001 2002 Bantam

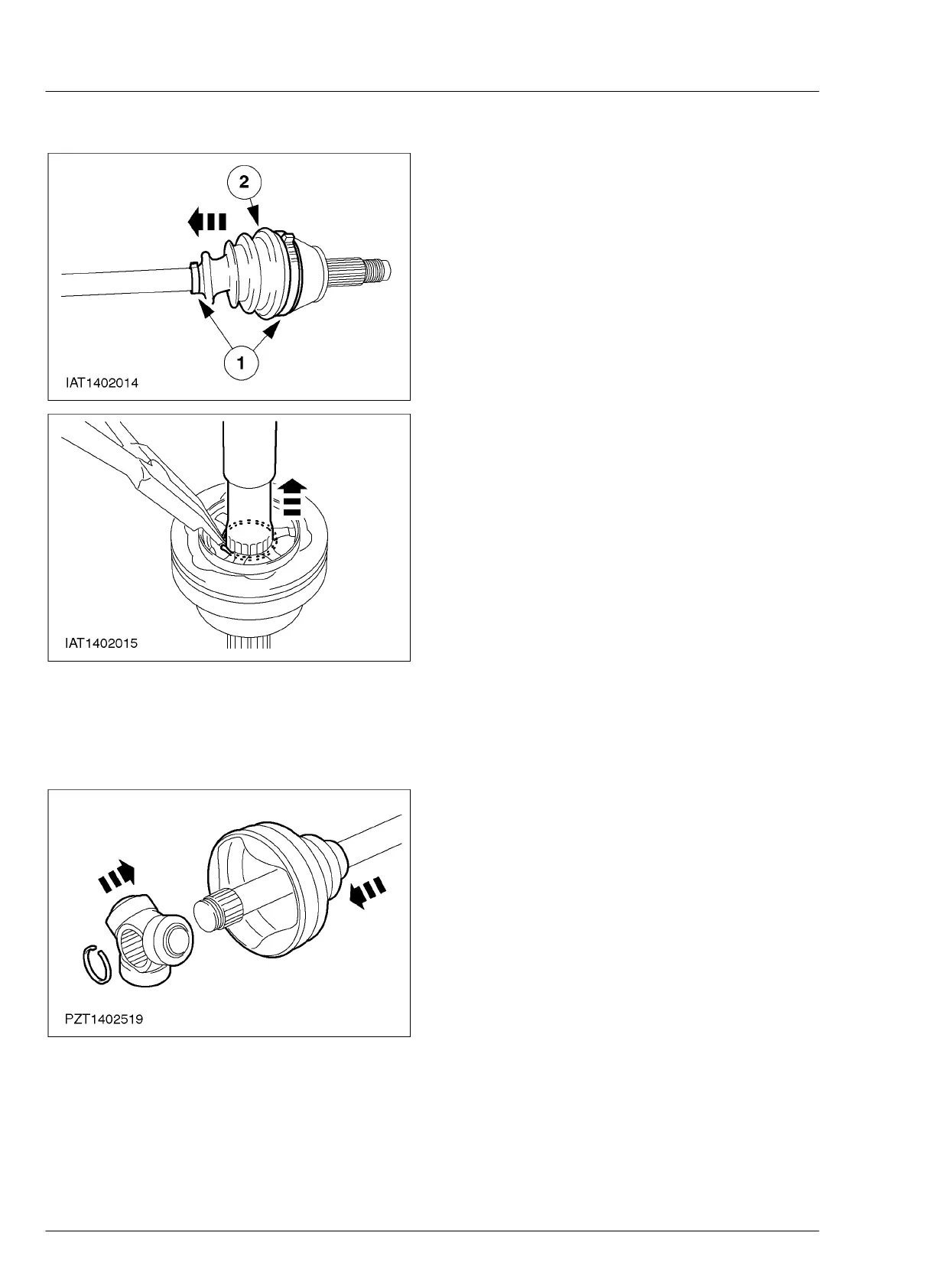

3. Detach the drive halfshaft joint gaiter.
1. Loosen the clamping straps from the
boot.
2. Pull off the boot.
• Remove the grease from inside the joint.
4. Detach the front drive halfshaft from the
halfshaft joint.
• Open the circlip with circlip pliers and
hold it.
• Pull the front drive halfshaft from the
halfshaft joint.
• Remove the circlip from the halfshaft
joint.
Assembly
NOTE: Renew all snap-rings and clamping
straps.
1. NOTE: Chamfer points towards the front drive
halfshaft.
Fit the tripod star assembly.
• Slide the boot onto the front drive
halfshaft.
• Push the tripod star onto the front drive
halfshaft.
• Fit the circlip.
