501-20B-45 Occupant Restraints — Passive — Supplemental Air 501-20B-45
Bag System
DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS
3 Carry out the self-test with the simulators
installed.
• Does the system prove out correctly?
Yes
INSTALL a new passenger safety belt
pretensioner. REFER to Section 501-20A.
REPEAT the self-test; CLEAR the DTCs.
REACTIVATE the system. REFER to Air
Bag and Safety Belt Pretensioner
Supplemental Restraint System (SRS) in
this section.
No
GO TO V2

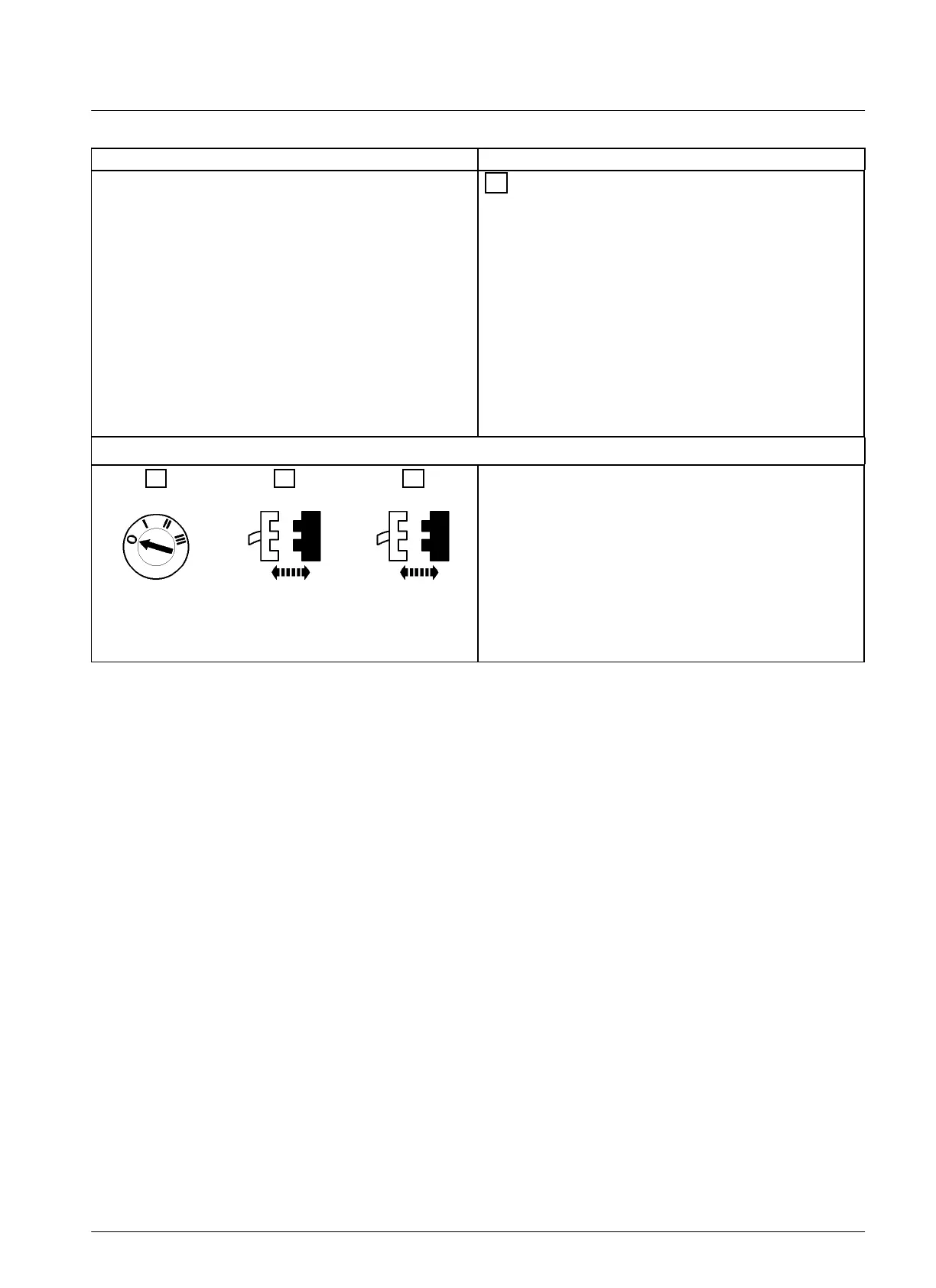

V2: CHECK THE PASSE GER SAFETY BELT PRETENSIONER FOR A SHORT TO GROUND N
1.
2.
Air Bag Control
Module C334/C335
3.
Passenger Safety
Belt Pretensioner
Simulator
08/2001 2002 Bantam
To Next Page
