501-20B-56 Occupant Restraints — Passive — Supplemental Air 501-20B-56
Bag System
REMOVAL AND INSTALLATION (CONTINUED)

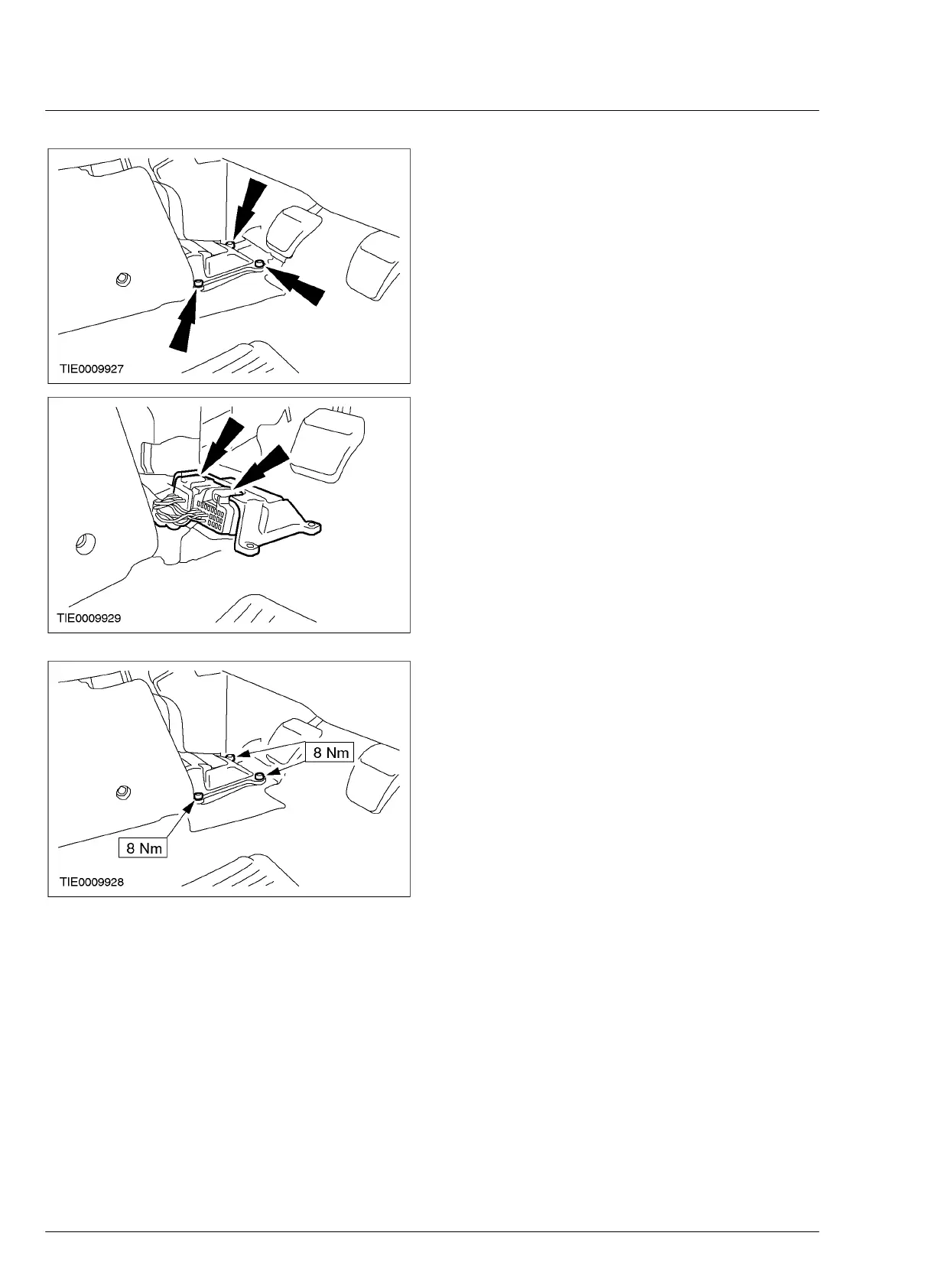

2. NOTE: Fold back the floor covering to gain
access to the air bag control module.
Detach the air bag control module.
3. Disconnect the electrical connectors.
Installation
1. To install, reverse the removal procedure.
2. NOTE: New air bag control modules supplied
in service require configuring following
installation.
Configure the air bag control module. For
additional information, refer to WDS.
08/2001 2002 Bantam
