303-01B-123 Engine — 1.6L / 1.3L RoCam 303-01B-123
INSTALLATION (CONTINUED)
E6646 EN 07/2001 2002 Bantam

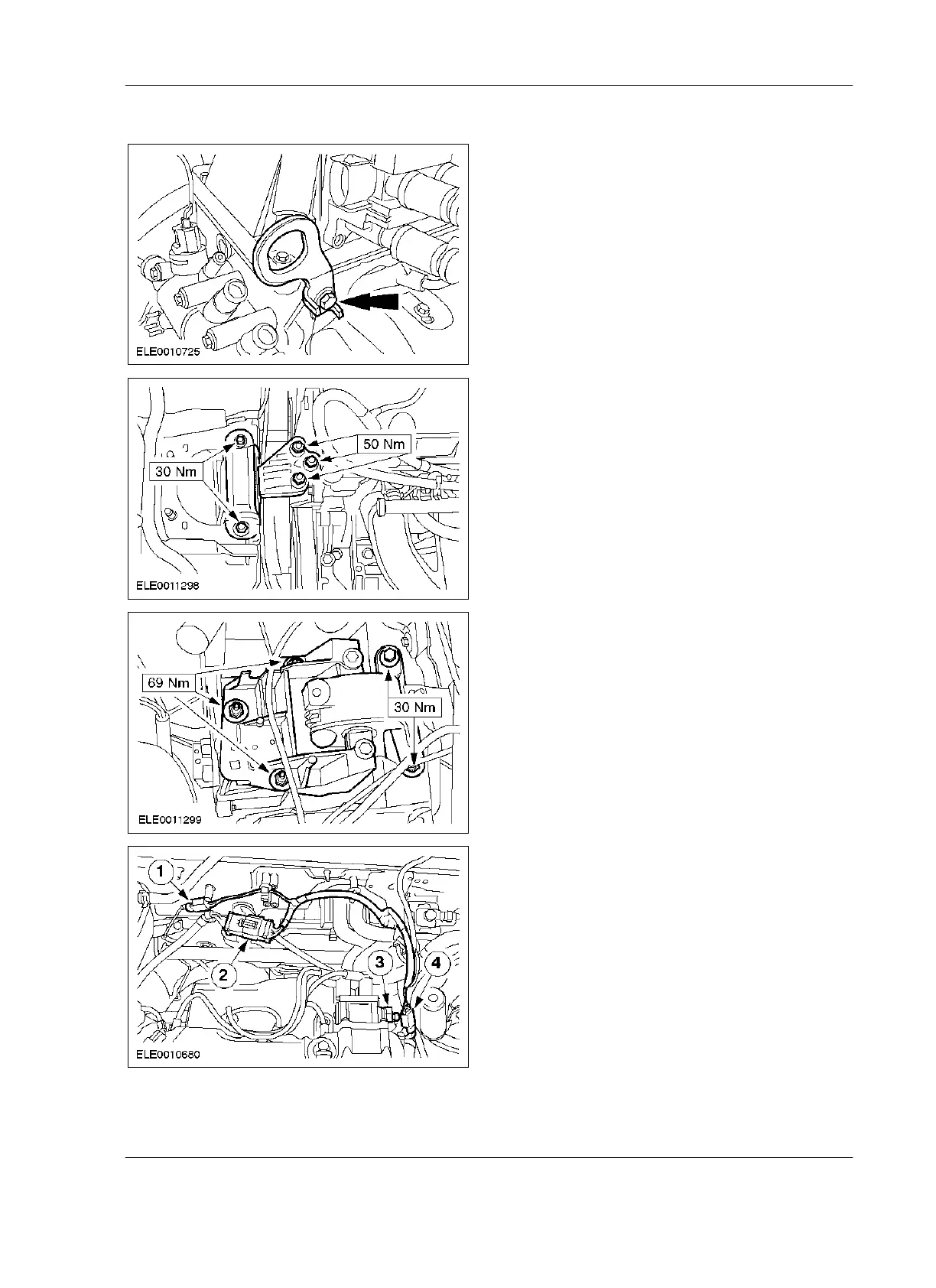

32. Remove the engine lifting eye.
33. Tighten the engine front mounting bracket.
34. Tighten the engine rear mounting bracket.
35. Connect the heated oxygen (HO2S) sensor,
powertrain control module (PCM),
electronic ignition (EI) coil, and vehicle
speed sensor (VSS) electrical connectors.
1. HO2S sensor
2. PCM
3. EI coil
4. VSS sensor
