303-01D-13 Engine — 1.8L Diesel - Endura DE 303-01D-13
IN-VEHICLE REPAIR (CONTINUED)
E5881 EN 09/2001 2002 Bantam

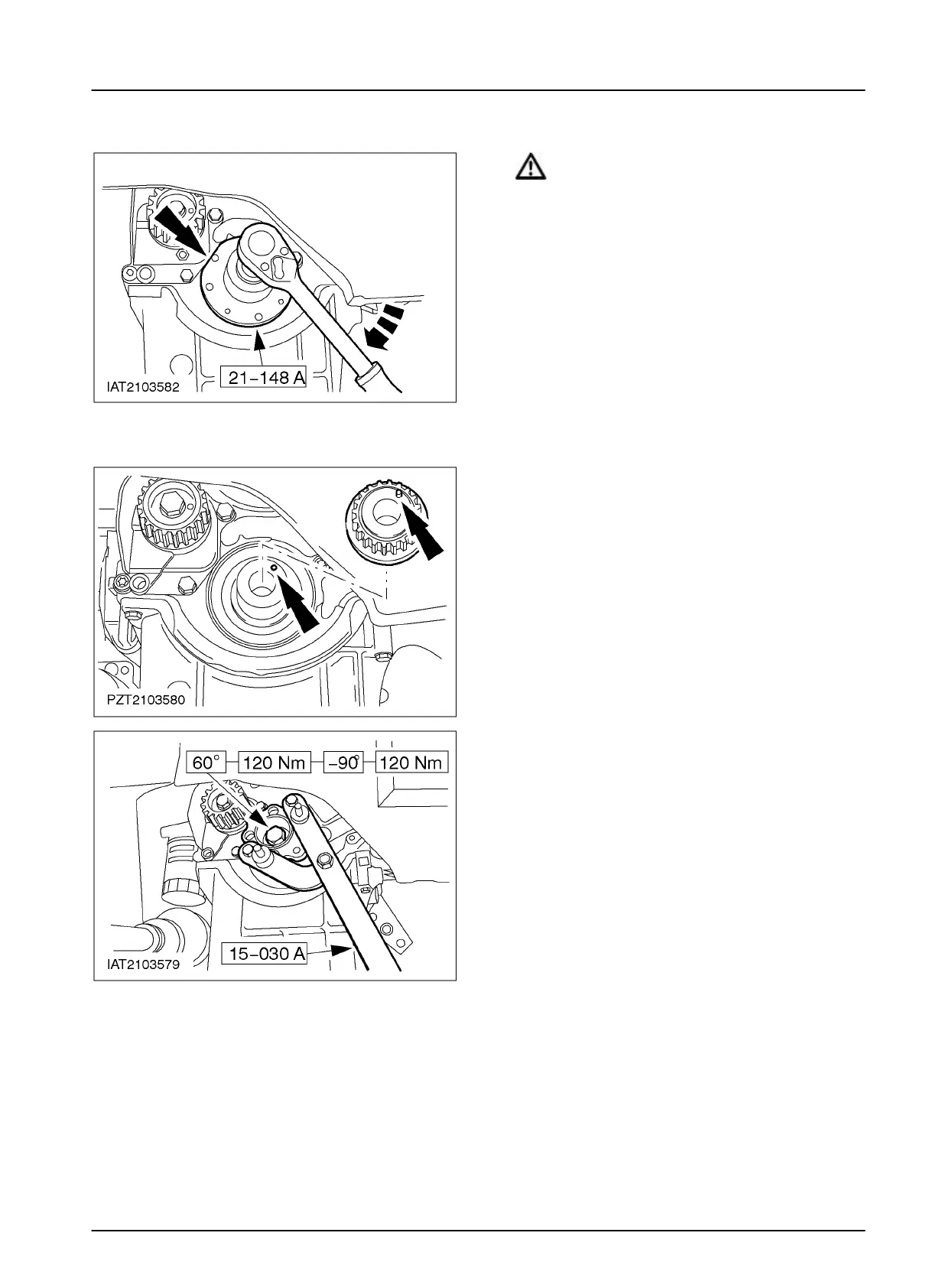

2. CAUTION: Carry out Step 3
immediately after Step 2 to prevent
the oil seal from contracting. Only
remove the support ring immediately
prior to installation of the oil seal.
NOTE: Position of the flattened area on the
special tool.
NOTE: The support ring must not yet be
removed from the oil seal.
NOTE: Fit the oil seal dry.
Fit the oil seal, together with the bolt of the
crankshaft front timing pulley flange.
• Remove the special tool and the support
ring.
3. Fit the crankshaft rear timing pulley.
Coat the O-ring and the end of the
crankshaft with engine oil.
NOTE: The guide pin in the end of the
crankshaft and the hole in the timing pulley must
line up.
• Carefully slide the timing pulley on as far
as the stop.
4. NOTE: Use a new bolt.
NOTE: Coat the contact face of the bolt head
with engine oil.
Fit the flange of the crankshaft front timing
pulley.
5. Lower the vehicle.
