303-01D-42 Engine — 1.8L Diesel - Endura DE 303-01D-42
IN-VEHICLE REPAIR (CONTINUED)
E6447 EN 09/2001 2002 Bantam

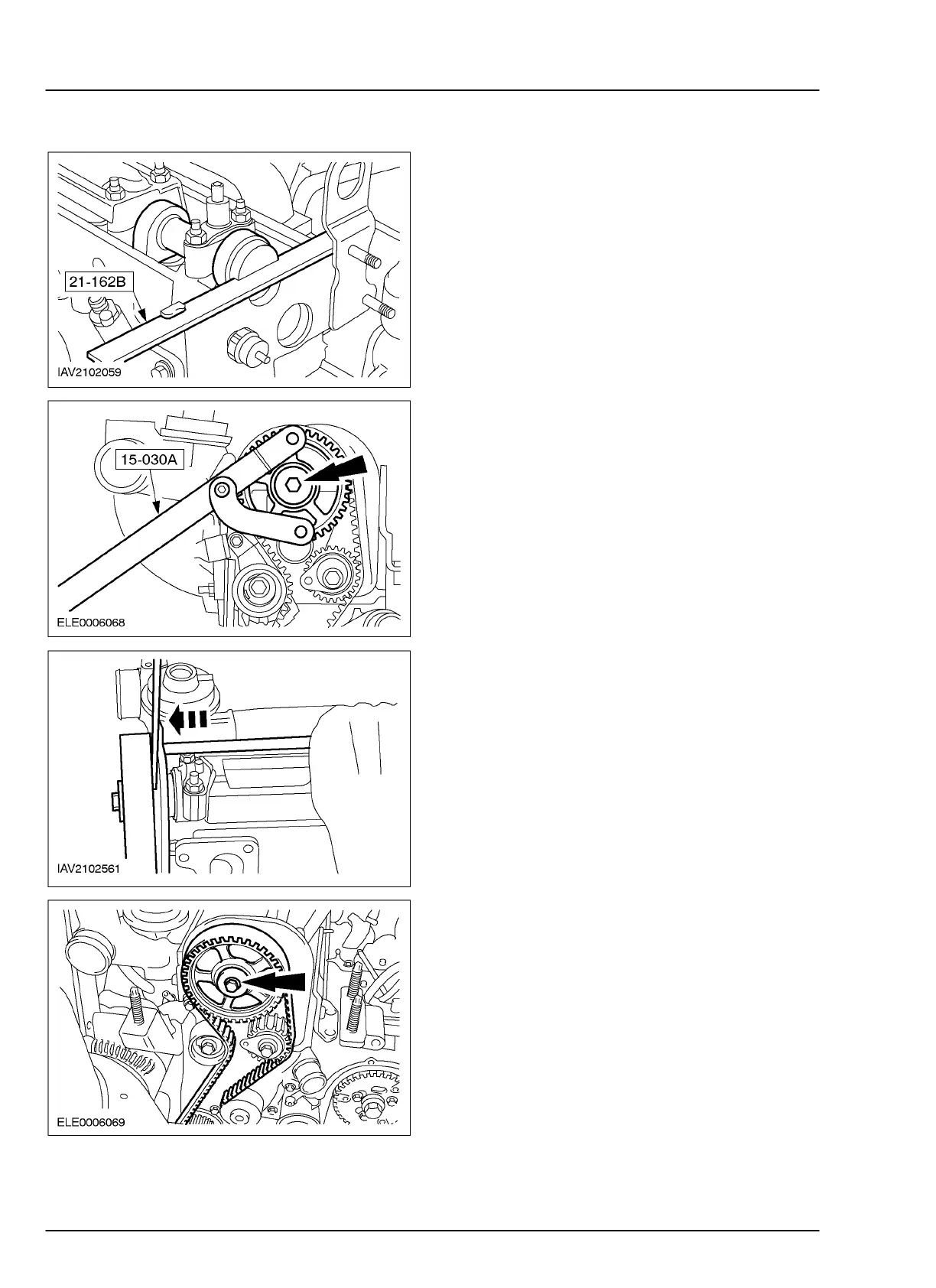

7. NOTE: If necessary, turn the camshaft using
water pump pliers until the timing tool can be
inserted.
Insert the timing tool in the camshaft
groove.
8. NOTE: Hold the camshaft timing pulley with
the special tool.
Undo the camshaft timing pulley bolt three
turns.
9. NOTE: Position a screwdriver between the
camshaft timing pulley and the rear timing
belt cover.
Release the camshaft timing pulley from the
conical seat by tapping it lightly with a light
metal drift.
10. NOTE: Make sure that the camshaft timing
pulley can still be turned freely on the conical
seat.
Tighten the camshaft timing pulley bolt
finger tight.
• Tighten the camshaft pulley bolt finger
tight and then undo it one half turn.
