303-01D-74 Engine — 1.8L Diesel - Endura DE 303-01D-74
IN-VEHICLE REPAIR (CONTINUED)
E5970 EN 09/2001 2002 Bantam

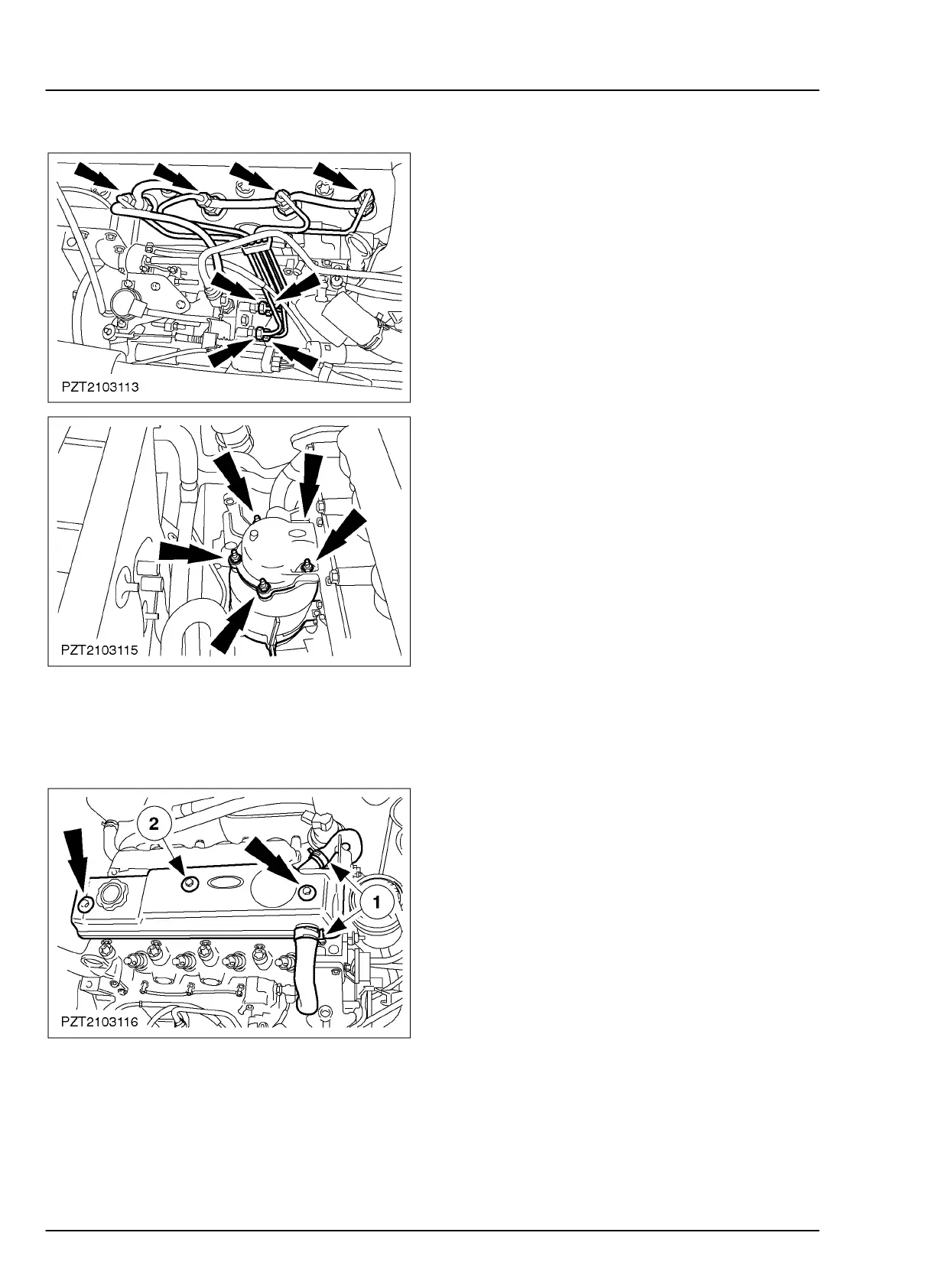

18. Remove the injection pipes and disconnect
the leak-off hoses.
19. Detach the catalytic converter from the
exhaust manifold.
20. Support the engine with a trolley jack, so
that the front engine mounting is free of
load.
21. Detach the engine support bar.
22. Remove the cylinder head cover.
1. Detach the crankcase ventilation hoses.
2. Remove the bolts.
To Next Page
