303-01D-87 Engine — 1.8L Diesel - Endura DE 303-01D-87
REMOVAL (CONTINUED)
E5886 EN 09/2001 2002 Bantam

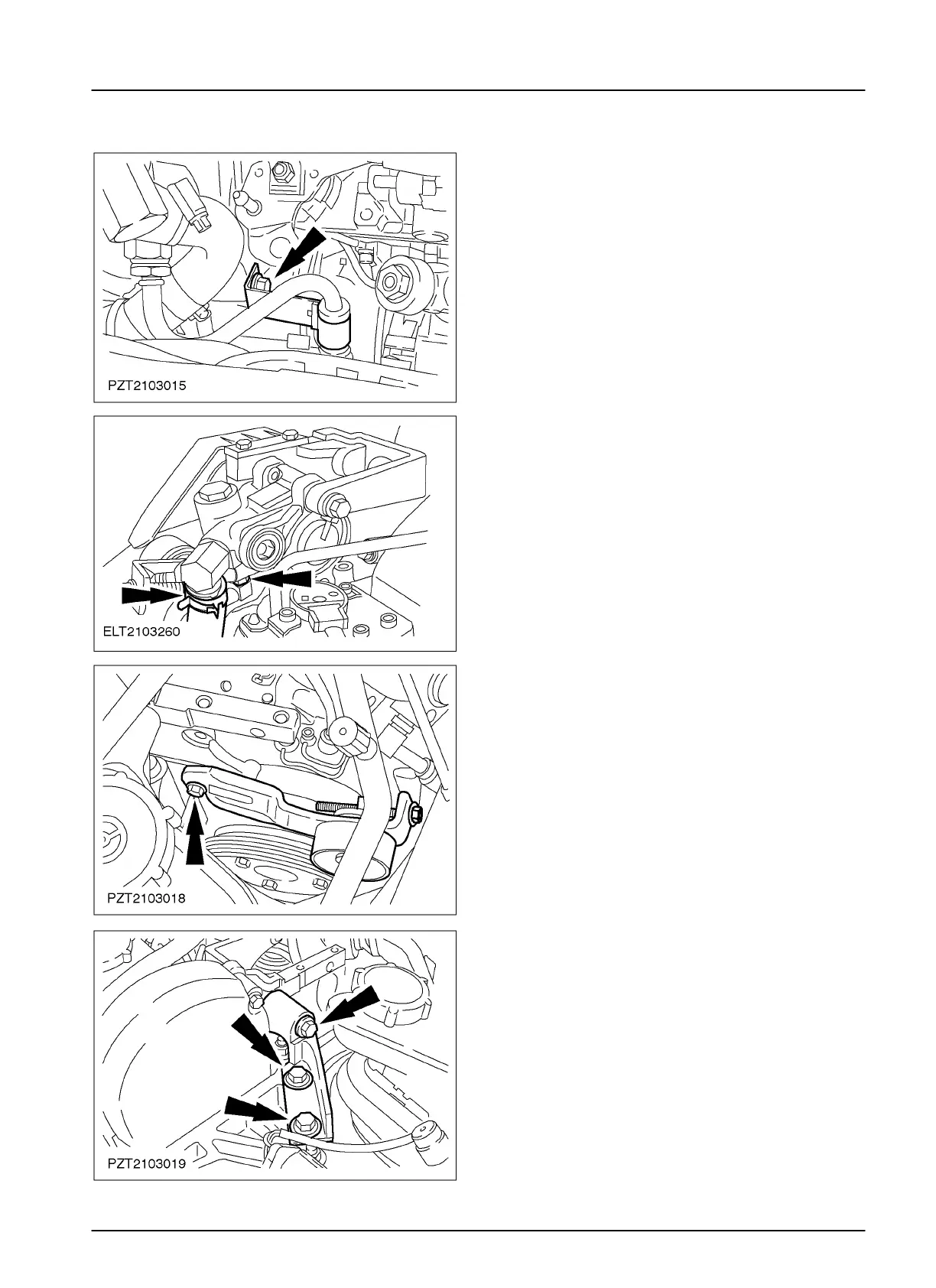

19. Detach the bracket of the power steering
pressure pipe.
20. NOTE: Collect the power steering fluid.
Detach the power steering hose and
pressure pipe.
21. Remove the belt tensioner.
22. Remove the front engine mounting auxiliary
bracket.
To Next Page
