303-01D-89 Engine — 1.8L Diesel - Endura DE 303-01D-89
REMOVAL (CONTINUED)
E5886 EN 09/2001 2002 Bantam

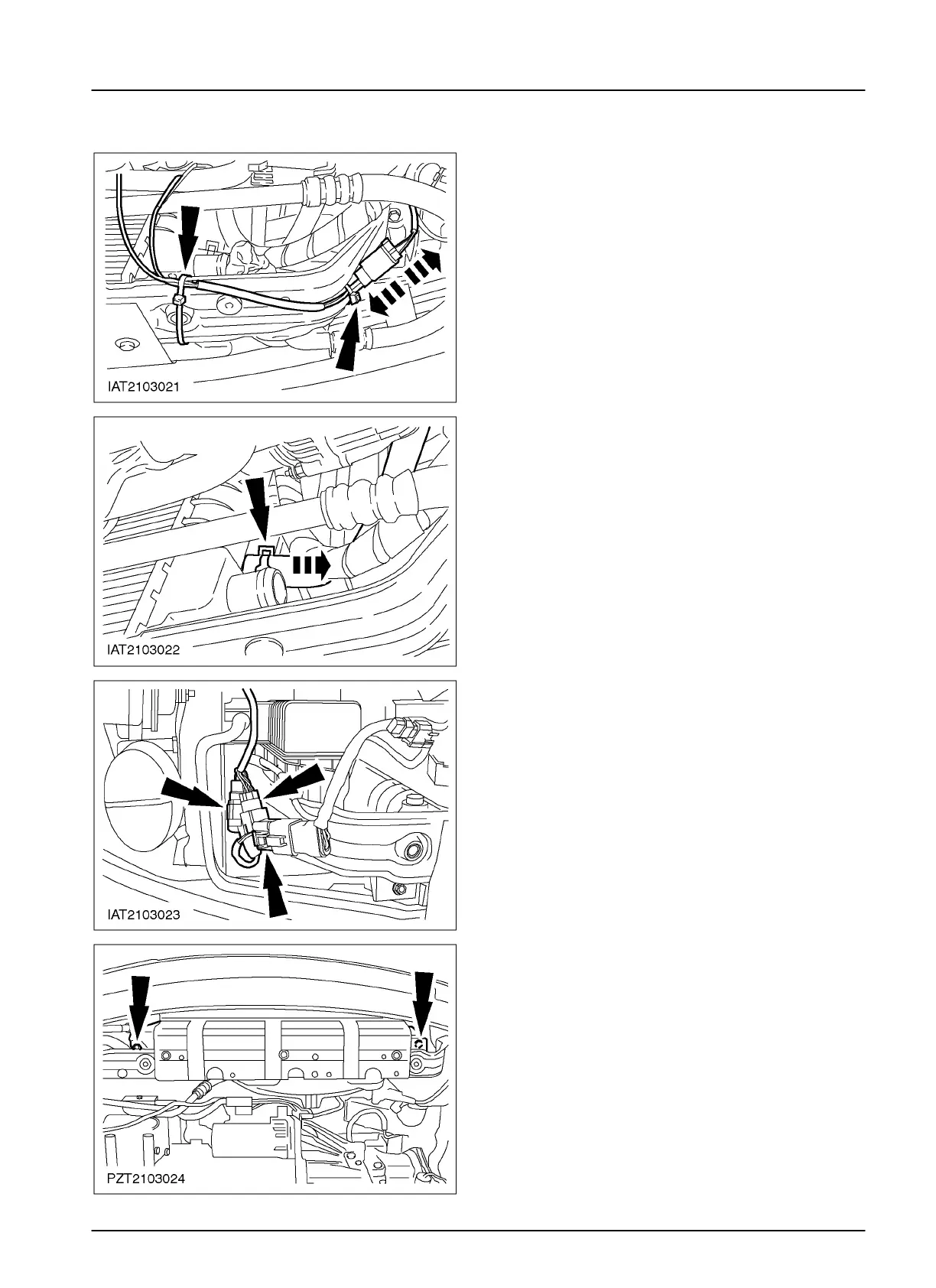

27. Disconnect the air conditioning plug.
• Cut the two cable ties.
28. Detach the lower right-hand coolant hose.
29. Disconnect the three plugs at the bottom of
the radiator on the left-hand side.
30. NOTE: Do not remove the air conditioning
condenser.
Detach the air conditioning condenser at
the bottom and tie up.
To Next Page
