303-01D-100 Engine — 1.8L Diesel - Endura DE 303-01D-100
DISASSEMBLY (CONTINUED)
E6007 EN 09/2001 2002 Bantam
Engines with automatic timing belt tensioner

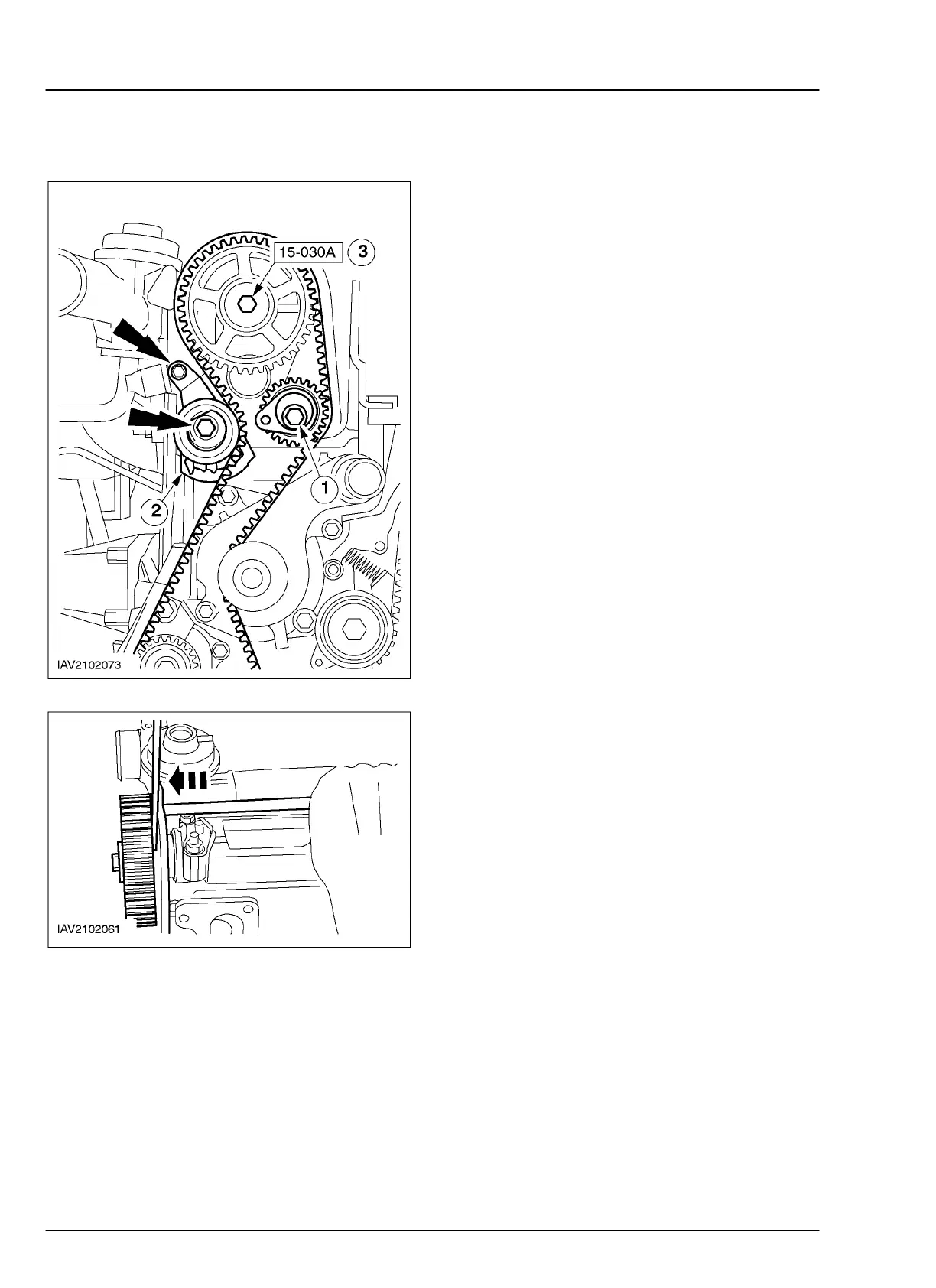

12. Remove the camshaft timing belt.
1. Unscrew the bolt of the adjusting cam
and remove the adjusting cam and the
timing belt.
2. Detach the camshaft timing belt
tensioner.
3. Undo the bolt of the camshaft timing belt
pulley.
Engines with automatic timing belt tensioner
13. NOTE: Position a screwdriver between the
camshaft timing belt pulley and the timing belt
rear cover.
Detach the camshaft timing belt pulley
(continued).
• Release the camshaft timing belt pulley
from its conical seat by tapping it lightly
with a light metal drift.
