303
-
03
-
185
Engine Cooli
ng
303
-
03
-
185
REMOVAL AND INSTALLATION (
CONTINUED
)
E6343 EN
09/2001 2002 Bantam
Installation
1.
Refit the components in reverse order.
•

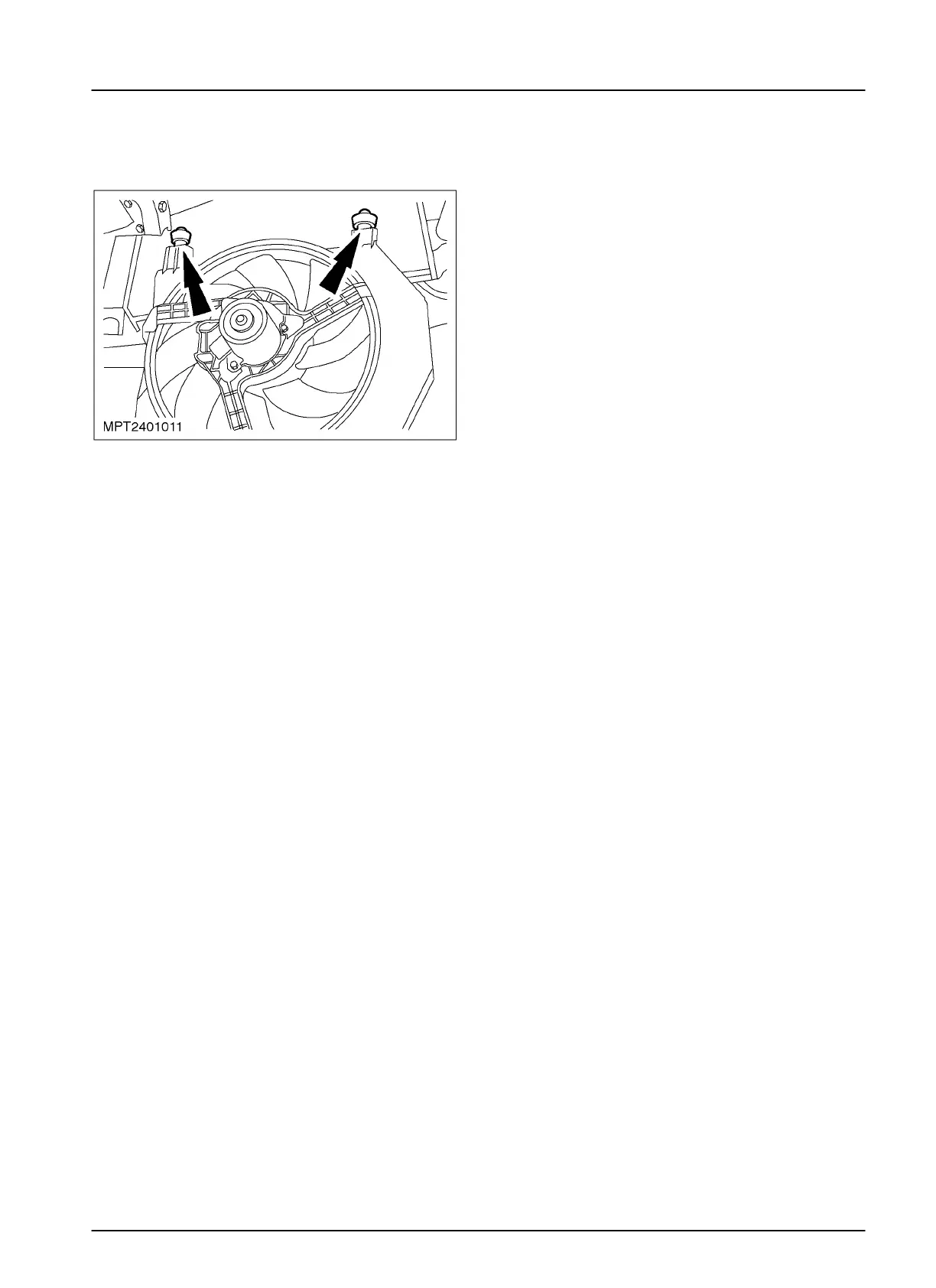

Make sure the lugs on the fan/shroud
assembly are located correctly.
