303-08B-221 Engine Emission Control — Diesel Engine 303-08B-221
REMOVAL AND INSTALLATION (CONTINUED)
E7850 EN 09/2001 2002 Bantam

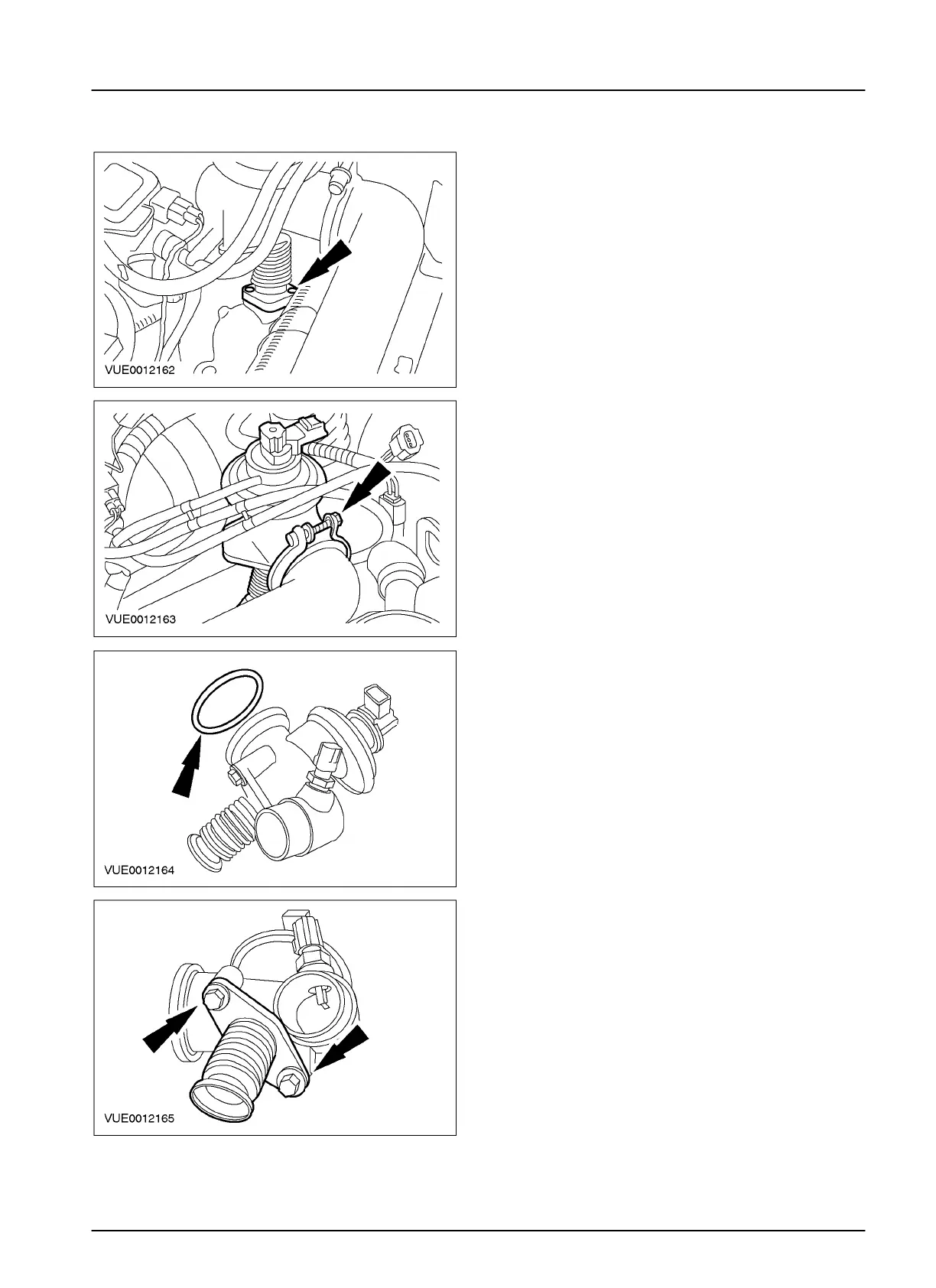

4. Detach the exhaust manifold to EGR valve
tube.
5. Discard the EGR valve clamp.
6. Remove and discard the EGR valve gasket.
7. Remove the EGR valve.
8. Remove and discard the gasket.
