303-03-158 Engine Cooling 303-03-158
REMOVAL AND INSTALLATION (CONTINUED)
E6656 EN 07/2001 2002 Bantam

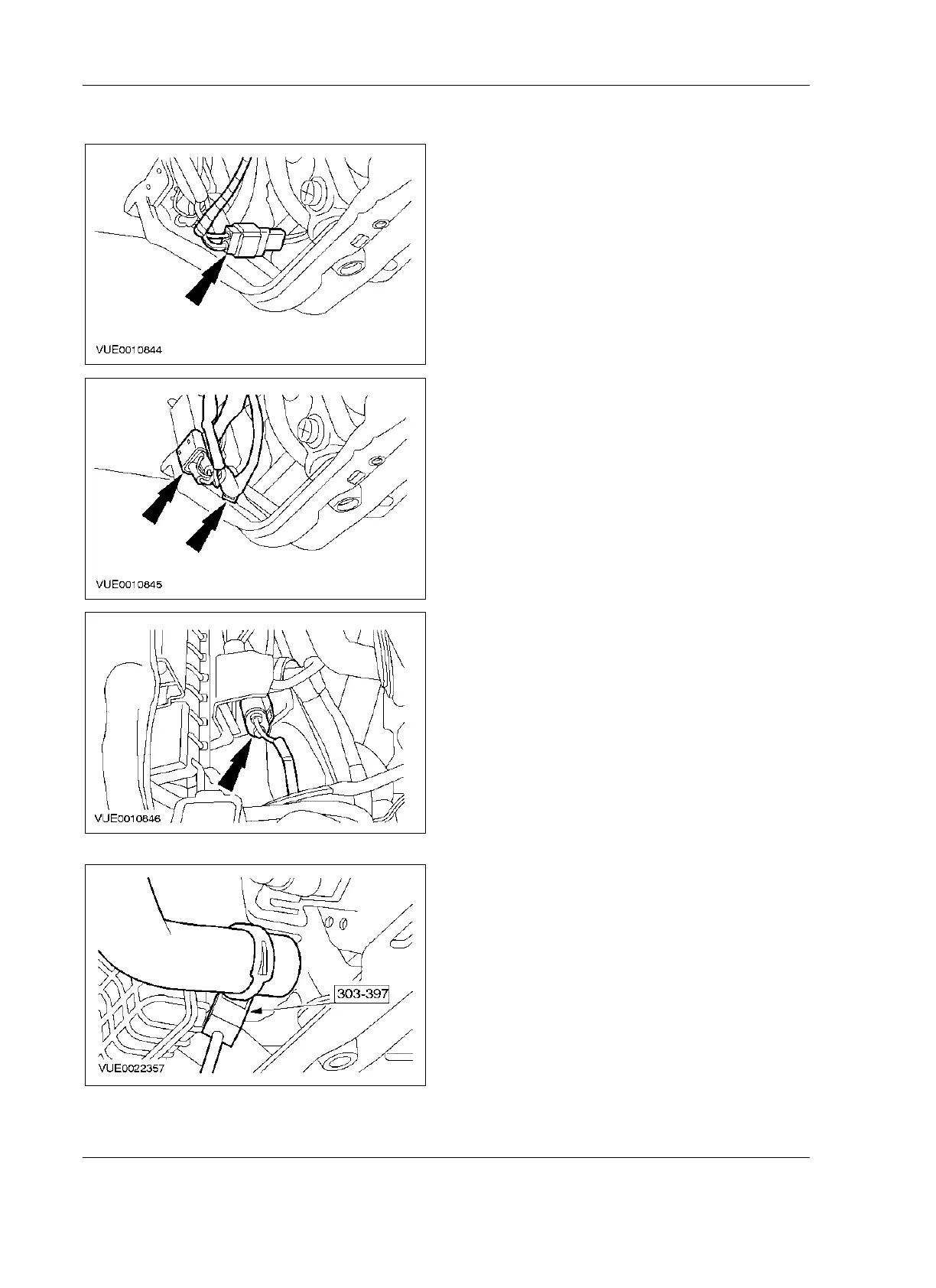

14. Disconnect and detach the cooling fan
motor resistor electrical connector.
15. Disconnect and detach the cooling fan
motor relay electrical connector.
16. Disconnect the cooling fan motor electrical
connector.
All except vehicles with diesel engine
17. Using the special tool, disconnect the
coolant hose from the radiator.
To Next Page
