308-03-61 Manual Transaxle 308-03-61
RE MOVAL (CONTINUED)
E6700 EN 07/2001
All vehicles

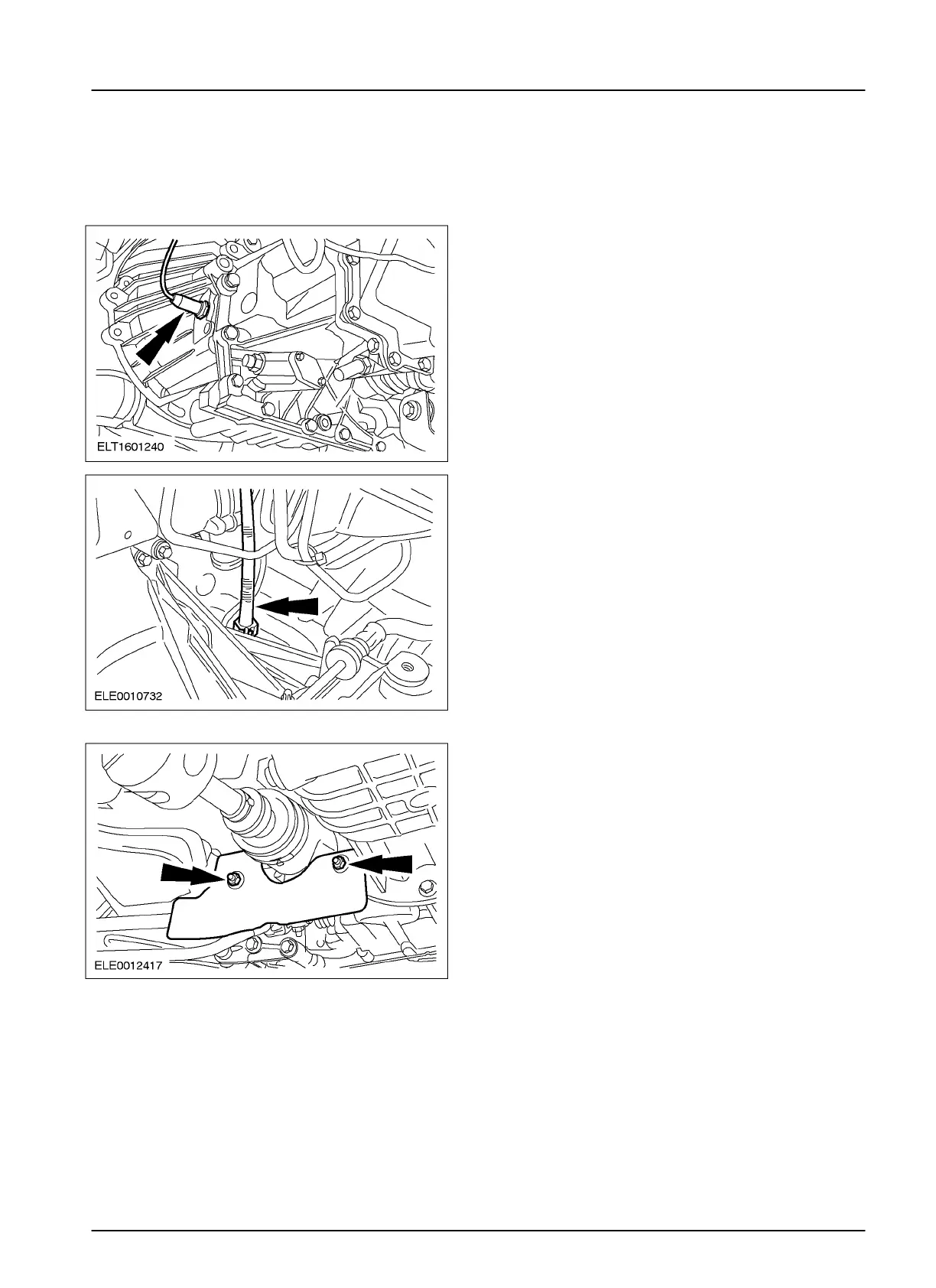

17. Raise and support the vehicle. For
additional information, refer to Section 100-
02.
18. Disconnect the reversing lamp switch
electrical connector.
19. Disconnect the speedometer drive cable
from the transaxle.
Vehicles with diesel engine
20. Remove the halfshaft heat shield.
To Next Page
