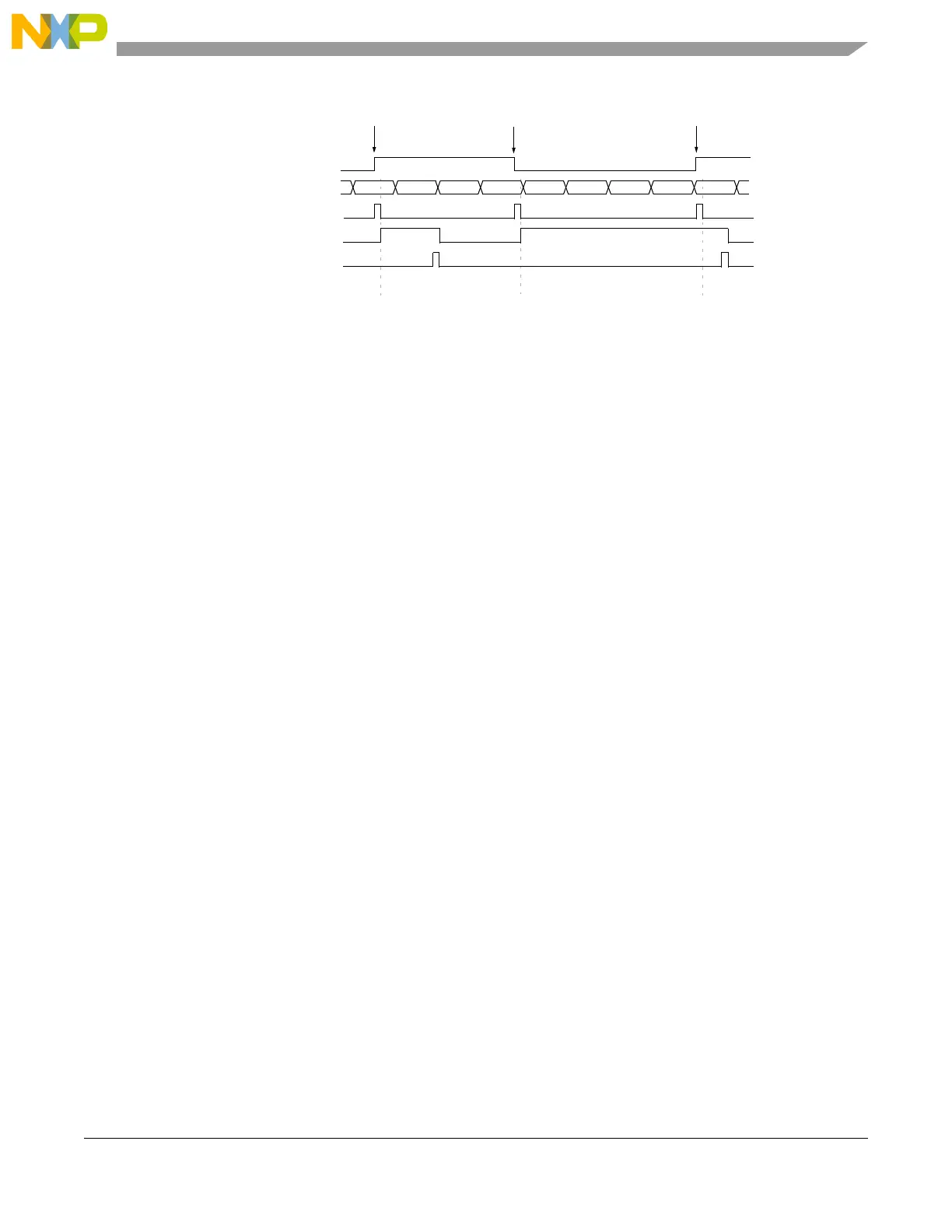

Figure 24-19. Single action input capture with both edges triggering example
24.4.4.1.1.3 Single Action Output Compare (SAOC) mode
In SAOC mode (MODE[0:6] = 0000011) a match value is loaded in register A2 and then immediately
transferred to register A1 to be compared with the selected time base. When a match occurs, the EDSEL
bit selects whether the output flip-flop is toggled or the value in EDPOL is transferred to it. Along with
the match the FLAG bit is set to indicate that the output compare match has occurred. Writing to register
EMIOSA[n] stores the value in register A2 and reading to register EMIOSA[n] returns the value of register
A1.
An output compare match can be simulated in software by setting the FORCMA bit in EMIOSC[n]
register. In this case, the FLAG bit is not set.
When SAOC mode is entered coming out from GPIO mode the output flip-flop is set to the complement
of the EDPOL bit in the EMIOSC[n] register.
Counter bus can be either internal or external and is selected through bits BSL[0:1].
Figure 24-20 and Figure 24-21 show how the Unified Channel can be used to perform a single output
compare with EDPOL value being transferred to the output flip-flop and toggling the output flip-flop at
each match, respectively. Note that once in SAOC mode the matches are enabled thus the desired match
value on register A1 must be written before the mode is entered. A1 register can be updated at any time
thus modifying the match value which will reflect in the output signal generated by the channel.
Subsequent matches are enabled with no need of further writes to EMIOSA[n] register. The FLAG is set
at the same time a match occurs (see Figure 24-22).
NOTE
The channel internal counter in SAOC mode is free-running. It starts
counting as soon as the SAOC mode is entered.
selected counter bus 0x001000 0x001102
FLAG set event
A2 (captured) value
2
0xxxxxxx 0x001000
input signal
1
Edge detect
Notes: 1. After input filter
2. EMIOSA[n] <= A2
0x001103 0x0011080x001104 0x001105 0x001106 0x0011070x001001
FLAG pin/register
Edge detect
FLAG clear
Edge detect
0x001103 0x001108
EDSEL = 1
EDPOL = x
