Hirschmann RS20 Reference Manual

Mode-based CLI
42
3.1 Mode-based Topology
CLI L2P
Release 7.0 05/2011
3.1 Mode-based Topology
The CLI tree is built on a mode concept where the commands are available
according to the interface. Some of the modes are depicted in the following
figure.

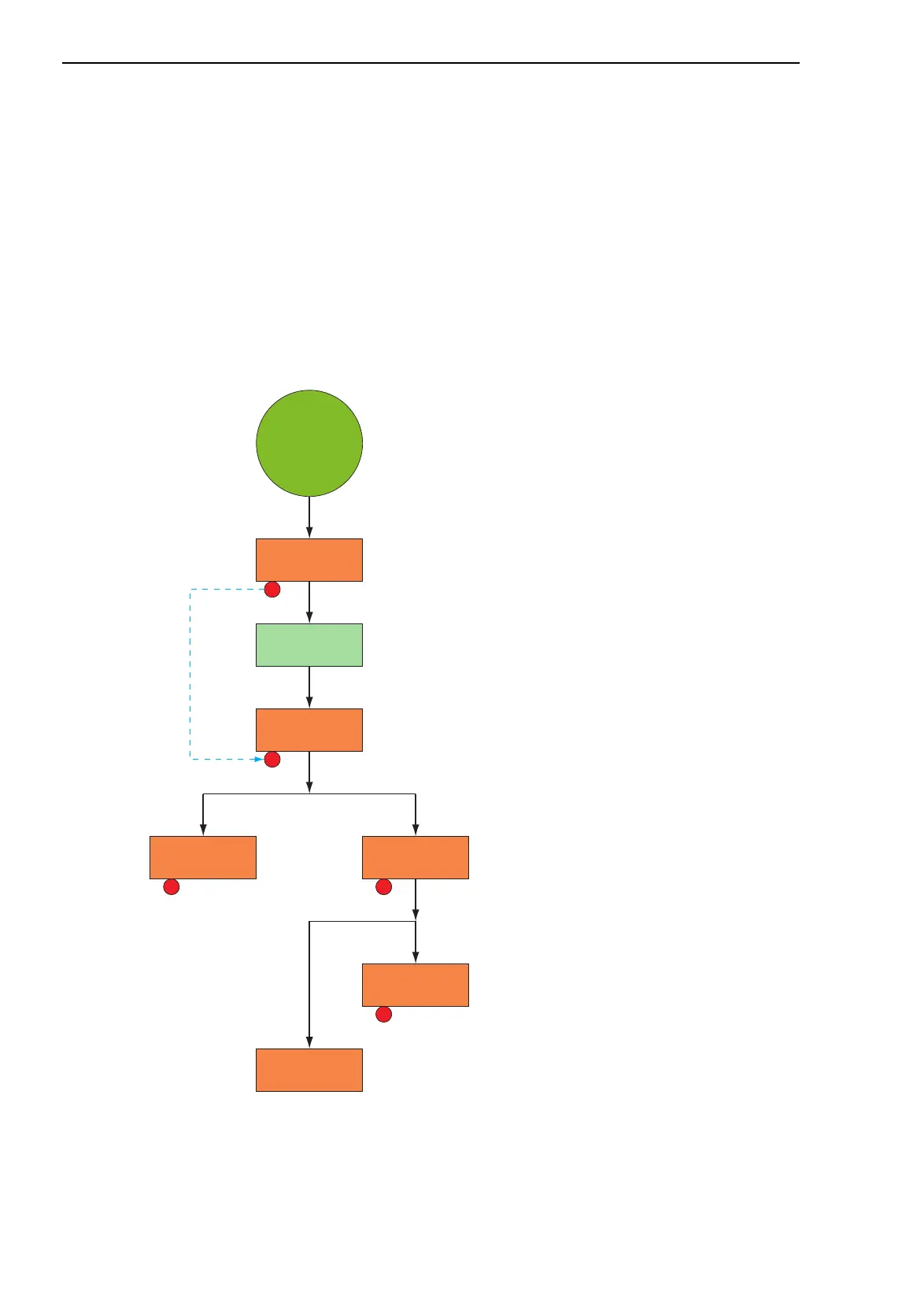

Fig. 1: Mode-based CLI
User Exec
Enable
Privileged Exec
Interface Config
Line Config
ROOT
VLAN Global Config
The User Exec commands
are also accessible in the
Privileged Exec mode.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
