Trimble FM-1000 - EZ-Steer assisted steering system

8 Vehicle guidance setup EZ-Steer assisted steering system
EZ-Steer assisted steering system
The EZ-Steer assisted steering system uses GPS to provide automatic vehicle guidance.
For cabling information, see FM-1000 Integrated Display Cabling Guide.
For operational information, see EZ-Steer system operation (page 404).
To set up the EZ-Steer system:
1. Complete the GPS receiver settings (page 108).
2.

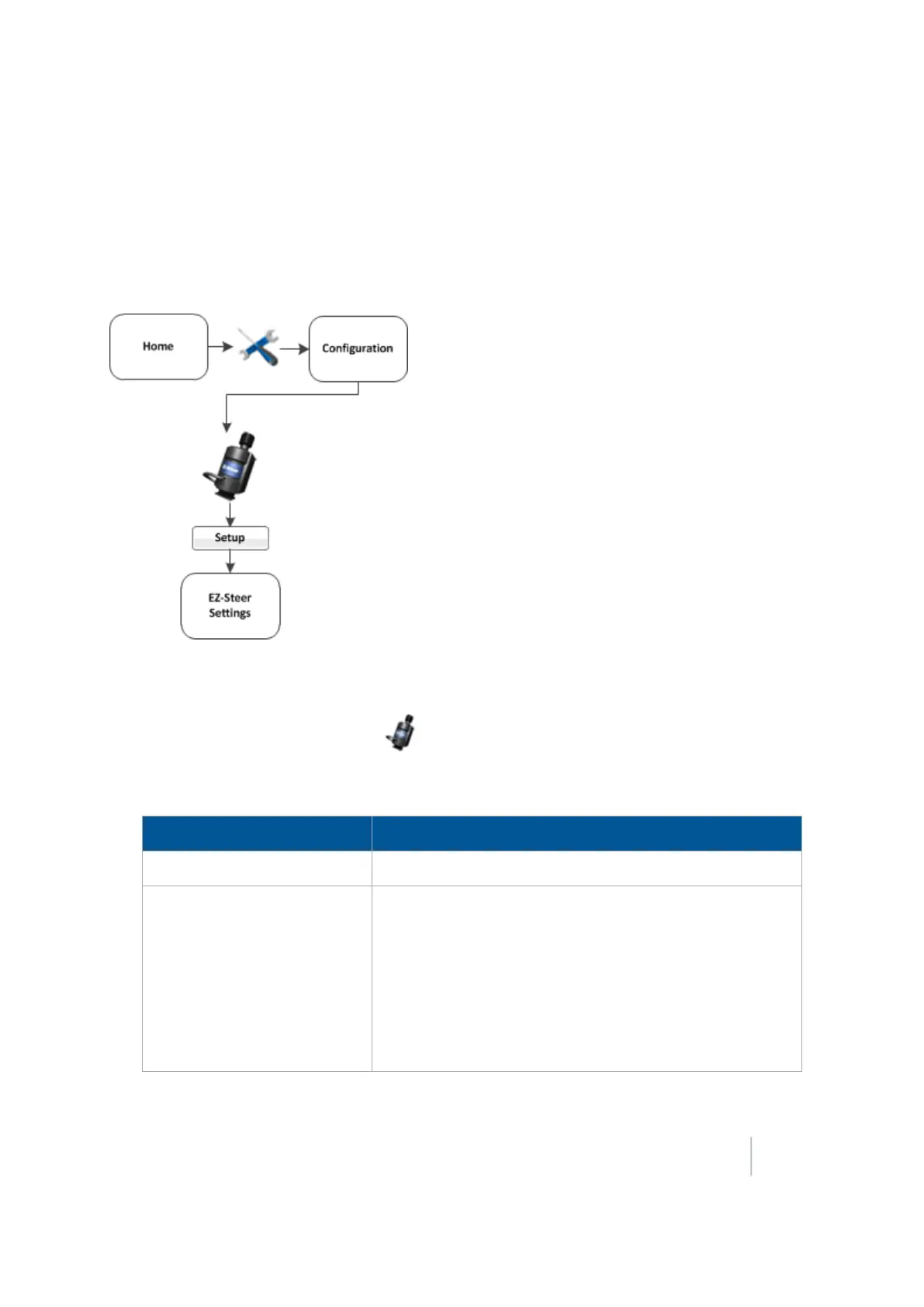

At the Configuration screen, select EZ-Steer and tap Setup. The EZ-Steer Settings screen
displays.
3.
Complete the settings as appropriate.
Setting Explanation
Vehicle Type Type of vehicle
Axle to Antenna Offset
The horizontal distance between the axle and the antenna.
Measure the distance accurately (within 3 inches). An
incorrect offset may cause poor steering performance.
Note –
Measure the offset distance as accurately as possible
(within 3"). An incorrect offset may cause poor steering
performance.
ll If the antenna is in front of the axle, enter a forward
distance.
Version 9.25, Revision B FM-1000 Integrated Display User Guide 199
