18 Operations Guidance pattern use
Straight guidance pattern
There are two ways to create a straight guidance
pattern:
l Create an AB Line: Define the start and end points.
l Create an A+ Line: Define a point on the line and the
heading direction.
AB line creation

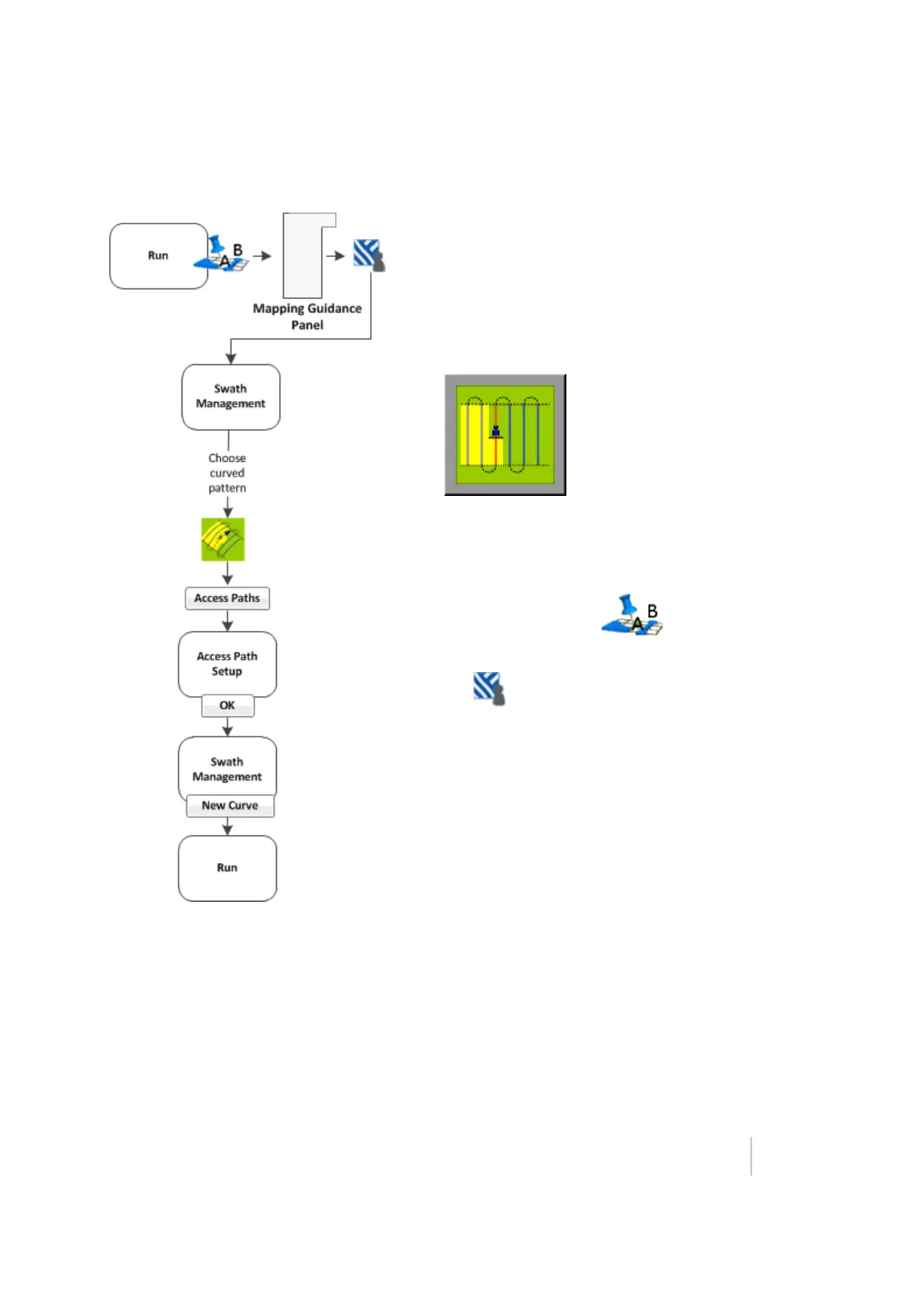

To create a straight AB line:
1.
At the Run screen, tap to open the
Mapping Guidance panel.
2.
Tap Swaths.
3. At the Swath Management screen, select the AB
pattern from the pattern list.
4. Enter an access path, if required. See Access paths
(page 372).
5. Tap New Straight. The Run screen displays.
6. To create the start point of the line, tap Set A.
7.
Drive to the end of the line.
Note – The end (B) point must be at least 50meters
(160feet) from the A point.
8. Tap Set B. The new AB line displays.
9. To extend the line, drive further along it and then tap Set B again.
10. Tap Done to indicate you have finished.
11.
The system automatically creates the remaining swaths. If you need to shift or skip a swath,
see:
Version 9.25, Revision B FM-1000 Integrated Display User Guide 361
