18 Operations Operation basics
Engage button
WARNING – Many large and sudden changes in satellite geometry caused by blocked satellites can cause
significant position shifts. If operating under these conditions, auto-guidance systems can react abruptly. To avoid
possible personal injury or damage to property under these conditions, disable the auto-guidance system and take
manual control of the vehicle until conditions have cleared.
The Engage button displays on the Run screen when you are using an automatic steering system
such as:
l Autopilot system operation (page 398)
l EZ-Pilot system operation (page 401)
l EZ-Steer system operation (page 404)

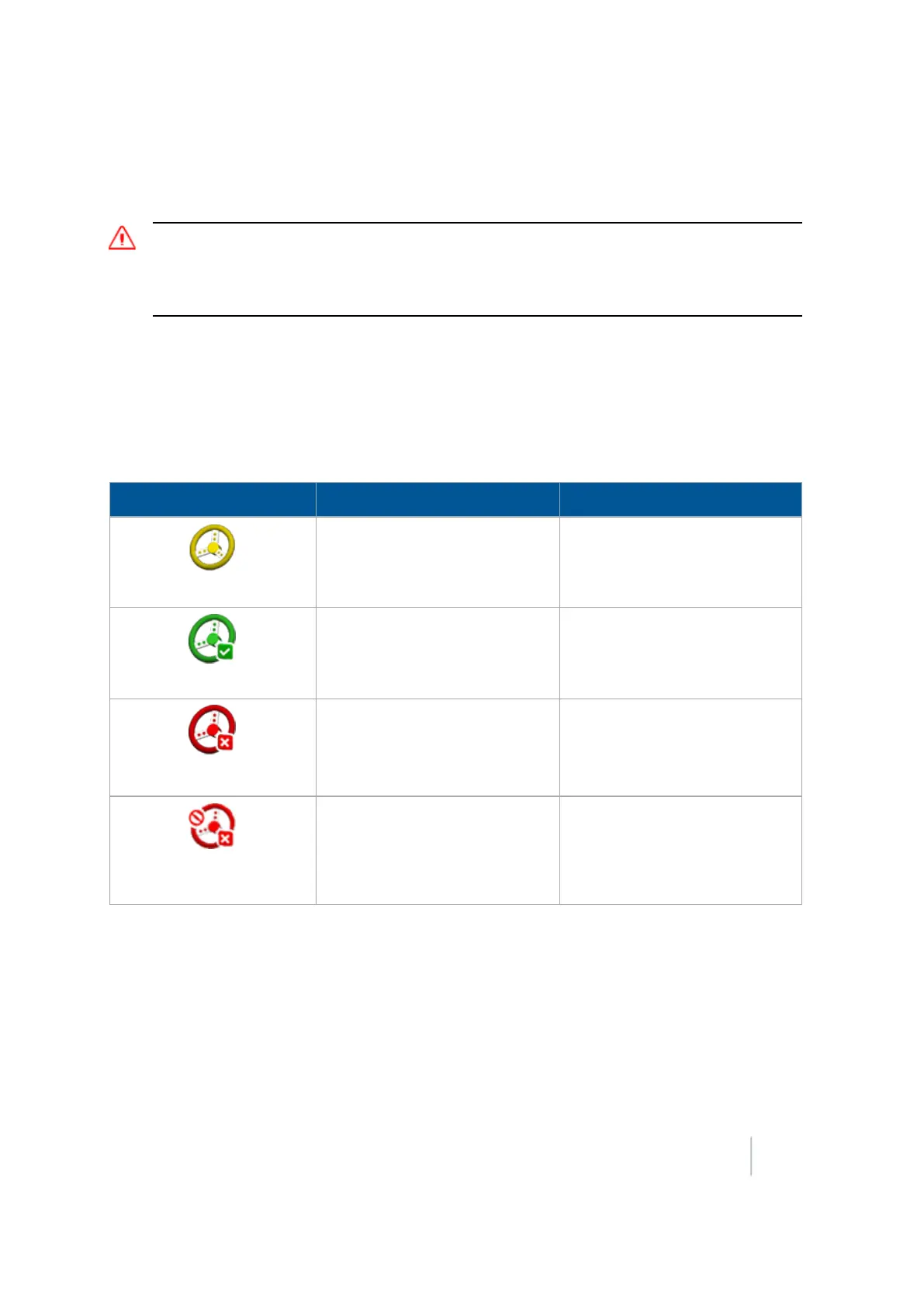

Indicator / Button Explanation Tap to...
Ready to Engage (yellow)
The vehicle is close enough to
the guidance line to engage on
it.
Engage on the guidance line.
Engaged (green)
The vehicle is engaged on the
guidance line.
Stop engaging on the guidance
line.
Not Ready to Engage (red)
The vehicle is not ready to
engage on the line because the
guidance line is too far from the
vehicle.
N/A. You cannot tap this button.
It is an indicator only.
Auto steering not allowed
(red)
Automatic steering is not
allowed due to how it has been
set up.
N/A. You cannot tap this button.
It is an indicator only.
Version 9.25, Revision B FM-1000 Integrated Display User Guide 351
