Guidance mapping controls
When you tap at the Run screen, the Mapping Guidance panel displays with controls for
features and guidance. The following controls may display in the Mapping Guidance panel,
depending on the function you are performing.

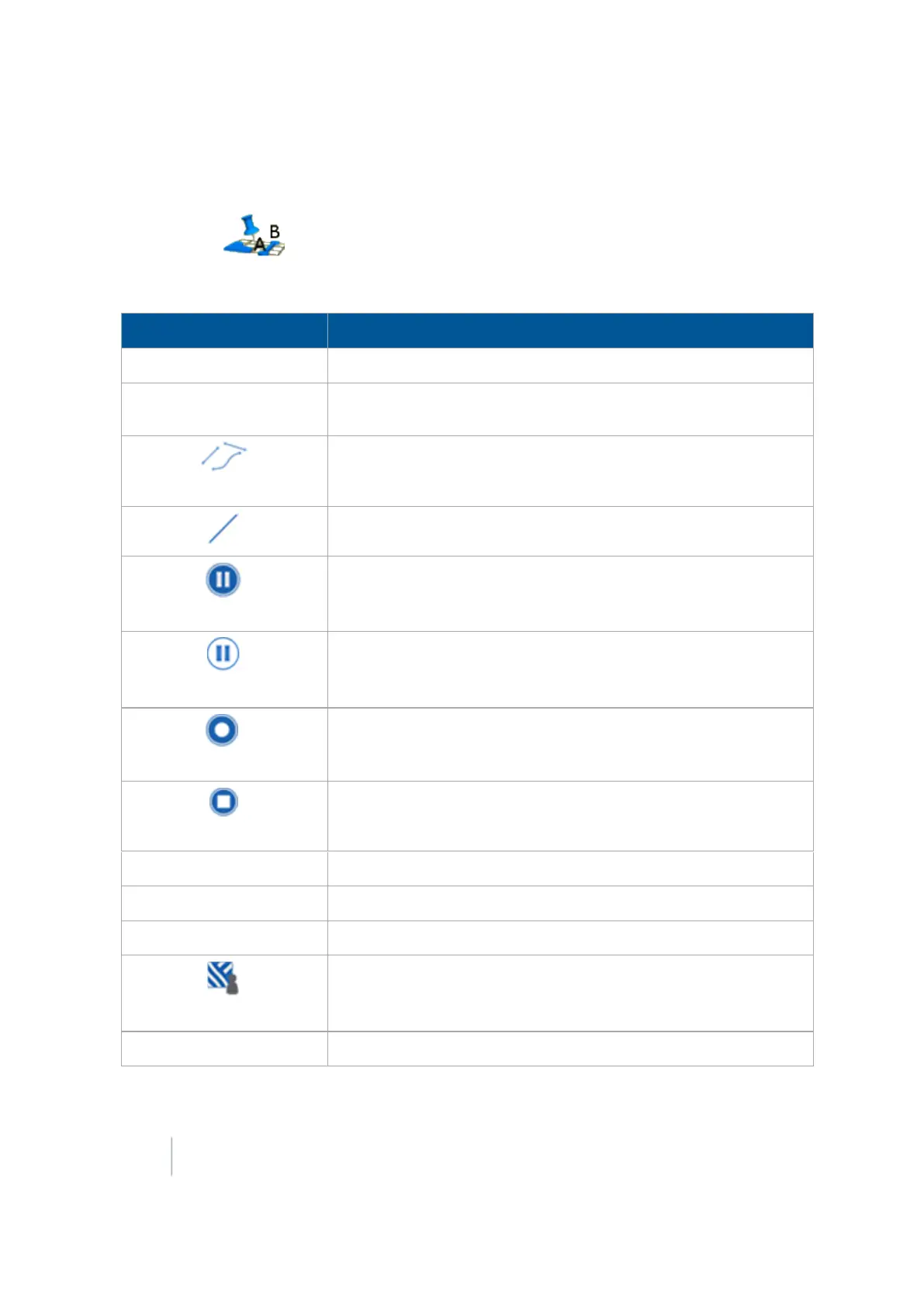

Button Tap to...
Done
Finish an A+ or an AB line.
Feature buttons
Create features in the field, such as boundary, rock, fence and so
on. See Field feature use (page 356).
Next
Load the next master line in the Swaths library with each tap.
Note –
The active master line name will be displayed on the
Run
screen.
Project a straight line in front of the on-screen vehicle.
Pause
Pause recording a path.
Resume
Stop pausing and resume recording the path.
Record
Record the path you are driving.
Stop Recording
Stop recording the path you are driving.
Set A
Set the A point of an AB line.
Set B
Set the B point of an ABline.
Skip
Skip a swath (page 379)
.
Swaths
Open the
Swaths Management screen.
Use A+
Set the point of an A+ line.
