Xerox VersaLink B7030 Service Manual

April 2017
5-119
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.50
Parts Lists
Launch Issue

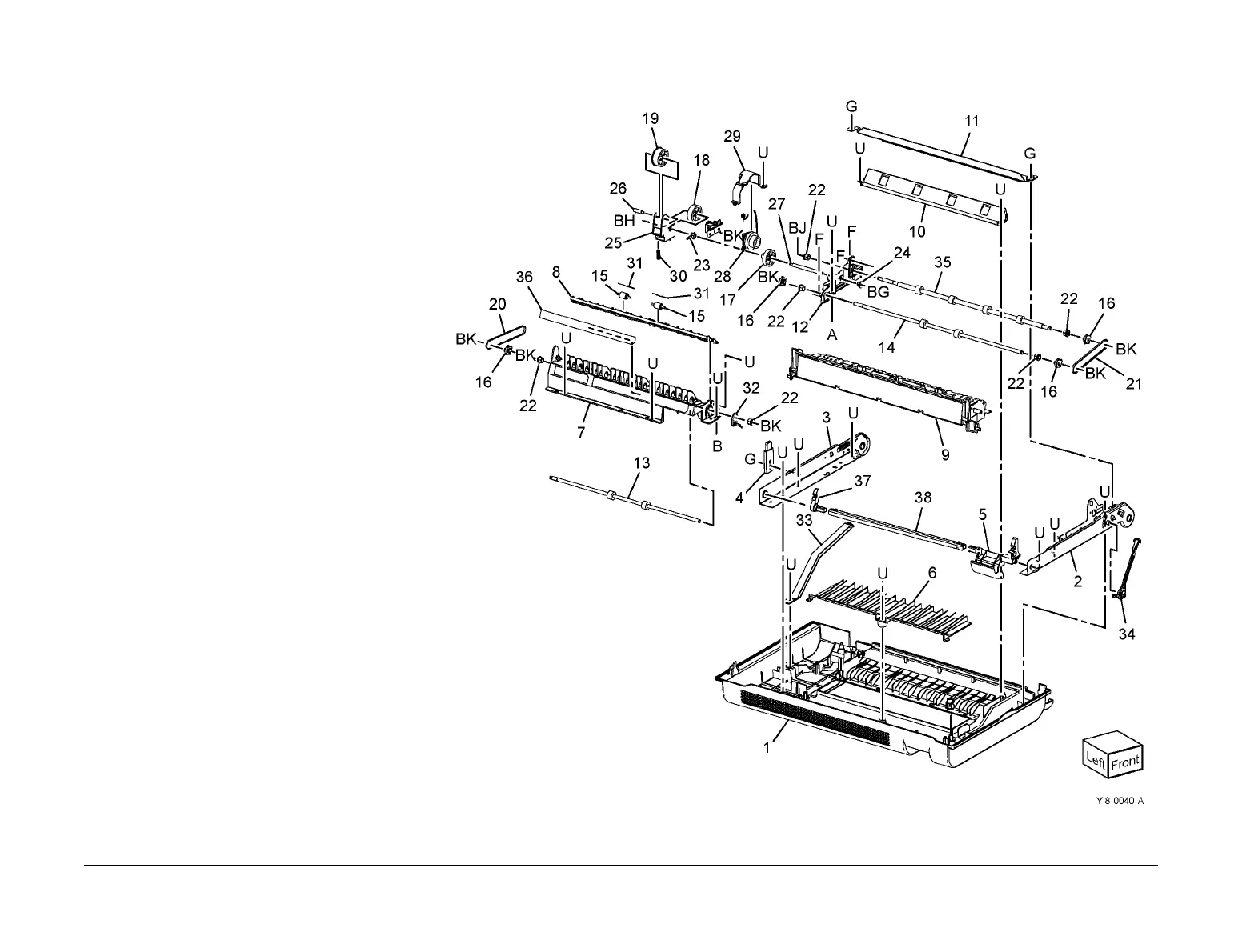

PL 80.50 Duplex LH Cover
Component
Item Part Description
1 – Left cover (Not Spared)
2 – Front frame (Not Spared)
3 – Rear frame (Not Spared)
4 – Fusing plate (Not Spared)
5 011E28351 Lever latch front mat
6 – Duplex cover chute (Not Spared)
7 – LH cover duplex chute (Not
Spared)
8 – LH low chute (Not Spared)
9 – TA pinch chute assembly (Not
Spared)
10 – Duplex out chute (Not Spared)
11 – Plate tie TA (Not Spared)
12 – Gear bracket (Not Spared)
13 – Duplex 1 roll (Not Spared)
14 – Duplex 2 roll (Not Spared)
15 – Duplex nip roll (Not Spared)
16 – Pulley (Not Spared)
17 – Gear (Not Spared)
18 – Gear (Not Spared)
19 – Swing gear (Not Spared)
20 – Belt (Not Spared)
21 – Belt (Not Spared)
22 – Bearing (Not Spared)
23 – Bearing (Not Spared)
24 – Bearing (Not Spared)
25 – Swing bracket (Not Spared)
26 – Swing shaft (Not Spared)
27 – Clutch shaft (Not Spared)
28 121K56560 Duplex clutch (CL77-003)
29 – Clutch cover (Not Spared)
30 – Spring (Not Spared)
31 – Pinch spring (Not Spared)
32 – Ground plate (Not Spared)
33 869E14461 LH rear support
34 868E48840 LH front support
35 – Duplex 3 roll (Not Spared)
36 – Label (Not Spared)
37 011E29140 Rear latch lever
38 – Plate latch (Not Spared)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
