April 2017
4-91
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.26, REP 12.27
Repairs and Adjustments
Launch Issue

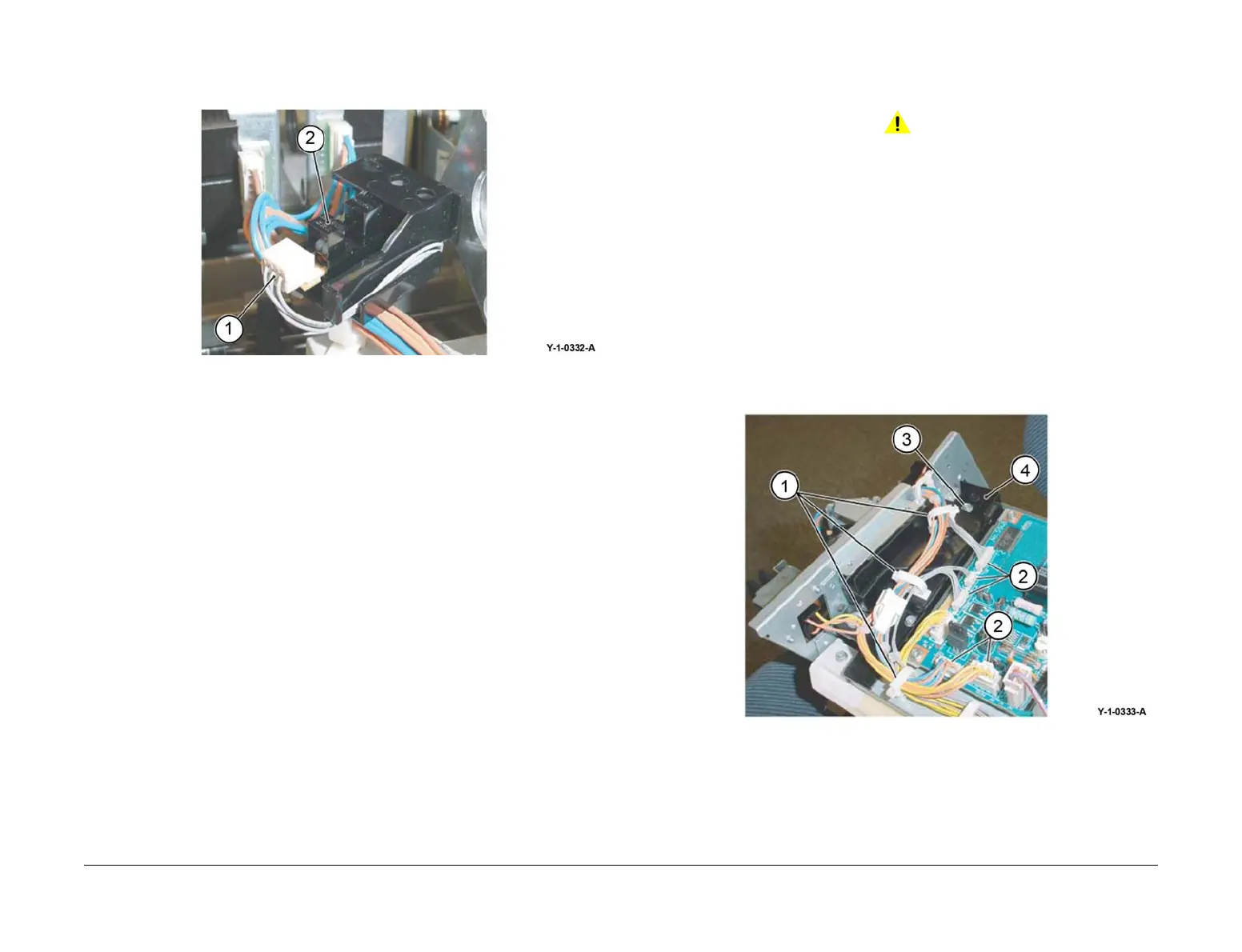

9. Remove the front tamper home sensor, Figure 4:
a. Disconnect the connector (1).
b. Remove the front tamper home sensor (2).
Figure 4 Front tamper home sensor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 12.27 Eject Home Sensor
Parts List on PL 12.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the front inner cover, PL 12.05 Item 6.
3. Remove the rear cover, PL 12.05 Item 14.
4. Turn over the integrated office finisher.
5. Remove the bottom cover, PL 12.06 Item 1.
6. Remove the connector bracket, Figure 1:
a. Release the harness from the three clamps (1).
b. Disconnect the connectors (2).
c. Remove two screws (3).
d. Remove the connector bracket (4).
Figure 1 Connector bracket removal
To Next Page
