Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 40.05
Launch Issue
Parts Lists

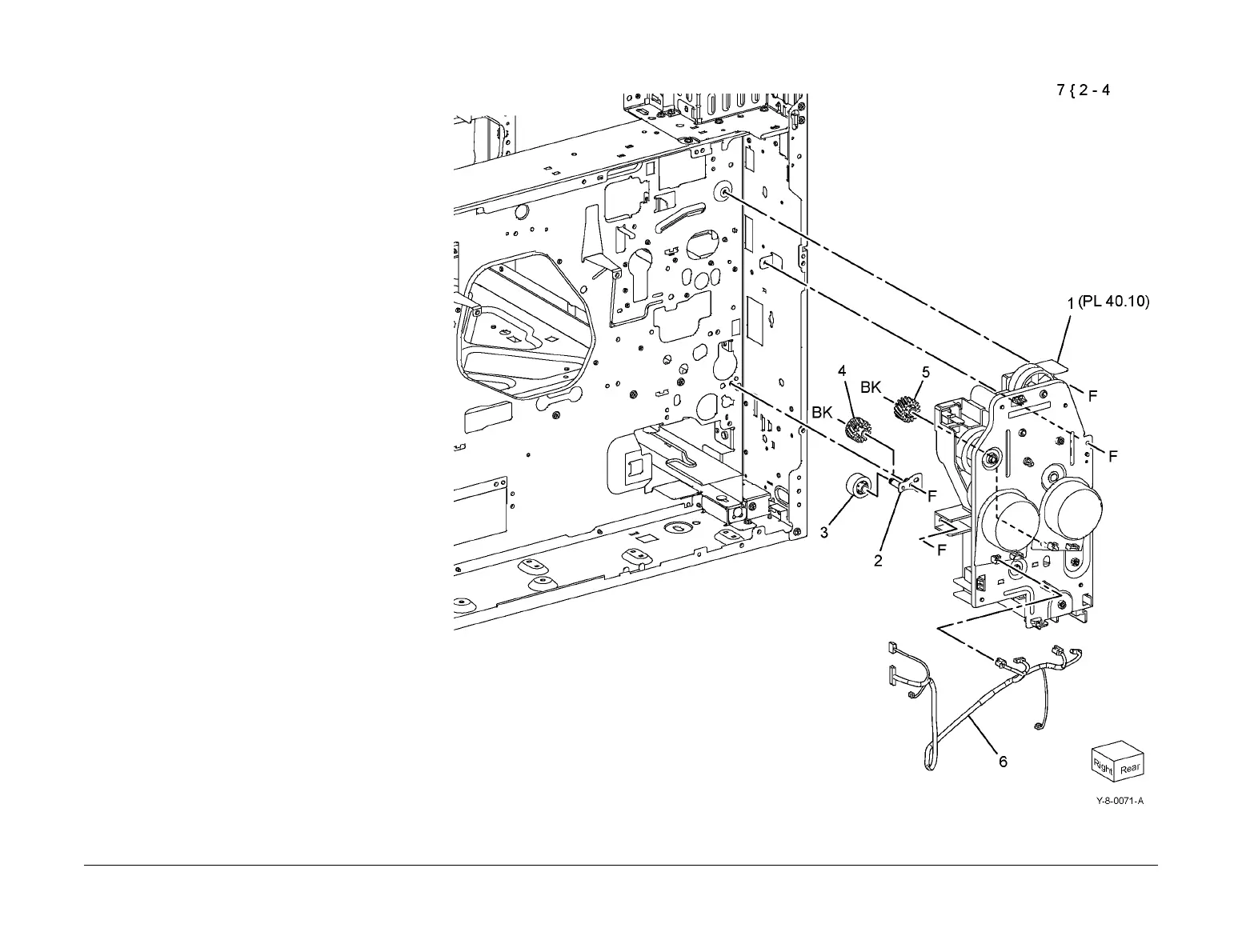

PL 40.05 Drive Assembly
Item Part Description
1 007K21172 Drive assembly (REP 40.1)
2 – Bracket assembly (P/O PL 40.05
Item 7)
3 – Bypass tray idle gear 1 (P/O PL
40.05 Item 7)
4 – Bypass tray idle gear 2 (P/O PL
40.05 Item 7)
5 – Bypass tray gear (Not Spared)
6 952K21310 Drive assembly harness
7 607K02460 Drive bracket kit
