April 2017
3-14
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQ15
Launch Issue
Imaqe Quality
IQ15 Regular Toner Contamination in the Process
Direction RAP
Regular, same pitch toner contamination in the process direction. Refer to Figure 1.
Ensure IQ1 Image Quality Entry RAP is performed before starting this RAP.

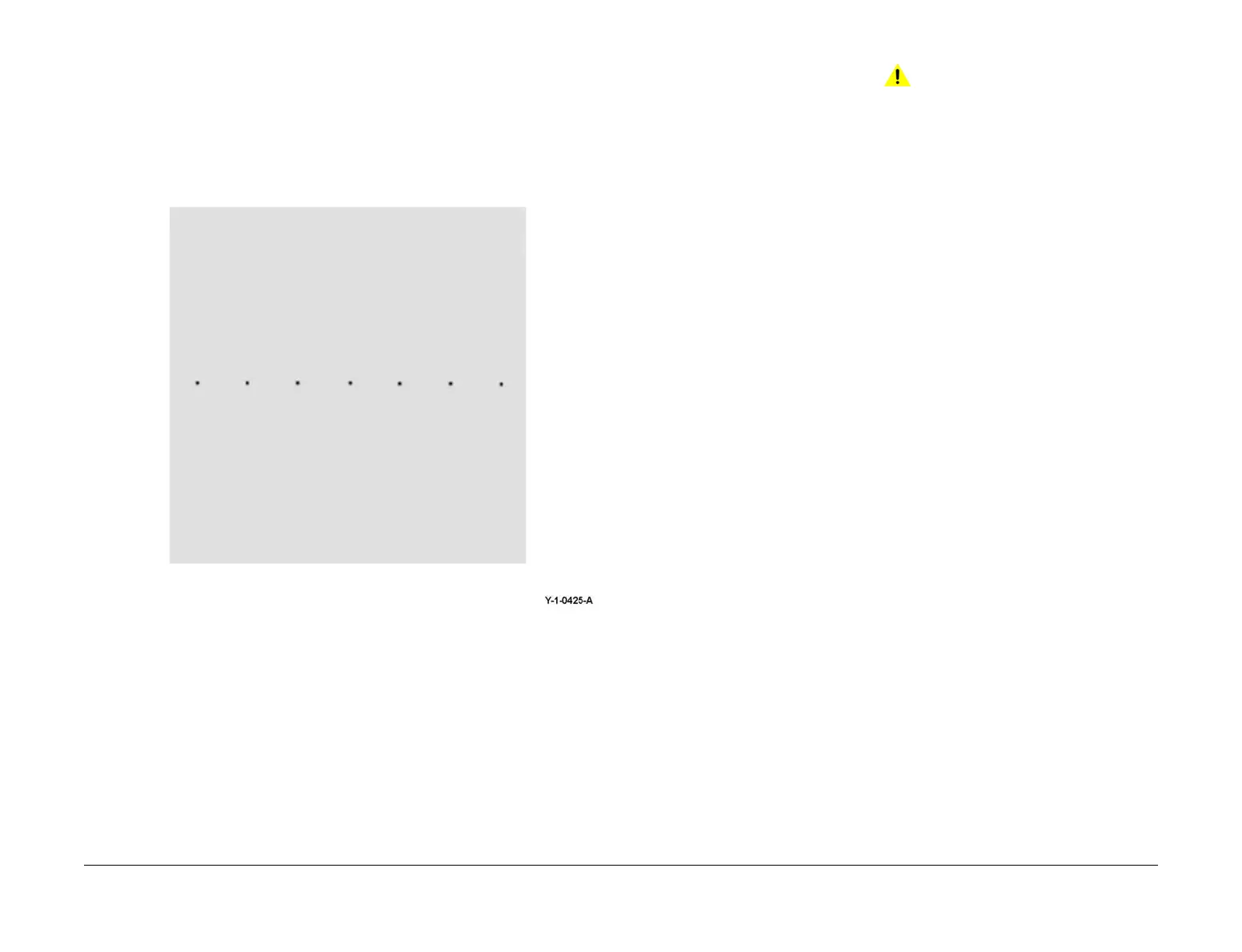

Figure 1 Example
Cause
1. 94.2mm (3.7 inches) pitch - scratch or foreign substance on the drum.
2. 31.8mm (1.2 inches) pitch - developer adhesion to the magnetic roll.
3. 37.7mm (1.5 inches) pitch - scratch or foreign substance on the BCR.
4. 82.5mm (3.2 inches) pitch - scratch or foreign substance on the heat roll.
5. 47.1mm (1.8 inches) pitch - contamination on the exit roll.
Action
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. For cause 1, clean the drum. If necessary, install a new drum cartridge, PL 90.20 Item 1.
2. For cause 2 and 3, install a new drum cartridge, PL 90.20 Item 1.
3. For cause 4, clean the heat roll. If necessary, install a new fuser, PL 10.05 Item 2.
4. For cause 5, clean the exit roll. If necessary, install a new fuser, PL 10.05 Item 2.
To Next Page
