Repairs and Adjustments
8. Disconnect the FFC LED cable assembly from the guide, Figure 5.

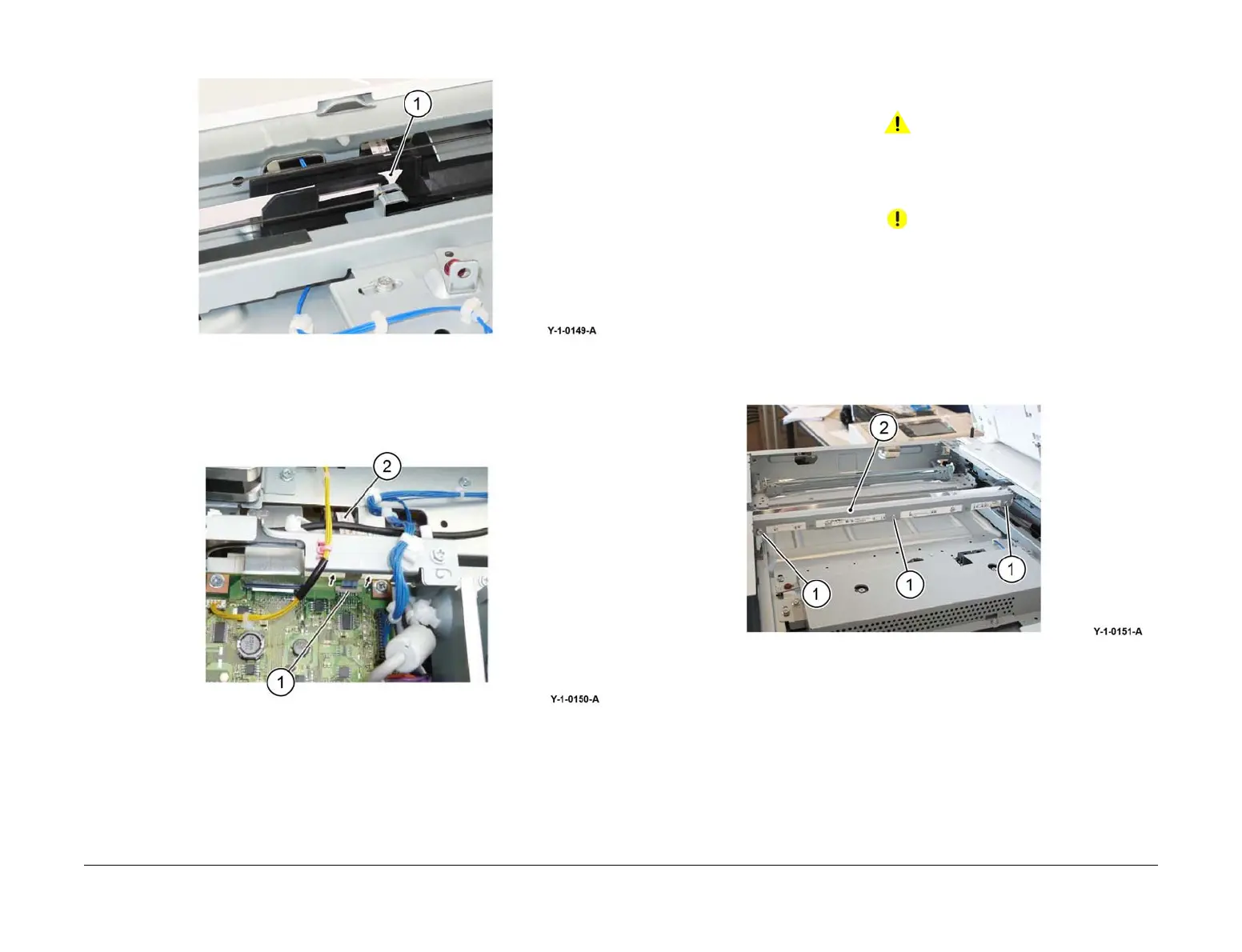

Figure 5 Cable assembly disconnection (2)
9. Disconnect the FFC LED cable assembly from the ESS chassis assembly, Figure 6:
a. Move the connector housing catch (1) in the direction of the arrow.
b. Disconnect the FFC LED cable assembly (2).
Figure 6 Cable assembly disconnection (3)
Replacement
1. The replacement is the reverse of the removal procedure.
2. Perform ADJ 60.1 Full/Half Rate Carriage Position Adjustment.
REP 60.6 Light Guide
Parts List on PL 60.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Do not touch the light guide with bare hands.
1. Remove the DADF, REP 5.1.
2. Remove the document glass, REP 60.1.
3. Move the full rate carriage to the cutouts in the frame.
4. Remove the LED bracket, Figure 1:
a. Remove three screws (1).
b. Remove the LED bracket (2).
Figure 1 LED bracket removal
