April 2017
5-91
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.30
Parts Lists
Launch Issue

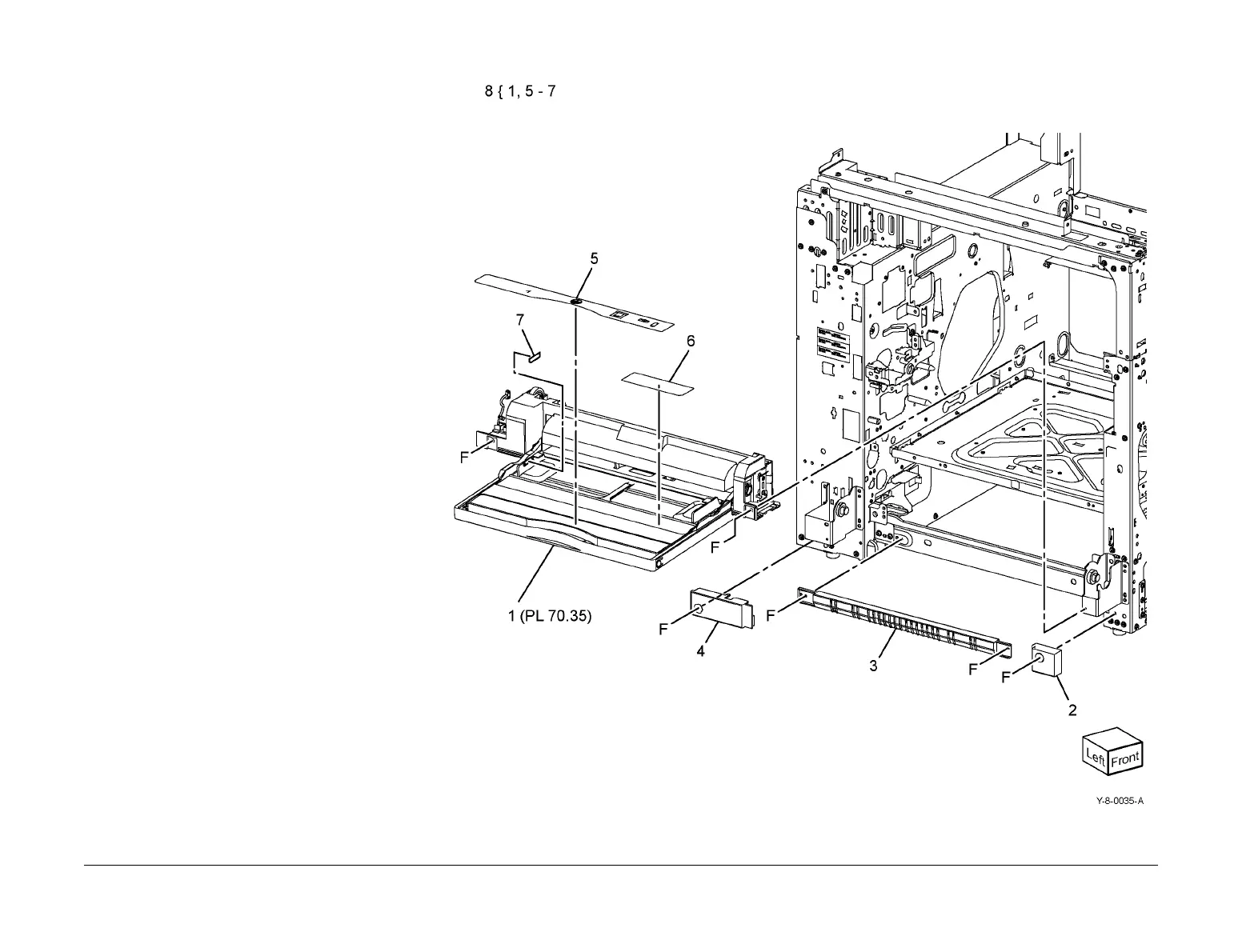

PL 70.30 Bypass Tray
Item Part Description
1 – Bypass tray (REF: PL 70.35) (REP
70.2)
2 – Bypass tray front cover (Not
Spared)
3 – TM exit chute (Not Spared)
4 – Bypass tray right cover (Not
Spared)
5 – Bypass tray instruction label (P/O
PL 70.30 Item 8)
6 – Bypass tray size label (P/O PL
70.30 Item 8)
7 – Max label (P/O PL 70.30 Item 8)
8 607K01961 Bypass tray kit
