Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.10, REP 5.11
Launch Issue
Repairs and Adjustments
Replacement
1. The replacement is the reverse of the removal procedure.
2. Install the new roll assemblies so that they rotate in a clockwise direction.
3. Ensure the feed/nudger roll assembly is installed to correctly align with the front and rear
set links (1), Figure 4.

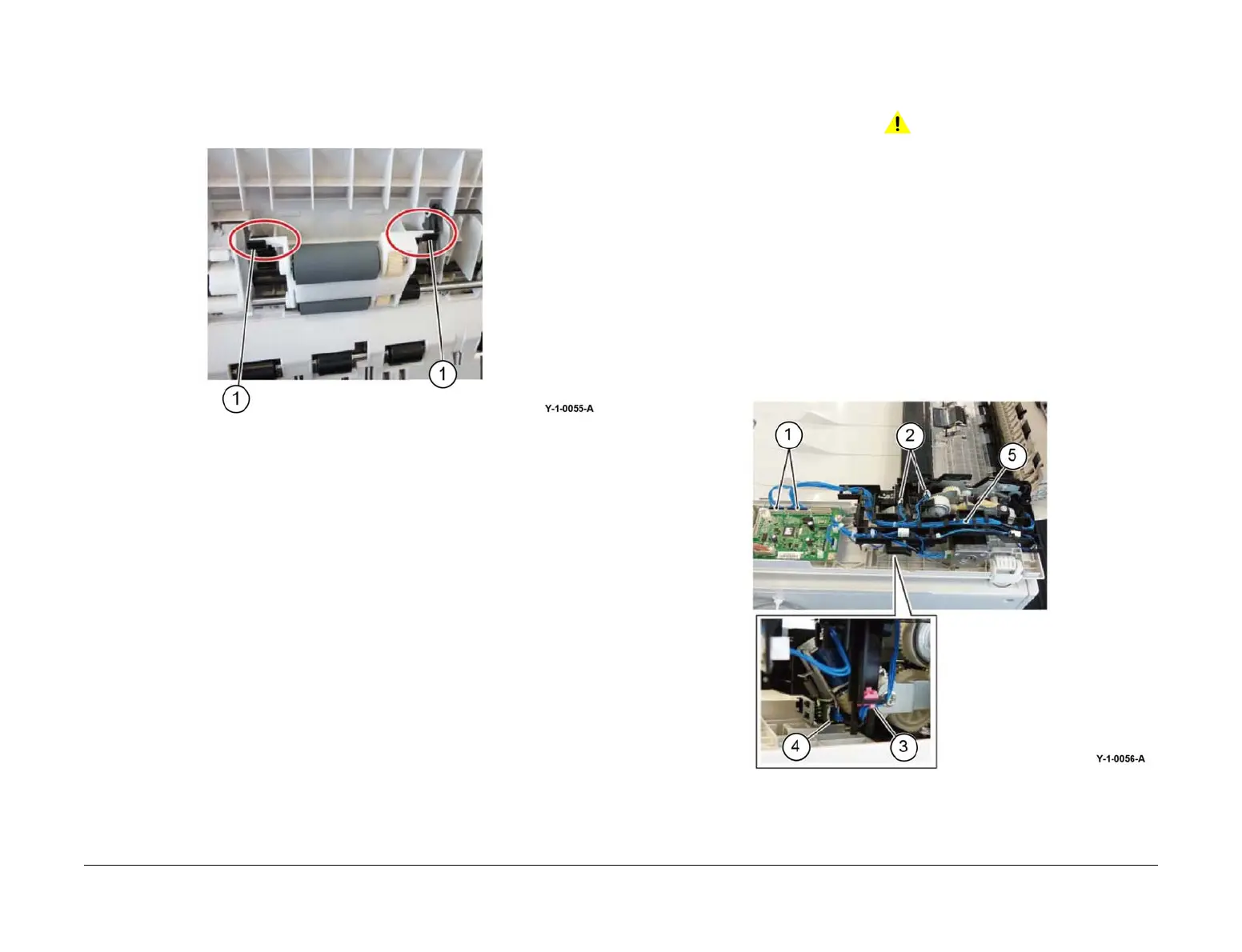

Figure 4 Set link alignment
4. If new feed roll assemblies are installed, enter dC135 HFSI Counter. Reset the HFSI
counter 955-806.
REP 5.11 Harness Guide and Wire Harness
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray, REP 5.14.
4. Remove the harness from the harness guide, Figure 1:
a. Disconnect two connectors (1).
b. Disconnect the sensor connectors (2).
c. Remove the harness retainer (3) from the guide.
d. Disconnect the sensor connector (4).
e. Remove the harness (5) from the harness guide.
Figure 1 Harness removal
