April 2017
5-117
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.40
Parts Lists
Launch Issue

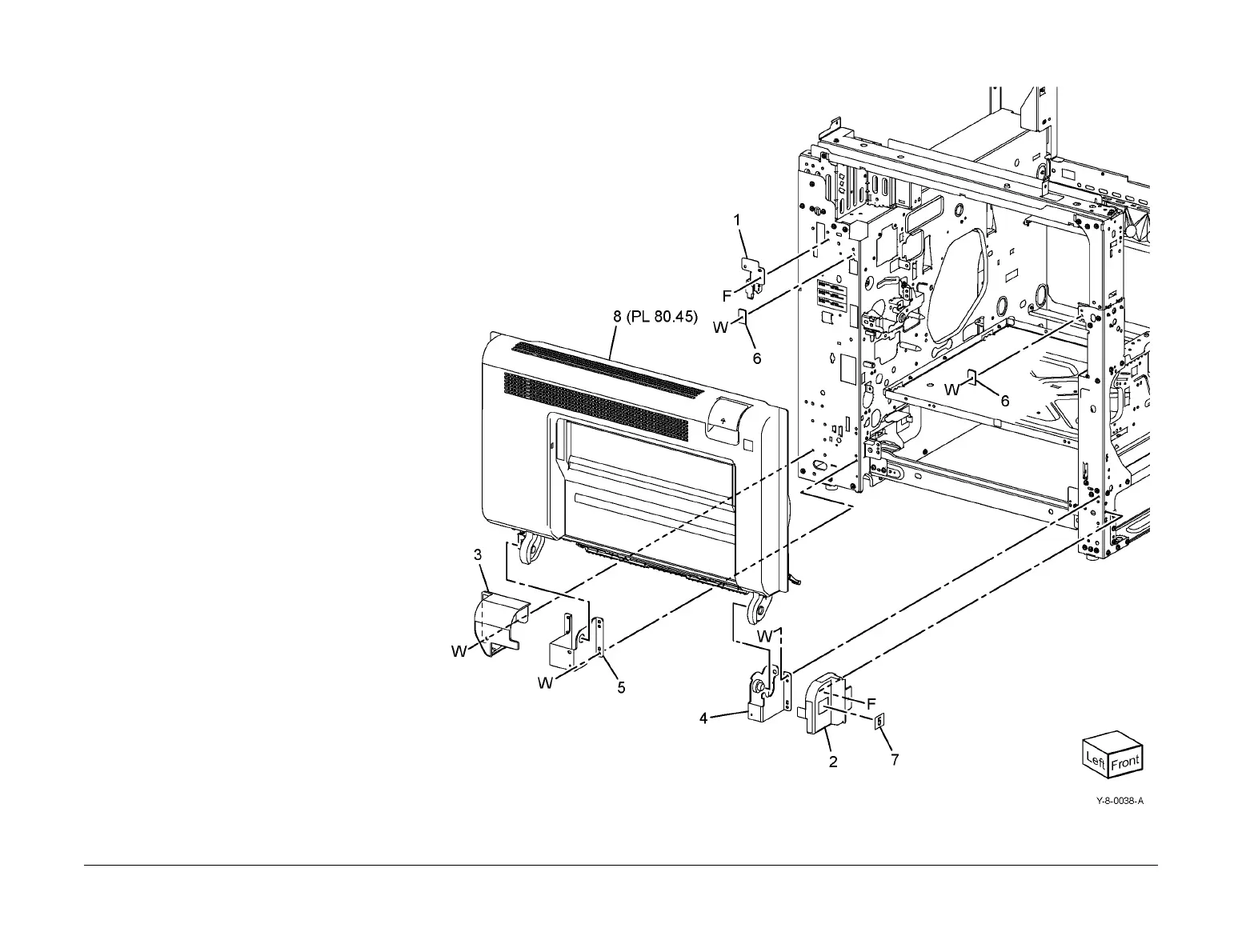

PL 80.40 LH Transport Components
Item Part Description
1 110K18072 Left hand high cover switch (S77-
302)
2 – Front hinge cover (Not Spared)
3 – Rear hinge cover (Not Spared)
4 – Bypass tray front frame assembly
(Not Spared)
5 – Bypass tray rear frame assembly
(Not Spared)
6 – Latch guide (Not Spared)
7 – Number label (5) (Not Spared)
8 859K05131 L/H cover (REP 80.18)
